G310 Rear CA3 Kit

The Rear Geared Bafang G310 Kit Cycle Analyst Based Conversion Kit, with a Lithium Battery, Phaserunner or Baserunner Z9 Controller, and PAS/Torque Sensor Options.

Full Product Information Page

Out of stock

SKU
KIT-G310_CA3
Customize G310 Rear CA3 Kit
CA3-WPx
CA3_MFSwitch for CA3-WPx

* Required Fields

Your Customization
Ready to Roll Kit based on Rear G310 Motor, Downtube Battery with Baserunner Controller, CA3 with PAS Options etc.
Summary

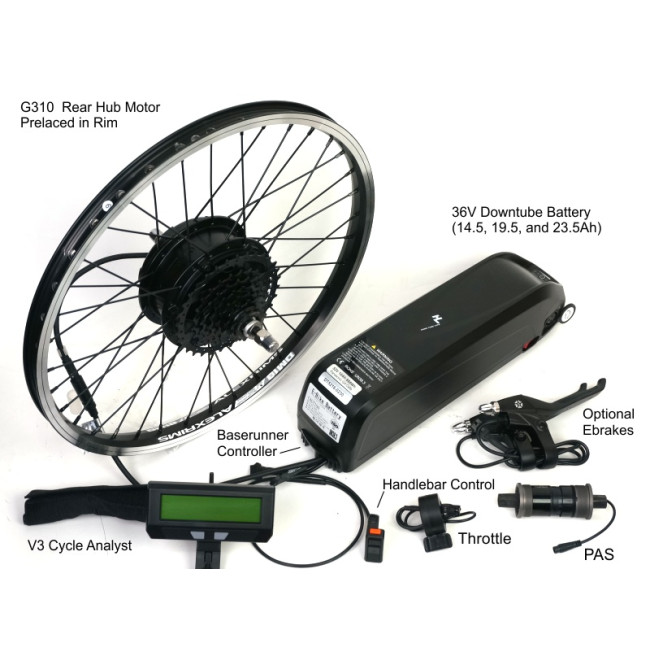

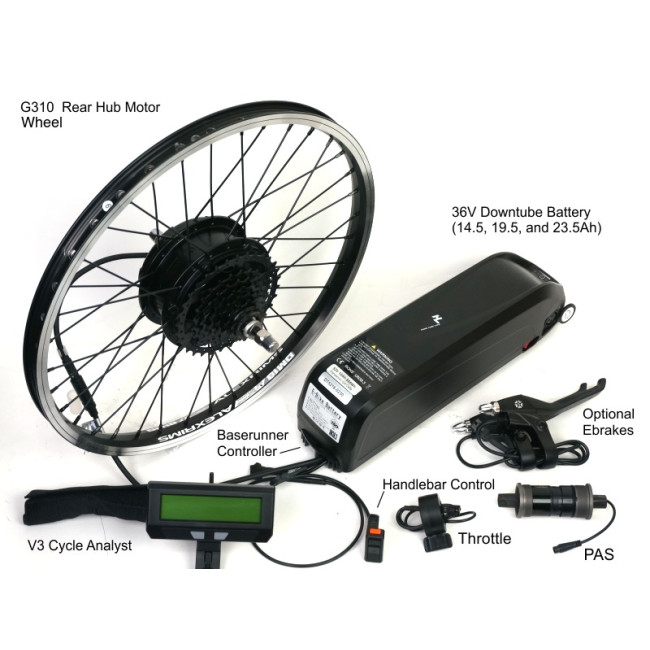

    The Rear Geared G310 CA3 conversion kit includes:

    • Baserunner Z9 motor controller
    • Downtube lithium battery
    • A CA3 with accessories and pedal assist systems.
    • This setup includes everything configured out of the box.

    For a full explanation of the various drop-down choices and a comparison of this package versus other motor options, see our Grin Kits Info Page

    For details on this hub in particular, see the G31X Geared Motor Info Page

    For details on the PAS/Torque sensor selection, see the Advanced PAS Kit Info Page

    Specifications
    7 Speed Cassette, 11-32 Tooth
    Country of Manufacture
    Taiwan
    Actual Weight (kg)
    0.226
    Cluster Type
    Freehub Cluster
    8 Speed Cassette, 11-32 Tooth
    Country of Manufacture
    Taiwan
    Actual Weight (kg)
    0.286
    Cluster Type
    Freehub Cluster
    9 Speed Cassette, 11-32 Tooth
    Country of Manufacture
    Taiwan
    Actual Weight (kg)
    0.364
    Cluster Type
    Freehub Cluster
    10 Speed Cassette, 11-32 Tooth
    Country of Manufacture
    Taiwan
    Actual Weight (kg)
    0.364
    Cluster Type
    Freehub Cluster
    36V 10Ah Bottle Battery
    Country of Manufacture
    China
    Full Charge Voltage
    42.0
    Capacity (Amp-Hours)
    9.8
    Internal Resistance (Ohms)
    0.19
    Cell Type
    Panasonic GA 10S x 4P
    Watt-hours at 1C Discharge
    345
    Dimensions (L x W x H, mm)
    295x78x78
    Actual Weight (kg)
    2.2
    Nominal Voltage
    36 Volt (10s)
    Battery Mount Location
    Frame Mount
    Connector(s)
    Anderson, ST3
    Battery Cable Length (cm)
    30
    36V 14.5Ah Downtube Battery
    Country of Manufacture
    China
    Full Charge Voltage
    42.0
    Capacity (Amp-Hours)
    14.5
    Cell Type
    Samsung INR21700-50G 10S x 3P
    Dimensions (L x W x H, mm)
    365x100x105
    Actual Weight (kg)
    3.15
    Nominal Voltage
    36 Volt (10s)
    Battery Mount Location
    Frame Mount
    Connector(s)
    Anderson, DT_4pinSpade, ST3
    Battery Cable Length (cm)
    30
    36V 19Ah Downtube Battery
    Country of Manufacture
    China
    Full Charge Voltage
    42.0
    Capacity (Amp-Hours)
    19.25
    Cell Type
    Samsung INR21700-50G 10S x 4P
    Dimensions (L x W x H, mm)
    365x95x100
    Actual Weight (kg)
    4.02
    Nominal Voltage
    36 Volt (10s)
    Battery Mount Location
    Frame Mount
    Connector(s)
    Anderson, DT_4pinSpade, ST3
    Battery Cable Length (cm)
    30
    36V 2A ST3 Charger
    Country of Manufacture
    China
    Actual Weight (kg)
    0.36
    Connector(s)
    ST3
    Charger Voltage
    36V (42.0V max)
    Charge Port Connector
    ST3
    36V 4A ST3 Charger
    Country of Manufacture
    China
    Actual Weight (kg)
    0.58
    Connector(s)
    ST3
    Charger Voltage
    36V (42.0V max)
    Charge Port Connector
    ST3
    Satiator 12-63V, 0-8A with ST3 Adapter
    Actual Weight (kg)
    1.06
    CA3-WPx
    Manufacturer
    Grin
    Country of Manufacture
    Canada
    Actual Weight (kg)
    0.3
    24 Pole PAS (Short 90cm Cable)
    Country of Manufacture
    China
    Actual Weight (kg)
    .06
    Connector(s)
    JST-SM
    PAS Poles
    24
    PAS Encoder Type
    2 Wire (Quadrature)
    Right Half Twist Throttle (50cm Cable)
    Country of Manufacture
    China
    Actual Weight (kg)
    .180
    3 Pin JST Cable Length (cm)
    50
    Left Half Twist Throttle (50cm Cable)
    Country of Manufacture
    China
    Actual Weight (kg)
    .180
    3 Pin JST Cable Length (cm)
    50
    Twist Throttle - Regular Cable 140cm
    Country of Manufacture
    Taiwan
    Actual Weight (kg)
    0.22
    3 Pin JST Cable Length (cm)
    140
    Dual Ebrake Levers (50cm Cable)
    Country of Manufacture
    China
    Actual Weight (kg)
    0.30
    3 Pin JST Cable Length (cm)
    47
