Grin All-Axle, Minimal Kit

Front Grin All Axle Hub Motor Kit for Quick Release and Thru Axle Forks. Minimal Package with Throttle Control.

Full Product Information Page

From USD$705.00

To USD$1,342.00 Regular Price USD$1,362.00

In stock

SKU
KIT-Grin_Min
Customize Grin All-Axle, Minimal Kit

* Required Fields

Your Customization
Grin All-Axle Motor Conversion Kit, Natural Silver
Grin All-Axle, Minimal Kit

In stock

USD$705.00

Summary
    GrinHub_SL
    Actual Weight (kg)
    3.95
    Manufacturer
    Grin Tech
    Motor Power Range (Watts)
    500-1000
    Motor KV (RPM / V)
    7.5
    Phase Resistance (Ohm)
    0.268
    Disk Brake Compatible
    Yes
    Spoke Holes
    32 Hole
    Flange Spoke Diameter (mm)
    214
    Magnetic Pole Pairs (Phaserunner)
    23
    Hysteresis Losses (N-m)
    0.6
    Eddie Losses (N-m / rad/sec)
    0.005
    GrinHub_SL_Bk
    Actual Weight (kg)
    3.95
    Manufacturer
    Grin Tech
    Motor Power Range (Watts)
    500-1000
    Motor KV (RPM / V)
    7.5
    Phase Resistance (Ohm)
    0.268
    Disk Brake Compatible
    Yes
    Spoke Holes
    32 Hole
    Flange Spoke Diameter (mm)
    214
    Magnetic Pole Pairs (Phaserunner)
    23
    Hysteresis Losses (N-m)
    0.6
    Eddie Losses (N-m / rad/sec)
    0.005
    GrinHub_Std
    Actual Weight (kg)
    3.95
    Manufacturer
    Grin Tech
    Motor Power Range (Watts)
    500-1000
    Motor KV (RPM / V)
    10.0
    Phase Resistance (Ohm)
    0.145
    Disk Brake Compatible
    Yes
    Spoke Holes
    32 Hole
    Flange Spoke Diameter (mm)
    214
    Magnetic Pole Pairs (Phaserunner)
    23
    Hysteresis Losses (N-m)
    0.45
    Eddie Losses (N-m / rad/sec)
    0.005
    GrinHub_Std_Bk
    Actual Weight (kg)
    3.95
    Manufacturer
    Grin Tech
    Motor Power Range (Watts)
    500-1000
    Motor KV (RPM / V)
    10.0
    Phase Resistance (Ohm)
    0.145
    Disk Brake Compatible
    Yes
    Spoke Holes
    32 Hole
    Flange Spoke Diameter (mm)
    214
    Magnetic Pole Pairs (Phaserunner)
    23
    Hysteresis Losses (N-m)
    0.45
    Eddie Losses (N-m / rad/sec)
    0.005
    GrinHub_Fst
    Actual Weight (kg)
    4.05
    ETA
    Jan. 30, 2018
    Manufacturer
    Grin Tech
    Motor Power Range (Watts)
    500-1000
    Motor KV (RPM / V)
    12.0
    Phase Resistance (Ohm)
    0.10
    Disk Brake Compatible
    Yes
    Spoke Holes
    32 Hole
    Flange Spoke Diameter (mm)
    214
    Magnetic Pole Pairs (Phaserunner)
    23
    Hysteresis Losses (N-m)
    0.45
    Eddie Losses (N-m / rad/sec)
    0.005
    GrinHub_Fst_Bk
    Actual Weight (kg)
    4.05
    ETA
    Jan. 30, 2018
    Manufacturer
    Grin Tech
    Motor Power Range (Watts)
    500-1000
    Motor KV (RPM / V)
    12.0
    Phase Resistance (Ohm)
    0.10
    Disk Brake Compatible
    Yes
    Spoke Holes
    32 Hole
    Flange Spoke Diameter (mm)
    214
    Magnetic Pole Pairs (Phaserunner)
    23
    Hysteresis Losses (N-m)
    0.45
    Eddie Losses (N-m / rad/sec)
    0.005
    Rim20_DM18_32H
    Actual Weight (kg)
    0.38
    Rim Width (mm)
    24
    Spoke Holes
    32 Hole
    Nominal Rim Size
    20" (ISO 406)
    Rim Brake Compatible
    Yes
    Valve Type
    Schrader
    Rim20_Alex_32H
    Actual Weight (kg)
    0.48
    Rim Width (mm)
    32
    Spoke Holes
    32 Hole
    Nominal Rim Size
    20" (ISO 406)
    Rim ERD
    390
    Rim Brake Compatible
    Yes
    Valve Type
    Schrader
    Rim20_Fat_32H
    Actual Weight (kg)
    0.82
    Rim Width (mm)
    65
    Spoke Holes
    32 Hole
    Nominal Rim Size
    20" (ISO 406)
    Rim ERD
    384
    Rim Brake Compatible
    No
    Valve Type
    Schrader
    Rim24_Alex_32H
    Actual Weight (kg)
    0.64
    Rim Width (mm)
    32
    Spoke Holes
    32 Hole
    Nominal Rim Size
    24" (ISO 507)
    Rim ERD
    494
    Rim Brake Compatible
    Yes
    Valve Type
    Schrader
    Rim24_Fat_32H
    Actual Weight (kg)
    1.02
    Rim Width (mm)
    65
    Spoke Holes
    32 Hole
    Nominal Rim Size
    24" (ISO 507)
    Rim ERD
    485
    Rim Brake Compatible
    No
    Valve Type
    Schrader
    Rim26_DM21_32H
    Actual Weight (kg)
    0.58
    Rim Width (mm)
    26
    Spoke Holes
    32 Hole
    Nominal Rim Size
    26" (ISO 559)
    Rim ERD
    536
    Rim Brake Compatible
    Yes
    Valve Type
    Presta (can be drilled for Shrrader)
    Rim26_DM18_32H
    Actual Weight (kg)
    0.53
    Rim Width (mm)
    24
    Spoke Holes
    32 Hole
    Nominal Rim Size
    26" (ISO 559)
    Rim ERD
    543
    Rim Brake Compatible
    Yes
    Valve Type
    Schrader
    Rim26_MD23_32H
    Actual Weight (kg)
    0.48
    Rim Width (mm)
    28.4
    Spoke Holes
    32 Hole
    Nominal Rim Size
    26" (ISO 559)
    Rim ERD
    538
    Rim Brake Compatible
    No
    Rim26_MTX33_32H
    Actual Weight (kg)
    .66
    Rim Width (mm)
    33.5
    Spoke Holes
    32 Hole
    Nominal Rim Size
    26" (ISO 559)
    Rim ERD
    534
    Rim Brake Compatible
    No
    Rim26_MTX39_32H
    Actual Weight (kg)
    .66
    Rim Width (mm)
    33.5
    Spoke Holes
    32 Hole
    Nominal Rim Size
    26" (ISO 559)
    Rim ERD
    525
    Rim Brake Compatible
    No
    Rim26_MD35_32H
    Actual Weight (kg)
    0.48
    Rim Width (mm)
    35.00
    Spoke Holes
    32 Hole
    Nominal Rim Size
    26" (ISO 559)
    Rim ERD
    542.4
    Rim Brake Compatible
    No
    Rim26_Alex_32H
    Actual Weight (kg)
    0.76
    Rim Width (mm)
    32
    Spoke Holes
    32 Hole
    Nominal Rim Size
    26" (ISO 559)
    Rim ERD
    544
    Rim Brake Compatible
    Yes
    Valve Type
    Schrader
    Rim26_Fat_32H
    Actual Weight (kg)
    1.06
    Rim Width (mm)
    65
    Spoke Holes
    32 Hole
    Nominal Rim Size
    26" (ISO 559)
    Rim ERD
    537
    Rim Brake Compatible
    No
    Valve Type
    Schrader
    Rim275_Volar3_32H
    Actual Weight (kg)
    0.53
    Rim Width (mm)
    35.5
    Spoke Holes
    32 Hole
    Nominal Rim Size
    650B (ISO 584)
    Rim ERD
    559
    Rim Brake Compatible
    No
    Rim275_Alex_32H
    Actual Weight (kg)
    0.76
    Rim Width (mm)
    32
    Spoke Holes
    32 Hole
    Nominal Rim Size
    650B (ISO 584)
    Rim ERD
    565
    Rim Brake Compatible
    Yes
    Valve Type
    Schrader
    Rim700_MD23_32H
    Actual Weight (kg)
    0.60
    Rim Width (mm)
    28.4
    Spoke Holes
    32 Hole
    Nominal Rim Size
    700C (ISO 622)
    Rim ERD
    601
    Rim Brake Compatible
    No
    Rim700_Volar3_32H
    Actual Weight (kg)
    0.56
    Rim Width (mm)
    35.5
    Spoke Holes
    32 Hole
    Nominal Rim Size
    700C (ISO 622)
    Rim ERD
    597
    Rim Brake Compatible
    No
    Rim700_DM18_32H
    Actual Weight (kg)
    0.6
    Rim Width (mm)
    24
    Spoke Holes
    32 Hole
    Nominal Rim Size
    700C (ISO 622)
    Rim ERD
    607
    Rim Brake Compatible
    Yes
    Valve Type
    Schrader
    Rim700_MD30_32H
    Actual Weight (kg)
    0.60
    Rim Width (mm)
    30.00
    Spoke Holes
    32 Hole
    Nominal Rim Size
    700C (ISO 622)
    Rim ERD
    596.6
    Rim Brake Compatible
    No
    Rim700_Alex
    Actual Weight (kg)
    0.80
    Rim Width (mm)
    32
    Spoke Holes
    36 Hole
    Nominal Rim Size
    700C (ISO 622)
    Rim ERD
    606
    Rim Brake Compatible
    Yes
    Valve Type
    Schrader
    C4825-L10
    Dimensions (L x W x H, mm)
    110 x 71 x 34
    Actual Weight (kg)
    0.4900
    Max Battery Amps (A)
    25
    C7240-L10
    Dimensions (L x W x H, mm)
    154 x 87 x 46
    Actual Weight (kg)
    0.6600
    Max Battery Amps (A)
    40
    Baserunner_L10
    ETA
    Jul. 14, 2021
    Dimensions (L x W x H, mm)
    90 x 55 x 15
    Actual Weight (kg)
    0.18
    Max Battery Amps (A)
    40
    Phaserunner_L10
    Dimensions (L x W x H, mm)
    99 x 40 x 34
    Actual Weight (kg)
    0.26
    Max Battery Amps (A)
    50
    Phaserunner_L10_Bk
    ETA
    Jun. 9, 2021
    Dimensions (L x W x H, mm)
    99 x 40 x 34
    Actual Weight (kg)
    0.26
    Max Battery Amps (A)
    50
    CA-DP
    Actual Weight (kg)
    0.3
    More Information

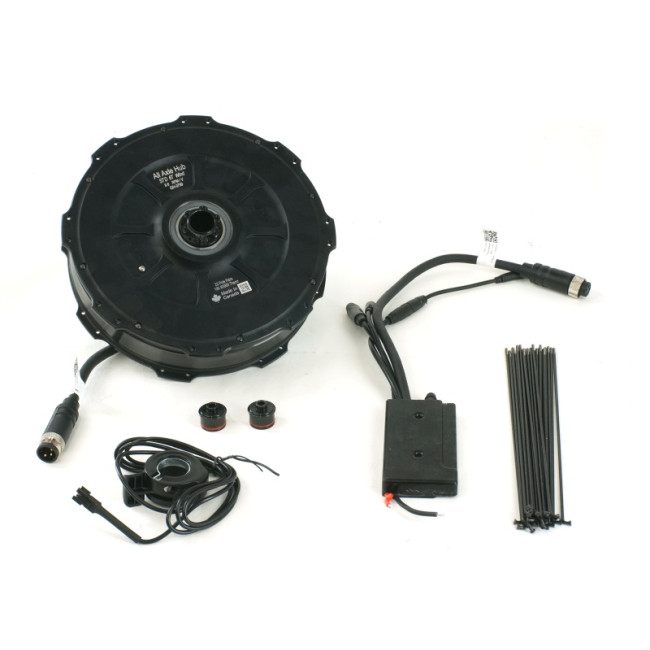

    Conversion kit based around the Grin All-Axle direct drive hub motor for basic throttle control without PAS. Supports quick release forks, 15mm x 100mm thru axle, and 20mm x 110mm thru axle systems. Same power as a 9C+ motor but 30 % lighter at only 4.0 kg. Includes integrated torque arm so there are no spreading forces on the dropouts.
