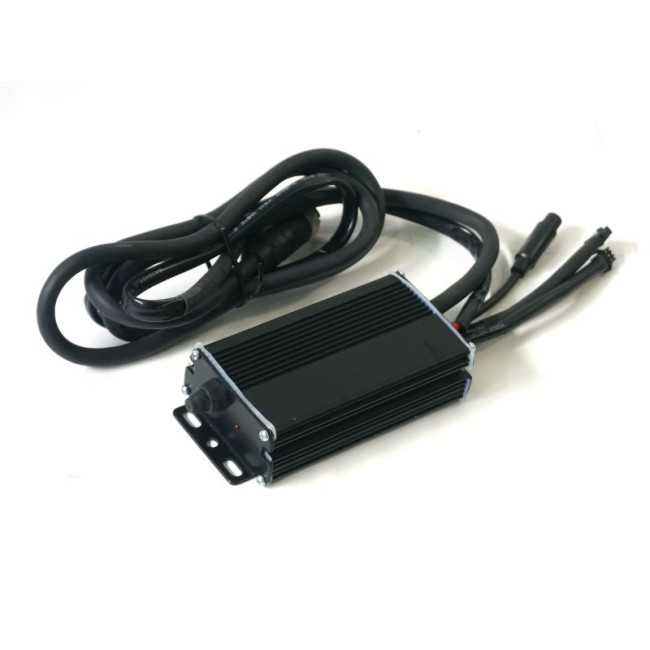

Grinfineon Controller,48V25A,WP/L10
36-52V, 25A Sinewave Controller with ON/OFF switch, Proportional Regen. New Model with Waterproof L1019 Connector for Motor Plug and WP8 Cycle Analyst Connector. For direct-drive motors only, does not work well with high power geared hubs like the GMAC or eZee.
SKU
C-C4825-L10
25A Sinweave Grinfineon Controller
Features include:
- Wide Input Voltage Range (27-58V)
- Operates both Sensored and Sensorless
- Quiet Sinusdoial Output when Sensored
- Sensorless up to 28000 eRPM, Geared Motor Compatible
- Fully Proportional Regenerative Braking from 0-0.8V Throttle Signal
- FWD/REV Input Wire
- Waterproof L1019 Plug with Phase, Hall, Speed, and Temperature Signals
- Includes Pass-Thru of Motor Temperature Signal to 2-pin JST for CA3
- Integrated ON/OFF Toggle Switch
- Performance MOSFETs (IRFB4110 or better)
- V2 and V3 Cycle Analyst Compatibility
- Waterproof Gasket
For more information please see the Grinfineon controller page.
| Country of Manufacture | China |
|---|---|
| Manufacturer | Mr. Ji |
| Dimensions (L x W x H, mm) | 110 x 71 x 34 |
| Actual Weight (kg) | 0.4900 |
| Max Regen Voltage (V) | 58 |
| Max Battery Amps (A) | 25 |
| Max Phase Amps (A) | 55 |
| Battery Range (V) | 36V - 52V Nominal ( max regen of 58V) |
| Low Voltage Cutoff (V) | 27 |
| MOSFETs | 6 x IRFB4110 |
| Control Chip | XCKJ 3232C |
| Connector(s) | Anderson, HiGo 0812(WP8), JST-SM, L1019 |
