Crystalyte H Front Ready-to-Roll Kit

Discontinued Kit - Replaced by FH212.

Crystalyte Front H Series Ready-to-Roll Direct Drive Front Motor Kit, with Downtube Battery, Baserunner Controller, V3 Cycle Analyst and PAS/Torque Sensor Options.

Out of stock

SKU

KIT-H35F_RTR

Customize Crystalyte H Front Ready-to-Roll Kit

Motor Winding Speed

M3525F - Out of Stock -

Include a Wheel Build?

Spoke Colour

Rim for DD Hub

Include Disk Rotor?

Battery Choice (36-52V)

Charger Option (Must match voltage)

V3 Cycle Analyst

CA3-WPx

CA Mounting Bracket Style

Motor Extension

L10 Extension Cable (60cm)

Include Auxiliary Input and Power Switch

CA3_MFSwitch for CA3-WPx

Throttle Style

Pedal Sensor Type

Front Torque Arm

Ebrakes for Regen

Inject Motor with Statorade Before Shipping?

* Required Fields

Your Customization

Ready to Roll Kit with 3540F Direct Drive Rear Hub Motor

Summary

Additional Information

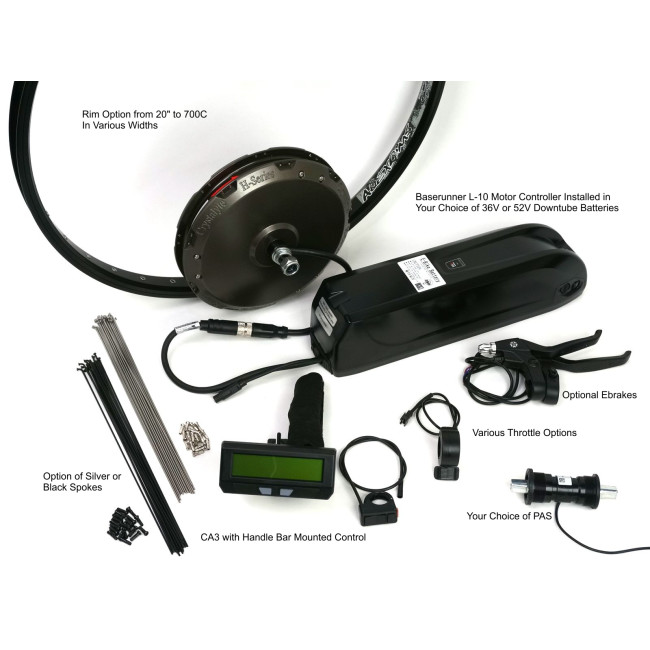

Crystalyte Front 'H' series UFO motor kit with downtube battery and integrated Baserunner_L10 motor controller. Motors are all stocked unlaced, and feature 0.35mm laminations, a Statorade injection port, and the L10 connector with internal thermistor. For a hand built wheel, please select the rim, spokes, and wheel lacing labour items as well, and expect a 3-4 day additional wheel building delay. Kit includes various PAS or Torque Sensor Options for the V3 Cycle Analyst

For a full explanation of the various drop-down choices and a comparison of this package versus other motor options, see our Grin Kits Info Page

For details on the PAS/Torque sensor selection, see the Advanced PAS Kit Info Page

Specifications

No selected items have relevant specifications

M3525F

Actual Weight (kg)

6.9

Motor MFG

Crystalyte

Motor Power Range (Watts)

600-1200

Motor KV (RPM / V)

7.1

Phase Resistance (Ohm)

0.225

Disk Brake Compatible

Yes

Connector(s)

Anderson, JST-SM

Thermistor Style

10K NTC, Beta ~3900

Axle Length (O.L.D.)

100

Axle Threads

1/2" x 20 tpi

Spoke Holes

36 Hole

Motor Type

Direct Drive

Flange Spoke Diameter (mm)

232

Magnetic Pole Pairs (Phaserunner)

Hysteresis Losses (N-m)

0.77

Eddie Losses (N-m / rad/sec)

0.0185

Rim16_ZAC19

Actual Weight (kg)

0.6

Rim Width (mm)

Spoke Holes

36 Hole

Nominal Rim Size

16" (ISO 349)

Rim ERD

332

Rim Brake Compatible

Yes

Valve Type

Presta, Schrader

Rim20_ZAC19

Actual Weight (kg)

0.32

Rim Width (mm)

Spoke Holes

36 Hole

Nominal Rim Size

20" (ISO 406)

Rim ERD

389

Rim Brake Compatible

Yes

Valve Type

Presta, Schrader

Rim20J31

Actual Weight (kg)

0.56

Rim Width (mm)

Spoke Holes

36 Hole

Nominal Rim Size

20" (ISO 406)

Rim ERD

375

Rim Brake Compatible

Valve Type

Schrader

Rim20_DM30

Actual Weight (kg)

0.42

Rim Width (mm)

Spoke Holes

36 Hole

Nominal Rim Size

20" (ISO 406)

Rim ERD

394

Rim Brake Compatible

Yes

Valve Type

Presta, Schrader

Rim20_Fat

Actual Weight (kg)

0.82

Rim Width (mm)

Spoke Holes

36 Hole

Nominal Rim Size

20" (ISO 406)

Rim ERD

384

Rim Brake Compatible

Valve Type

Schrader

Rim24J31

Actual Weight (kg)

0.7000

Rim Width (mm)

Spoke Holes

36 Hole

Nominal Rim Size

24" (ISO 507)

Rim ERD

477

Rim Brake Compatible

Valve Type

Schrader

Rim24_Fat

Actual Weight (kg)

1.02

Rim Width (mm)

Spoke Holes

36 Hole

Nominal Rim Size

24" (ISO 507)

Rim ERD

485

Rim Brake Compatible

Valve Type

Schrader

Rim26_ZAC19

Actual Weight (kg)

0.46

Rim Width (mm)

23.6

Spoke Holes

36 Hole

Nominal Rim Size

26" (ISO 559)

Rim ERD

540.33

Rim Brake Compatible

Yes

Valve Type

Presta, Schrader

Rim26J31

Actual Weight (kg)

0.7800

Rim Width (mm)

Spoke Holes

36 Hole

Nominal Rim Size

26" (ISO 559)

Rim ERD

527

Rim Brake Compatible

Valve Type

Schrader

Rim26_DM30

Actual Weight (kg)

0.6

Rim Width (mm)

Spoke Holes

36 Hole

Nominal Rim Size

26" (ISO 559)

Rim ERD

545

Rim Brake Compatible

Yes

Valve Type

Presta, Schrader

Rim26_Fat

Actual Weight (kg)

1.06

Rim Width (mm)

Spoke Holes

36 Hole

Nominal Rim Size

26" (ISO 559)

Rim ERD

537

Rim Brake Compatible

Valve Type

Schrader

Rim700_ZAC19

Actual Weight (kg)

0.5

Rim Width (mm)

23.6

Spoke Holes

36 Hole

Nominal Rim Size

700C (ISO 622)

Rim ERD

603.86

Rim Brake Compatible

Yes

Valve Type

Presta, Schrader

Rim700_DM30

Actual Weight (kg)

0.65

Rim Width (mm)

Spoke Holes

36 Hole

Nominal Rim Size

700C (ISO 622)

Rim ERD

609

Rim Brake Compatible

Yes

Valve Type

Presta, Schrader

36V 14.5Ah Downtube Battery

Actual Weight (kg)

3.15

Dimensions (L x W x H, mm)

365x100x105

Mounting Type

Frame Mount

Nominal Voltage

36 Volt (10s)

Full Charge Voltage

42.0

Capacity (Amp-Hours)

14.5

Cell Type

NCR21700A 10S x 3P

Connector(s)

Anderson, DT_4pinSpade, ST3

36V 20Ah Downtube Battery

Actual Weight (kg)

4.02

Dimensions (L x W x H, mm)

365x95x100

Mounting Type

Frame Mount

Nominal Voltage

36 Volt (10s)

Full Charge Voltage

42.0

Capacity (Amp-Hours)

19.25

Cell Type

Panasonic NCR21700A 10S x 4P

Connector(s)

Anderson, DT_4pinSpade, ST3

52V 15Ah Downtube Battery

Actual Weight (kg)

4.3

Dimensions (L x W x H, mm)

380x95x100

Mounting Type

Frame Mount

Nominal Voltage

52 Volt (14s)

Full Charge Voltage

58.8

Capacity (Amp-Hours)

14.5

Cell Type

NCR21700A 14S x 3P

Connector(s)

Anderson, ST3

52V 20Ah Downtube Battery

Actual Weight (kg)

5.38

Dimensions (L x W x H, mm)

370x89x137

Mounting Type

Frame Mount

Nominal Voltage

52 Volt (14s)

Full Charge Voltage

58.8

Capacity (Amp-Hours)

19.8

Cell Type

Panasonic GA 14S x 6P

Internal Resistance (Ohms)

0.12

Connector(s)

Anderson, ST3

36V 2A Anderson Charger

Actual Weight (kg)

0.5

Connector(s)

Anderson

36V 2A ST3 Charger

Actual Weight (kg)

0.36

Connector(s)

ST3

36V 2A XLR Charger

Actual Weight (kg)

0.5

Connector(s)

XLR

36V 4A ST3 Charger 220VAC

Actual Weight (kg)

0.58

Connector(s)

ST3

48V 2A XLR Charger

Actual Weight (kg)

0.5

Connector(s)

XLR

52V 4A ST-3 Charger 110-240

Actual Weight (kg)

0.84

Connector(s)

ST3

Satiator Upgrade with ST3 Adapter

Actual Weight (kg)

1.06

CA3-WPx

Actual Weight (kg)

0.3

12 Pole PAS with Spindle Mounted Magdisc

Manufacturer

King Meter

Actual Weight (kg)

0.12

PAS Poles

PAS Encoder Type

2 Wire (Quadrature)

12 Pole PAS with Chainring Mounted Magdisc

PAS Poles

PAS Encoder Type

2 Wire (Quadrature)

24 Pole PAS (Short 90cm Cable)

Actual Weight (kg)

.06

Connector(s)

JST-SM

PAS Poles

PAS Encoder Type

2 Wire (Quadrature)

24 Pole PAS (Long 120cm Cable)

Actual Weight (kg)

.06

Connector(s)

JST-SM

PAS Poles

PAS Encoder Type

2 Wire (Quadrature)

Fischer AG Torque Sensing BB, 127mm

Actual Weight (kg)

0.3300

Connector(s)

JST-SM, HiGo MiniB

PAS Poles

PAS Encoder Type

2 Wire (Quadrature)

Torque Sensor Offset Voltage

0.6

ERider68-T17 BB with 4 Arm Spider

Actual Weight (kg)

1.06

Connector(s)

Higo Signal C, JST-SM

PAS Poles

PAS Encoder Type

2 Wire (Quadrature)

Torque Sensor Offset Voltage

1.5V

ERider68-T17 BB with 5 Arm Spider

Actual Weight (kg)

1.06

Connector(s)

Higo Signal C, JST-SM

PAS Poles

PAS Encoder Type

2 Wire (Quadrature)

Torque Sensor Offset Voltage

1.5V

ERider73-T17 BB with 4 Arm Spider

Actual Weight (kg)

1.06

Connector(s)

Higo Signal C, JST-SM

PAS Poles

PAS Encoder Type

2 Wire (Quadrature)

Torque Sensor Offset Voltage

1.5V

ERider73-T17 BB with 5 Arm Spider

Actual Weight (kg)

1.06

Connector(s)

Higo Signal C, JST-SM

PAS Poles

PAS Encoder Type

2 Wire (Quadrature)

Torque Sensor Offset Voltage

1.5V

ERider83-T17 BB with 4 Arm Spider

Actual Weight (kg)

1.06

Connector(s)

Higo Signal C, JST-SM

PAS Poles

PAS Encoder Type

2 Wire (Quadrature)

Torque Sensor Offset Voltage

1.5V

ERider83-T17 BB with 5 Arm Spider

Actual Weight (kg)

1.06

Connector(s)

Higo Signal C, JST-SM

PAS Poles

PAS Encoder Type

2 Wire (Quadrature)

Torque Sensor Offset Voltage

1.5V

ERider100-T17 BB with 4 Arm Spider

Actual Weight (kg)

1.06

Connector(s)

Higo Signal C, JST-SM

PAS Poles

PAS Encoder Type

2 Wire (Quadrature)

Torque Sensor Offset Voltage

1.5V

ERider100-T17 BB with 5 Arm Spider

Actual Weight (kg)

1.06

Connector(s)

Higo Signal C, JST-SM

PAS Poles

PAS Encoder Type

2 Wire (Quadrature)

Torque Sensor Offset Voltage

1.5V

NCTE_120

Actual Weight (kg)

0.3300

Connector(s)

JST-SM

PAS Poles

PAS Encoder Type

2 Wire (Quadrature)

Torque Sensor Offset Voltage

2.5V

NCTE_128

Actual Weight (kg)

0.3300

Connector(s)

JST-SM

PAS Poles

PAS Encoder Type

2 Wire (Quadrature)

Torque Sensor Offset Voltage

2.5V

NCTE_136

Actual Weight (kg)

0.3300

Connector(s)

JST-SM

PAS Poles

PAS Encoder Type

2 Wire (Quadrature)

Torque Sensor Offset Voltage

2.5V

ERider73_5B

Actual Weight (kg)

1.06

Connector(s)

Higo Signal C, JST-SM

PAS Poles

PAS Encoder Type

Single Wire

Torque Sensor Offset Voltage

1.5V
