Canadian
MSTOKE_G02

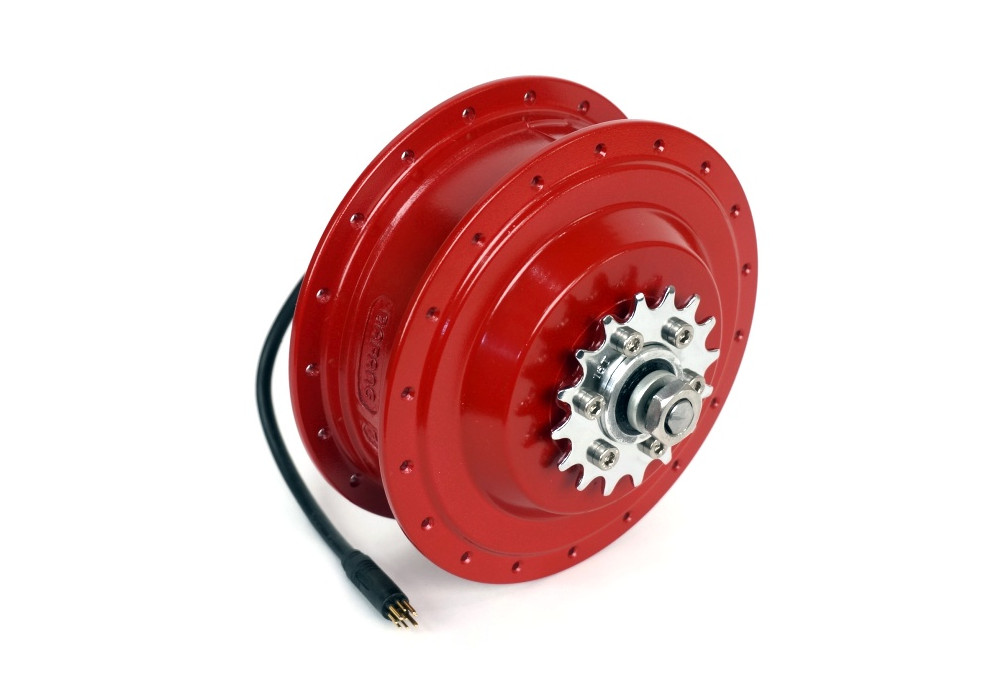

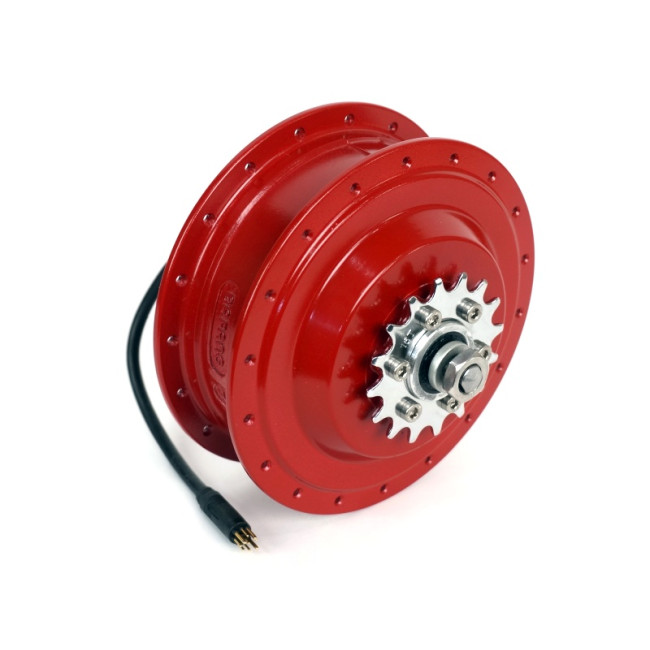

Geared Stokemonkey Motor, with 16T Disk Cog
SKU
M-MStoke_G02
Geared Stokemonkey Motor, based on Bafang G02 Front Hub
This is a front geared hub motor with some axle spacers that to make it be a drop in fit for the 120mm spacing of the stokemonkey motor bracket. Rather than using an external screw on freewheel, it has a 16 tooth cog bolted to the disk mount and uses the intrinsic freewheeling nature of a geared hub to achieve freewheeling.
For more information please see the Stokemonkey page
| Country of Manufacture | China |
|---|---|
| Actual Weight (kg) | 3.3 |
| Motor Power Range (Watts) | 500-1000 |
| Motor KV (RPM / V) | 9.5 |
| Phase Resistance (Ohm) | 0.101 |
| Thermistor Style | 10K NTC, B~3450 w/Speedo |
| Axle Length (O.L.D.) | 120 |
| Spoke Holes | 36 Hole |
| Motor Type | Direct Drive |
| Magnetic Pole Pairs (Phaserunner) | 50 |
| Speedo Poles (for CA) | 6 |
| Hysteresis Losses (N-m) | 0.41 |
| Eddie Losses (N-m / rad/sec) | 0.024 |
| Motor Inductance (H) | 0.00025 |
