HP Velotechnik Single Side Adapter, Left Side

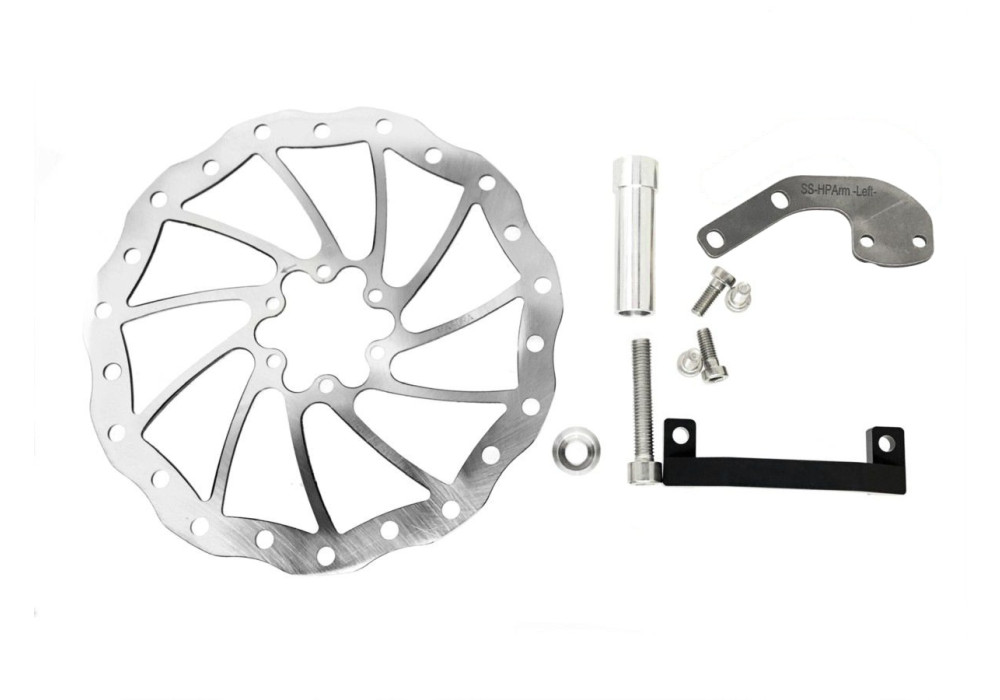

This adapter set allows the use of the V3 All-Axle motor as a front hub drive on the popular HP Veloteknik trikes with full suspension. It does NOT fit non-suspension trikes as it secures to the fender mount. Convert either both left and right wheels or just run off a single side.

A spindle shim allows the 16mm motor bore to fit over the 12mm trike axle. A cap and 45mm long M8 bolt hold the motor on tight.

The motor torque is secured via a bent stainless steel plate that links the the torque arm to the two M6 fender bolts on the turn knuckle.

The kit also includes a post mount disc offset block that shifts the caliper 13mm farther out to line up with the disc rotor on the motor. This post mount block also locates the caliper 10mm back and therefor needs a 180mm rather than 160mm rotor.
