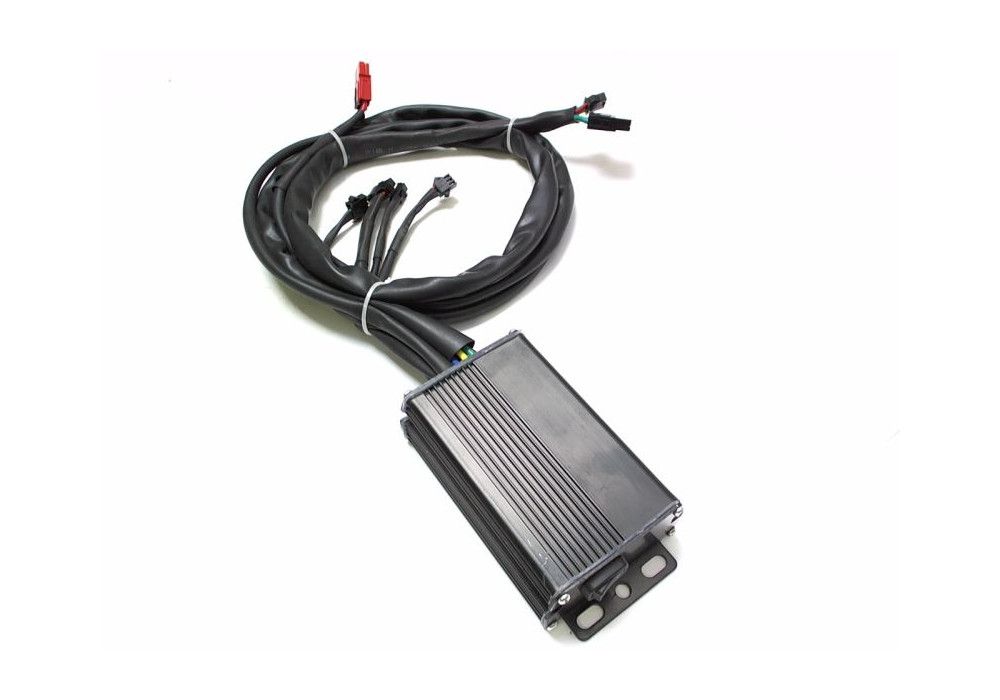

C4820-GR

36-48V, 20A Sinewave Controller with ON/OFF switch, Proportional Regen, and CA3 Connector. For both Sensored and Sensorless Brushless Motors.

Full Product Information Page

SKU

C-C4820-GR

Additional Information

20A Sinweave Grinfineon Controller

Features include:

Wide Input Voltage Range (27-58V)
Operates both Sensored and Sensorless
Quiet Sinusdoial Output when Sensored
Sensorless up to 28000 eRPM, Geared Motor Compatible
Fully Proportional Regenerative Braking from 0-0.8V Throttle Signal
FWD/REV Input Wire
Integrated ON/OFF Toggle Switch
Performance MOSFETs (IRFB4110 or better)
V2 and V3 Cycle Analyst Compatibility
Waterproof Gasket

For more information please see the Grinfineon controller page.

More Information
Country of Manufacture	China
Dimensions (L x W x H, mm)	110 x 71 x 34
Actual Weight (kg)	0.47
Max Regen Voltage (V)	58
Max Battery Amps (A)	20
Max Phase Amps (A)	45
Battery Range (V)	36V-52V Nominal
Low Voltage Cutoff (V)	27
MOSFETs	6 x AOT460
Control Chip	XCKJ 3232C
