V4 Baserunner_Z9

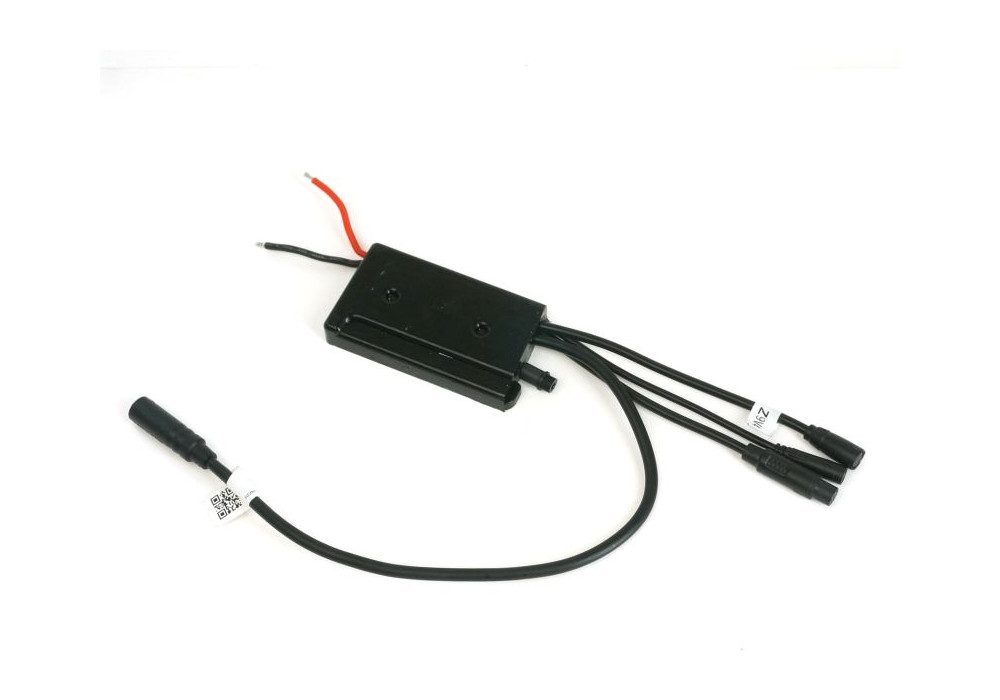

Grin V4 Baserunner_Z9, Flat Field-Oriented Waterproof Motor Controller for Battery Enclosures with Z910 Plug. 60V Max and 55A Peak Phase Currents (~30-35A Continuous). No On/Off switch and Unterminated.
The Baserunner_Z9 is a compact field-oriented motor controller and enclosure that fits inside the Hailong and Reention downtube battery cradles. It is compatible with up to 14s (58V) battery packs and is terminated with a Z910 waterproof HiGo motor plug. The V4 Model uses a 9 pin Mains connector, and WP8 Cycle Analyst plug, and a 6 pin HiGo MiniB connector for direct hookup of a PAS sensor.
A computer setup is required to configure this controller to a given motor, and this requires the USB->TTL communications cable if you don't already have one. Full Baserunner Information Page.
| Country of Manufacture | Canada |
|---|---|
| Manufacturer | Grin |
| Dimensions (L x W x H, mm) | 90 x 55 x 15 |
| Actual Weight (kg) | 0.18 |
| Max Battery Amps (A) | 30 |
| Max Phase Amps (A) | 55 |
| Battery Range (V) | 20-60 |
| Low Voltage Cutoff (V) | Programmable |
| MOSFETs | 6x 8mOhm |
| Connector(s) | HiGo 0812(WP8), TRRS, Z910, HiGo MiniB |
