Baserunner_Z9 - Stand Alone
Grin Baserunner, Special Stand Alone Model with All Cables Exiting the Front, Including 90cm Long Battery Cable. 60V Max and 55A Peak Phase Currents (~30-35A Continuous). 90cm Battery

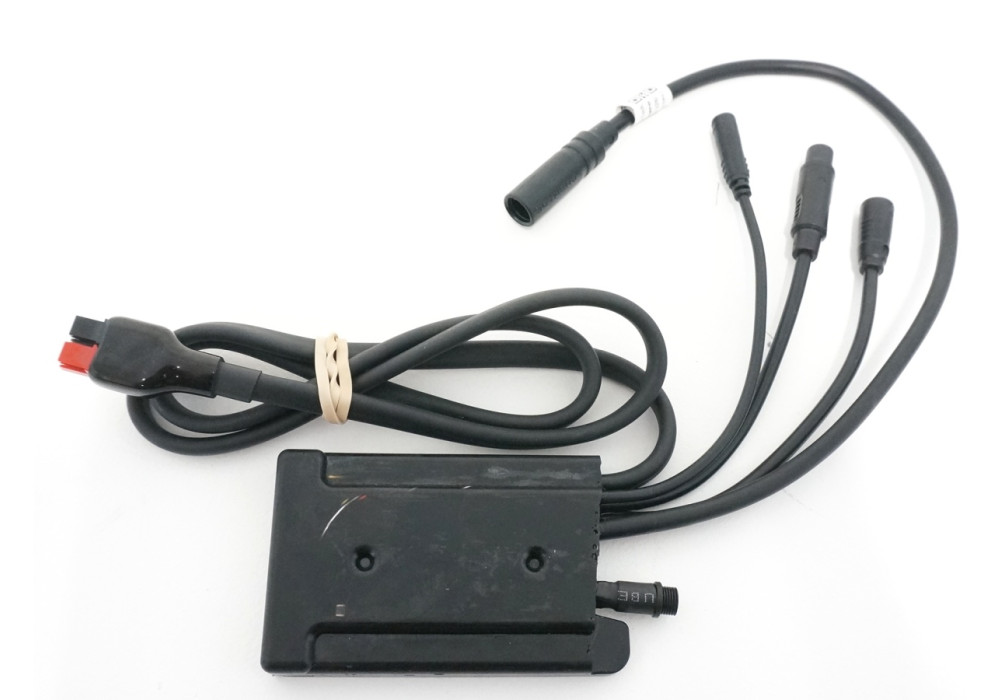

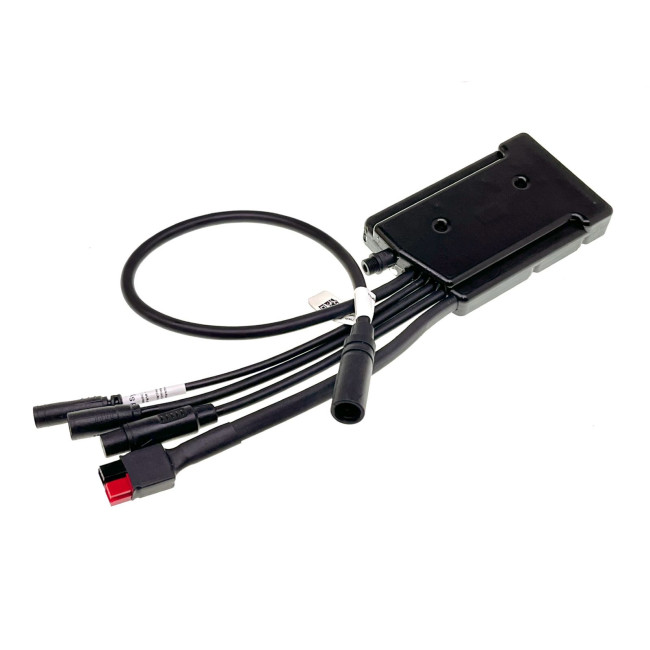

The Baserunner is a compact field-oriented motor controller originally designed to fit inside battery downtubes. This version is configured for installations that aren't using a downtube battery pack. The battery cable exits the rear of the controller along with all the other cables and the enclosure casting is a bit wider as a result. This device uses the WP8 CA plug and can support speed signals, temperature signals, or combined temp+speed signals on the white wire of the Z910 connector.
It is compatible with up to 14s (58V) battery packs and is terminated with a Z910 waterproof HiGo motor plug. Cables and connectors are otherwise identical to the Phaserunner, and remote on/off switch wires are present under the throttle heatshrink. Requires computer setup to mate and configure with a given motor, and this requires the USB->TTL communications cable if you don't already have that. Requires CA3-WP and MFSwitch or separately wired on/off switch to turn on. Full Baserunner Information Page.
| Country of Manufacture | Canada |
|---|---|
| Dimensions (L x W x H, mm) | 98 x 60 x 15 |
| Actual Weight (kg) | 0.28 |
| Max Battery Amps (A) | 30 |
| Max Phase Amps (A) | 55 |
| Battery Range (V) | 20-60 |
| Low Voltage Cutoff (V) | Programmable |
| MOSFETs | 6x 8mOhm |
| Connector(s) | Anderson, HiGo 0812(WP8), TRRS, Z910, HiGo MiniB, Mains D1109 |
