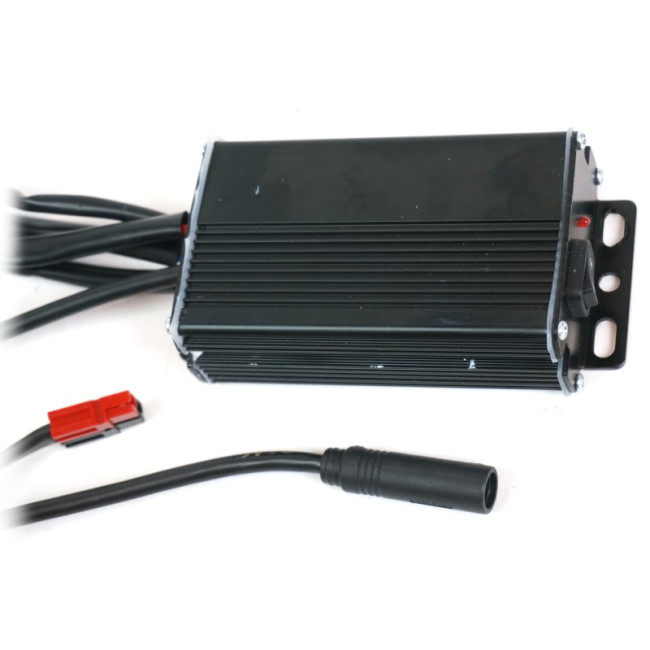

C4820-GR_Higo

36-52V, 20A Sinewave Controller with ON/OFF Switch and Either 90cm or 120cm (for Front hub) Motor Phase Cable using Waterproof Z910 Higo Connector. For use with GEARED hub motors with standard Bafang pinout - not compatible with motors with combined speed and temp signal without modification. New Model with WP8 CA Plug.

Full Product Information Page

USD$100.00
Availability: In stock
SKU
C-C4820-GR_Higo

20A Sinweave Grinfineon Controller

Features include:

  • New WP8 Cycle Analyst Connector
  • Wide Input Voltage Range (27-58V)
  • Includes Waterproof 9 Pin Higo Z910 Connector for Motor Phase, Hall, and Speed
  • Operates both Sensored and Sensorless
  • Quiet Sinusdoial Output when Sensored
  • Sensorless up to 28000 eRPM, Geared Motor Compatible
  • Fully Proportional Regenerative Braking from 0-0.8V Throttle Signal
  • FWD/REV Input Wire
  • Integrated ON/OFF Push Button Switch with Rubber Boot
  • Waterproof Gasket

Compatible with motors that use standard Bafang Hall pinout.

For more information please see the Grinfineon controller page.

More Information
Country of Manufacture China
Dimensions (L x W x H, mm) 110 x 71 x 34
Actual Weight (kg) 0.4700
Max Regen Voltage (V) 58
Max Battery Amps (A) 20
Battery Range (V) 36V-52V Nominal
Low Voltage Cutoff (V) 27
MOSFETs 6 x AOT460
Control Chip XCKJ 3232C
Connector(s) Anderson, JST-SM, WP8 (HiGo 0812), Z910
