Canadian
eZee650R

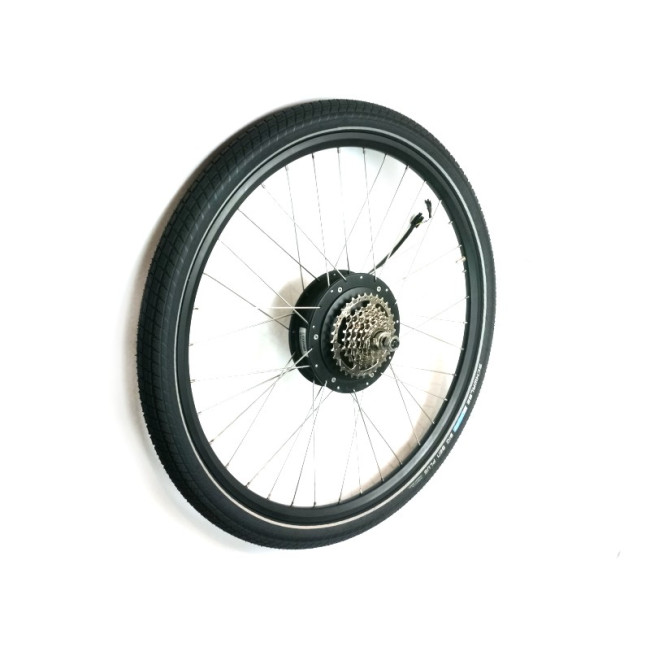

eZee V2 (250RPM) Rear Hub Motor in 27.5" Rim with Tube and Schwalbe Tire
SKU
M-eZee650R
V2 eZee Standard Wind Rear Motor in 650B (27.5)" Rim, with Schwalbe Big Ben Plus Tire
| Country of Manufacture | China |
|---|---|
| Actual Weight (kg) | 6.9000 |
| Motor Nominal Wheel Size | 650B (ISO 584) |
| Motor Power Range (Watts) | 500-1000 |
| Motor KV (RPM / V) | 8.1 |
| Phase Resistance (Ohm) | 0.075 |
| Disk Brake Compatible | Yes |
| Connector(s) | Anderson, JST-SM |
| Axle Length (O.L.D.) | 135 |
| Axle Threads | M12 x 1.25mm |
| Rim Brake Compatible | Yes |
| Rim Width (mm) | 23 |
| Spoke Holes | 36 Hole |
| Motor Type | Geared |
| Flange Spoke Diameter (mm) | 173 |
| Magnetic Pole Pairs (Phaserunner) | 80 |
| Speedo Poles (for CA) | 1 |
| Hysteresis Losses (N-m) | 0.58 |
| Eddie Losses (N-m / rad/sec) | 0.039 |
| Motor Inductance (H) | 0.00015 |
