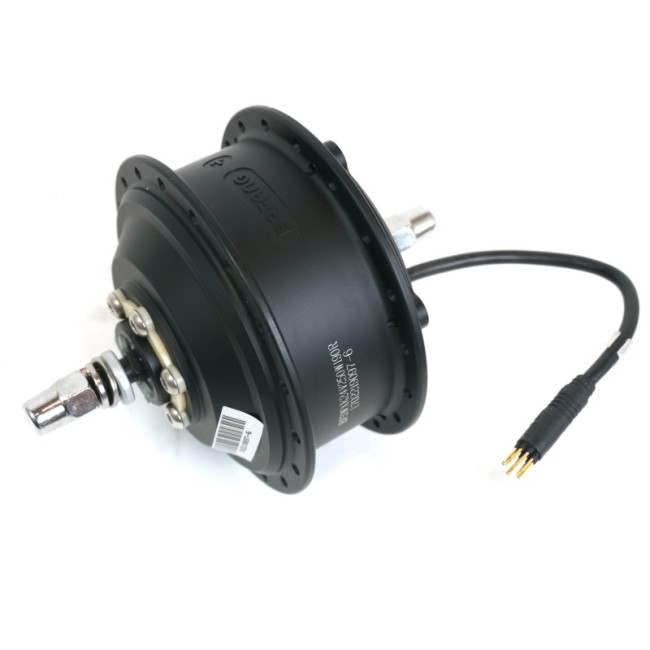

Bafang G01 Standard Wind (10 rpm/V) Geared Front Hub Motor with 9-pin Waterproof Higo Z910 Plug
SKU
M-MG01_Std_Higo

The Bafang G01 motor is a compact disk compatible 2.7kg hub with a nominal 250-350 watt power rating that works great for stealthy systems that do not require significant assist for steep hills or cargo. This motor includes an internal 6-pole speedeometer sensor so it can use a CA-DP device and not require an external speedometer pickup. Unlike many other geared motors, the eRPM at normal speed is low enough that most sensorless controllers will run fine with it.

Uses 9-pin overmolded Higo Z910 connector for the motor phase and hall wires. Including 6-pole speedometer. Disk bolt lengths need to be less than 10mm.

More Information
Country of Manufacture China
Actual Weight (kg) 2.68
Motor Power Range (Watts) 250-500
Motor KV (RPM / V) 10
Phase Resistance (Ohm) 0.139
Disk Brake Compatible Yes
Axle Length (O.L.D.) 100
Spoke Holes 36 Hole
Motor Type Geared
Flange Spoke Diameter (mm) 122
Magnetic Pole Pairs (Phaserunner) 44
Speedo Poles (for CA) 6
Hysteresis Losses (N-m) 0.40
Eddie Losses (N-m / rad/sec) 0.02
Motor Inductance (H) .00019
