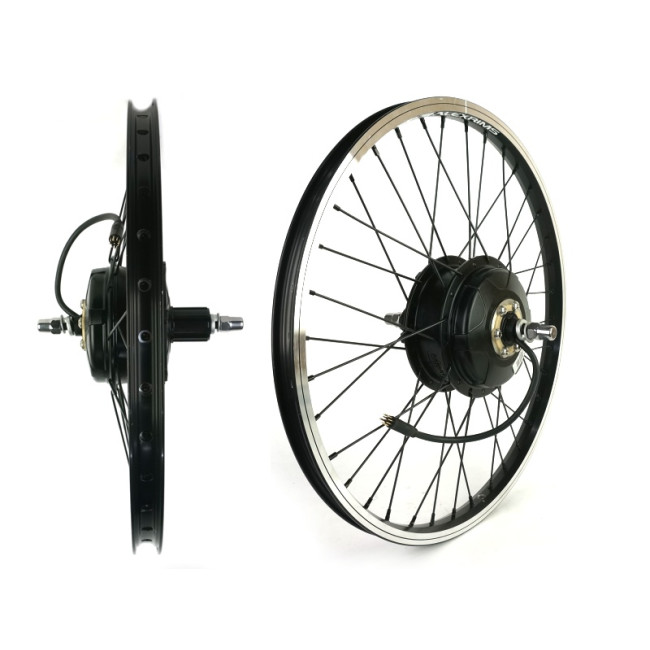

Bafang G310 Fast Wind (10.6 rpm/V) Geared Hub Motor Prelaced in 20" Alex DM18 Rim.


The Bafang G310 motor is a compact disk compatible 2.5kg rear hub with a nominal 250-350 watt power rating that works great for stealthy systems that do not require significant assist for steep hills or cargo. This motor includes an internal 6-pole speedeometer sensor so it can use a CA-DP device and not require an external speedo pickup. It has a spiral gears on the initial reduction of a double stage planetary gear and is exceptionally quiet for a geared motor. Uses a cassette freehub system rather than screw-on freewheel and features a side cable exit as well. This is our fast hub motor winding (10.6 rpm/V) prelaced in a 20" Alex DM18 rim with Sapim single butted spokes.

Uses 9-pin overmolded Higo Z910 waterproof connector for the motor phase and hall wires. Including 6-pole speedometer.

For more details, see the G31X Geared Motor Info Page

More Information
Country of Manufacture China
Actual Weight (kg) 3.5
Motor Nominal Wheel Size 20" (ISO 406
Motor Power Range (Watts) 250-500
Motor KV (RPM / V) 10.6
Phase Resistance (Ohm) 0.098
Disk Brake Compatible Yes
Connector(s) Z910
Thermistor Style 10K NTC, B ~3450 +10K pullup w/Speedo
Axle Length (O.L.D.) 138
Axle Threads M12 x 1.25mm
Rim Brake Compatible yes
Spoke Holes 36 Hole
Motor Type Geared
Flange Spoke Diameter (mm) 123
Magnetic Pole Pairs (Phaserunner) 88
Speedo Poles (for CA) 6
Hysteresis Losses (N-m) 0.666
Eddie Losses (N-m / rad/sec) 0.015
Motor Inductance (H) 0.000124
