Canadian
MNSM15

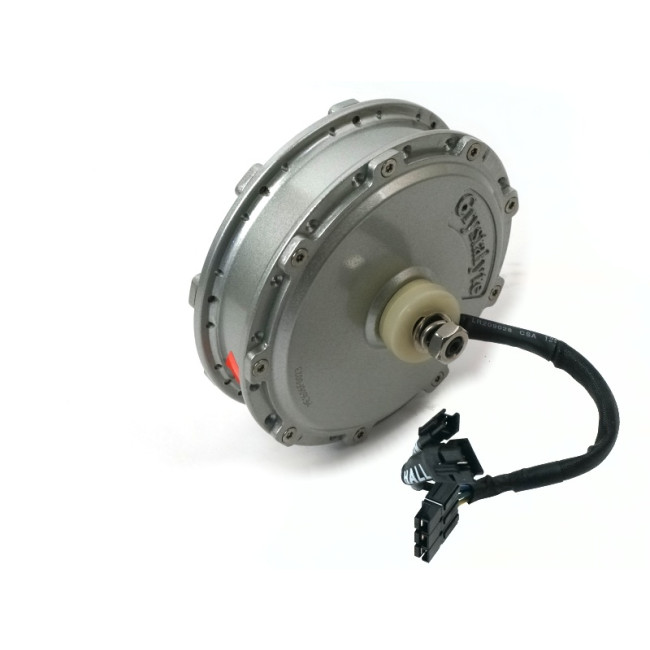

Unlaced Crystalyte NSM Motor, Very Fast 15 RPM/V Wind, M10 Axle ground with 8mm flats.
SKU
M-MNSM15
Unlaced Crystalyte NSM Motor, Very Fast 15 RPM/V Wind, M10 Axle ground with 8mm flats.
| Country of Manufacture | China |
|---|---|
| Actual Weight (kg) | 2.7 |
| Motor Power Range (Watts) | 250-500 |
| Motor KV (RPM / V) | 15.5 |
| Phase Resistance (Ohm) | 0.51 |
| Disk Brake Compatible | No |
| Connector(s) | Z910 |
| Thermistor Style | 10K NTC, B~3900 |
| Axle Length (O.L.D.) | 75 |
| Spoke Holes | 36 Hole |
| Motor Type | Direct Drive |
| Flange Spoke Diameter (mm) | 144 |
| Magnetic Pole Pairs (Phaserunner) | 20 |
| Speedo Poles (for CA) | 20 |
| Hysteresis Losses (N-m) | 0.52 |
| Eddie Losses (N-m / rad/sec) | 0.002 |
| Motor Inductance (H) | 0.0006 |
