Canadian
MTC100R24

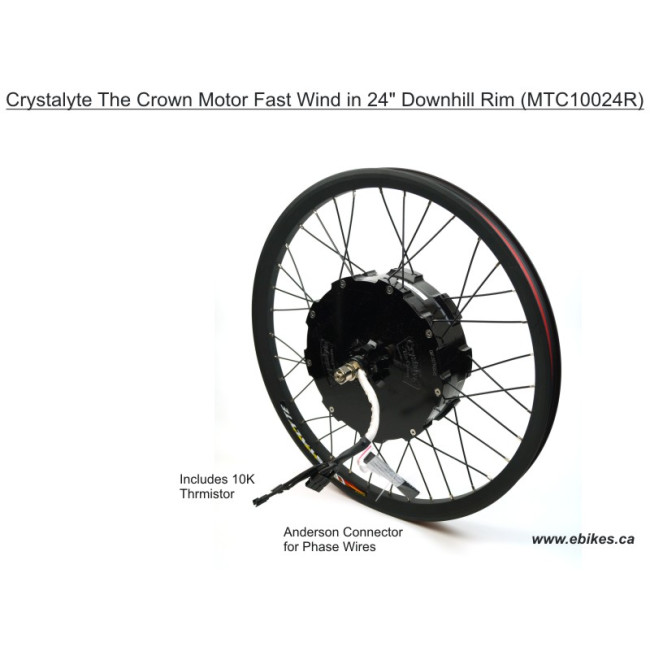

Crystalyte The Crown motor, Fast Wind in 24" Downhill Rim, with Hall Sensors and Thermistor
SKU
M-MTC100R24
Crystalyte The Crown motor, fast wind in 24 inch Downhill rim
The Crown motor is the latest heavy duty motor from Crystalyte. Weighing around 24 pounds with 135mm dropouts, it is intended for off-road and high power applications. At these power levels torque arms are essential, and if you aren't making your own custom arms we recommend installing dual Rev4 Rear torque arms from our site. The hub is laced in rugged downhill grade 34mm wide rim.
| Country of Manufacture | China |
|---|---|
| Actual Weight (kg) | 11.1 |
| Motor Nominal Wheel Size | 24" (ISO 507) |
| Motor Power Range (Watts) | 1000-2000 |
| Motor KV (RPM / V) | 11.2 |
| Phase Resistance (Ohm) | 0.072 |
| Disk Brake Compatible | Yes |
| Axle Length (O.L.D.) | 140 |
| Rim Brake Compatible | No |
| Rim Width (mm) | 37.5 |
| Spoke Holes | 36 Hole |
| Motor Type | Direct Drive |
| Flange Spoke Diameter (mm) | 230 |
| Magnetic Pole Pairs (Phaserunner) | 23 |
| Speedo Poles (for CA) | 23 |
| Hysteresis Losses (N-m) | 0.76 |
| Eddie Losses (N-m / rad/sec) | 0.028 |
| Motor Inductance (H) | 0.00023 |
