High power Fat bike with water cooled G062 motor

Finland

|

560

Published: 2024-03-31

Fatbike

G60/G62

Fast

Powerful

High powered experimental Fat bike with extremely modified liquid cooled Bafang G062 geared hub motor running peak 114A battery current out of custom built 60v 24Ah lockable downtube battery (16s6p Samsung 40T Daly 120 BMS).

Stock axle cable channel used also. — Custom wiring axle adapter

range extender can be added when needed. — Rear rack fast locking 60v 17.5Ah range extender

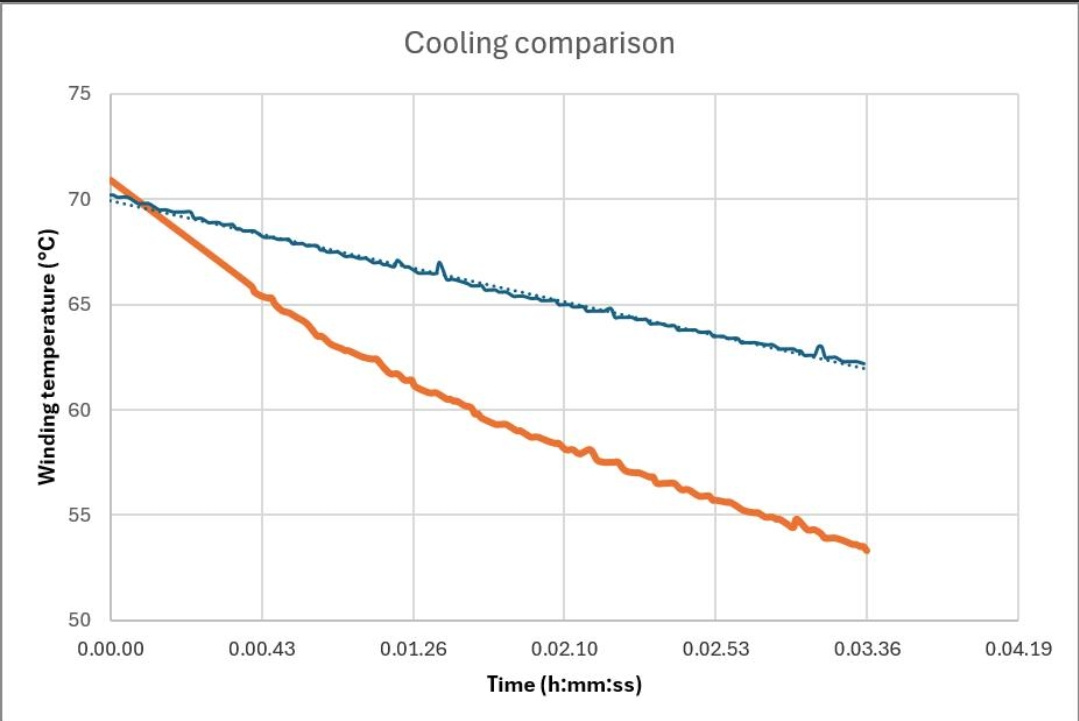

Connected to sensor and App with alarm setting and cvs export. — Bluetooth winding temperature logging device

Axle nut with locitite. — Grin V7 regen torque arm fitted on right side

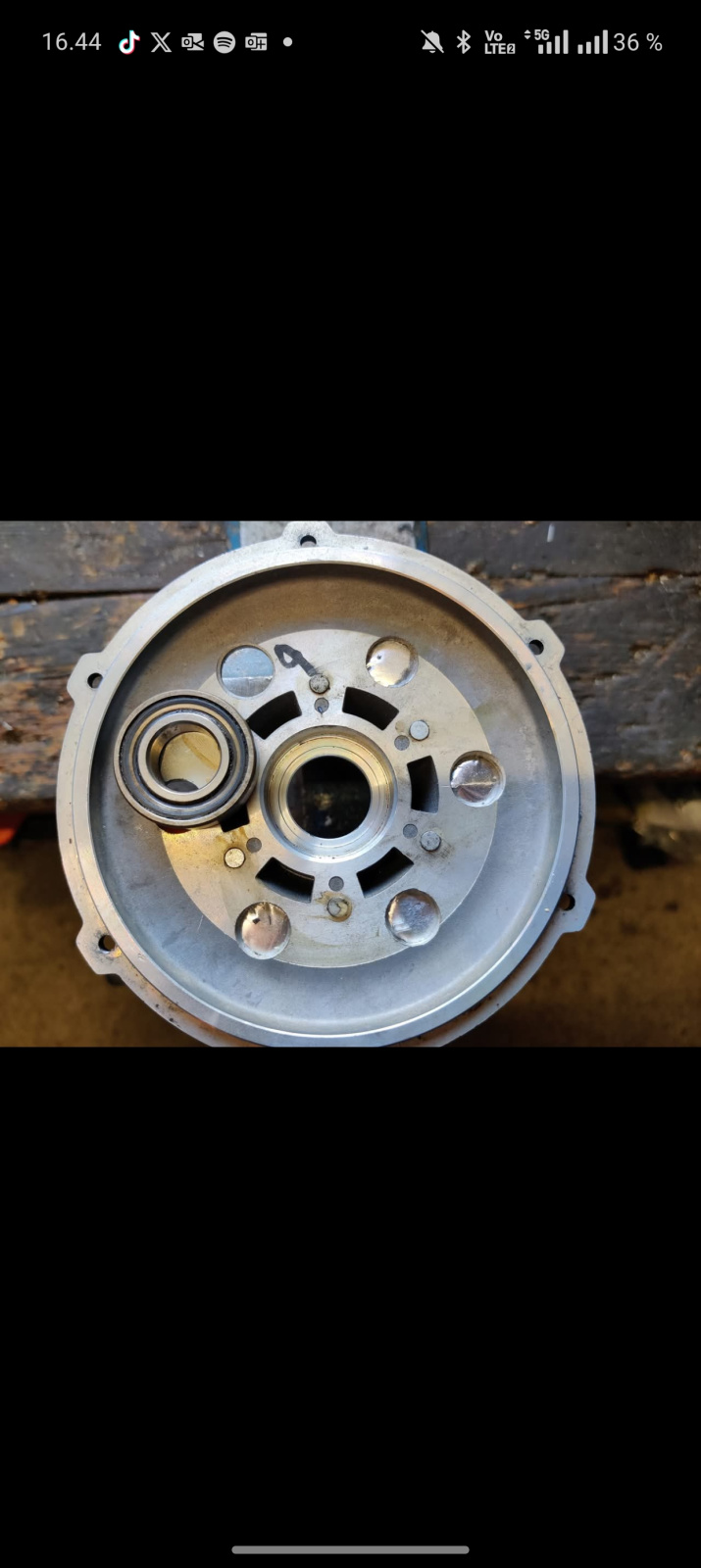

Room for larger bearing for wiring inlet axle adapter. — G062 motor cover with vents and new bearing housing

All ready for final rebuild. — All wiring and cooling lines fitted

Battery current 2-3 sec 114A. After that 80-90A. — Max battery current measurement

Mobil SHC100 used

Axle nut with locitite. — Grin V7 regen torque arm fitted on left side

Custom polycarbonate mounting gear — Coming upgrade BAC2000

Wiring stuff

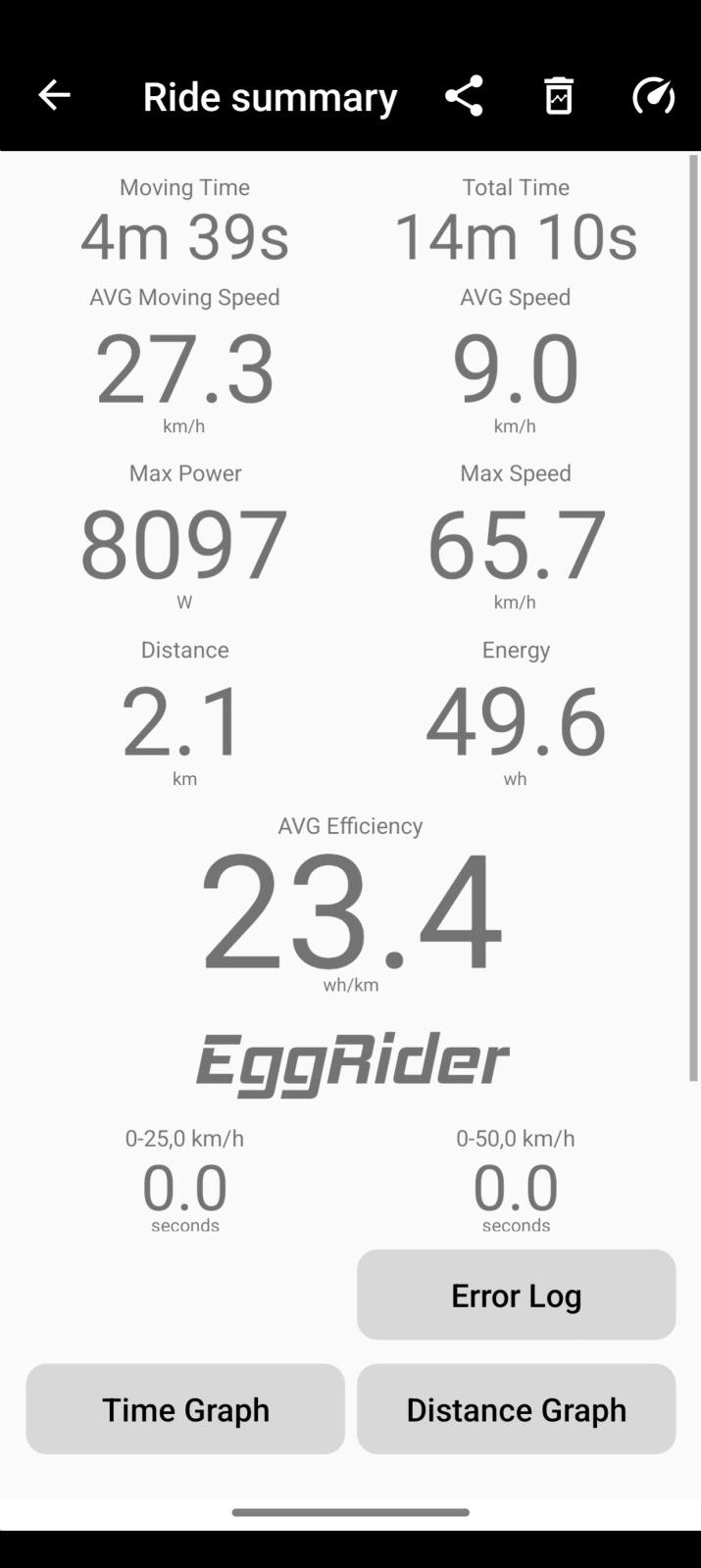

Eggrider ASI CYC

Test fitting of all wiring and stuff

Output on DynoJet 250i 154Nm and 5,42 HP — Dyno graphs

Dynorun 2

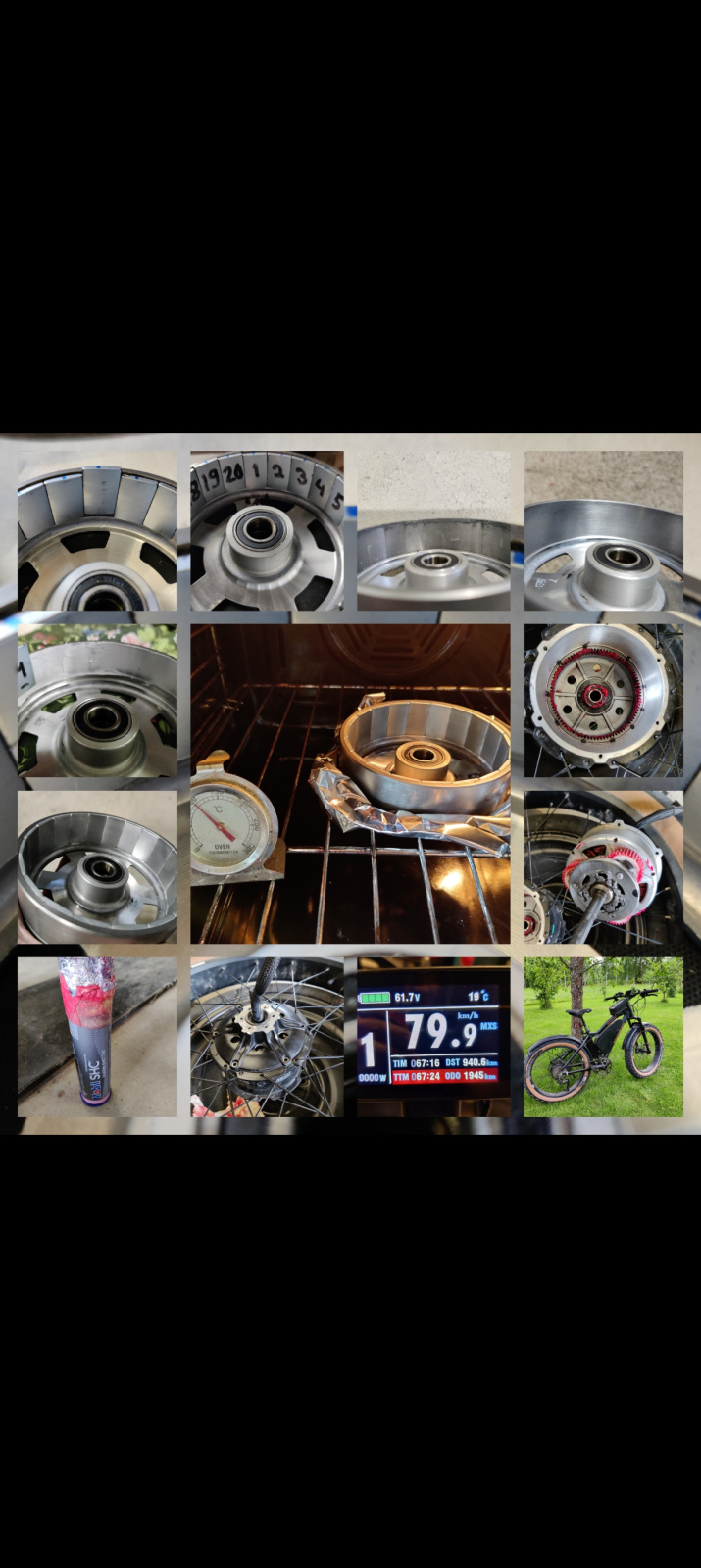

Regluing of magnets (Permabond Et5441). Welding the cluth. Cooling system installation etc. — Picture collage of different phases of motor modification

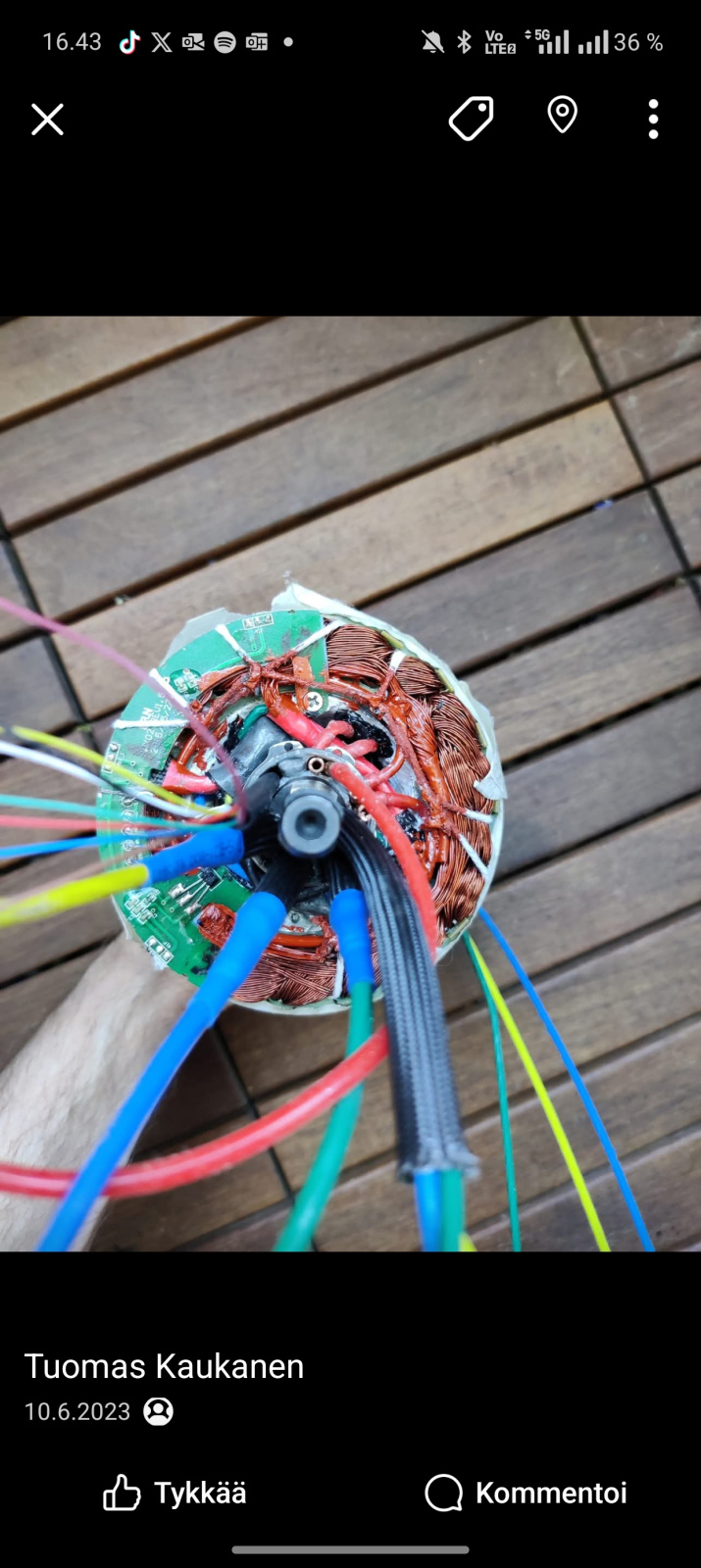

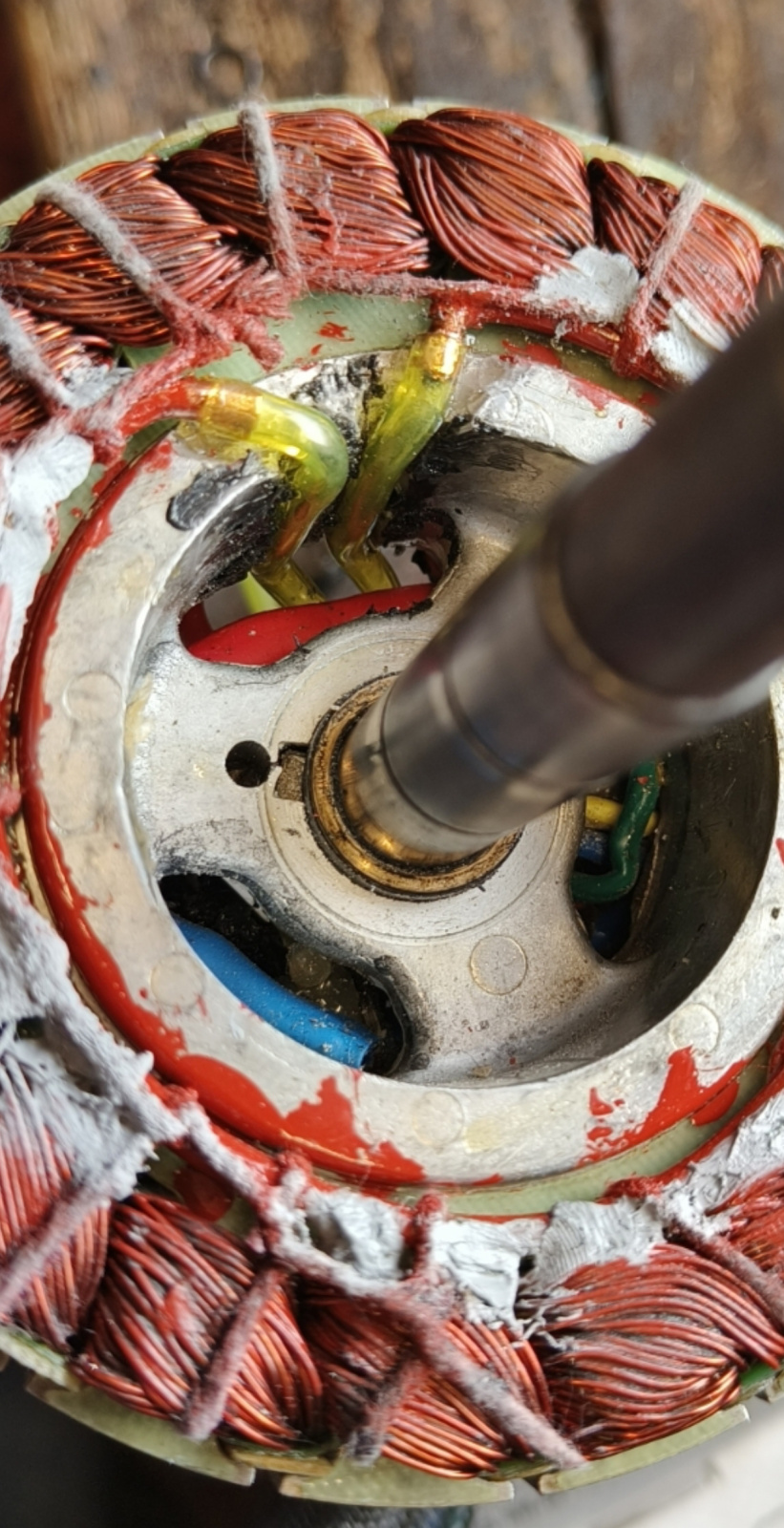

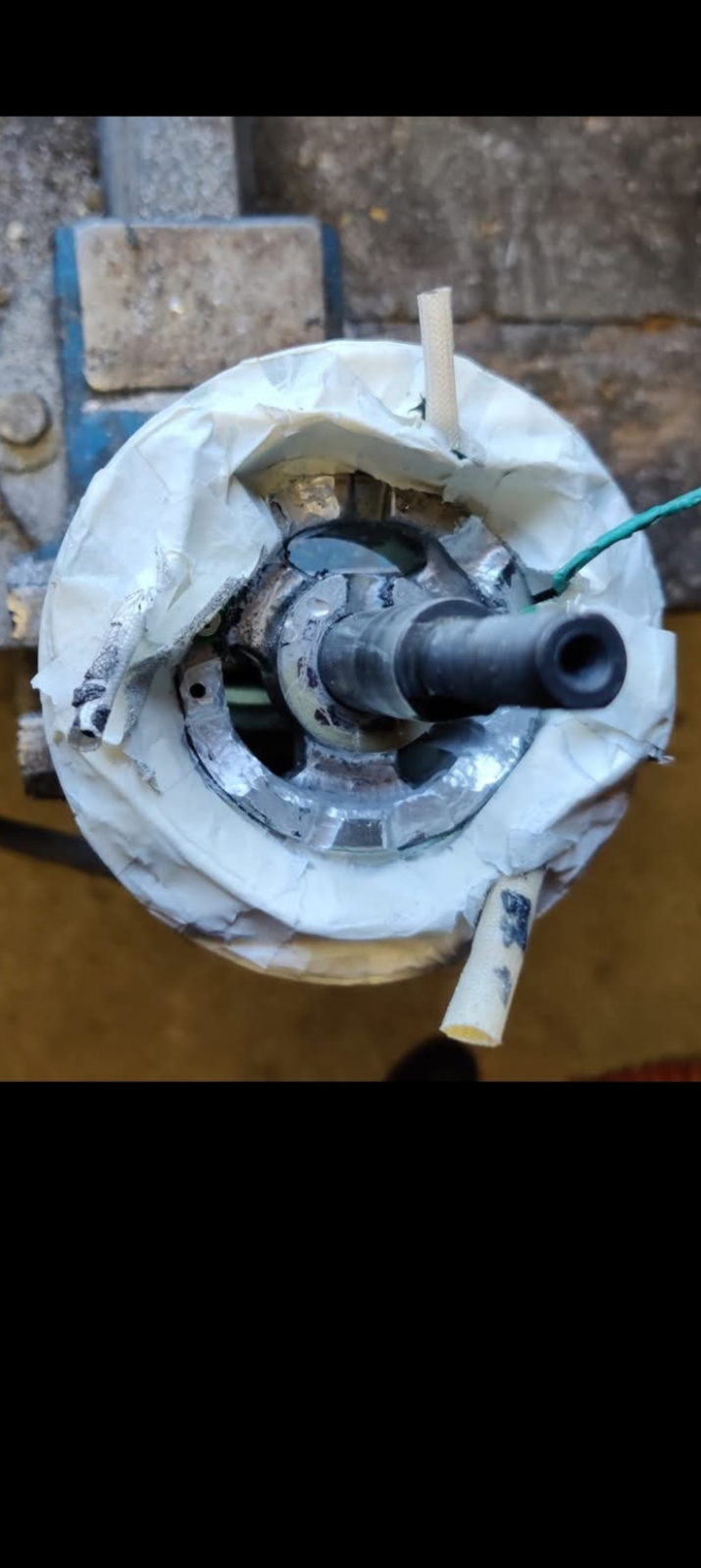

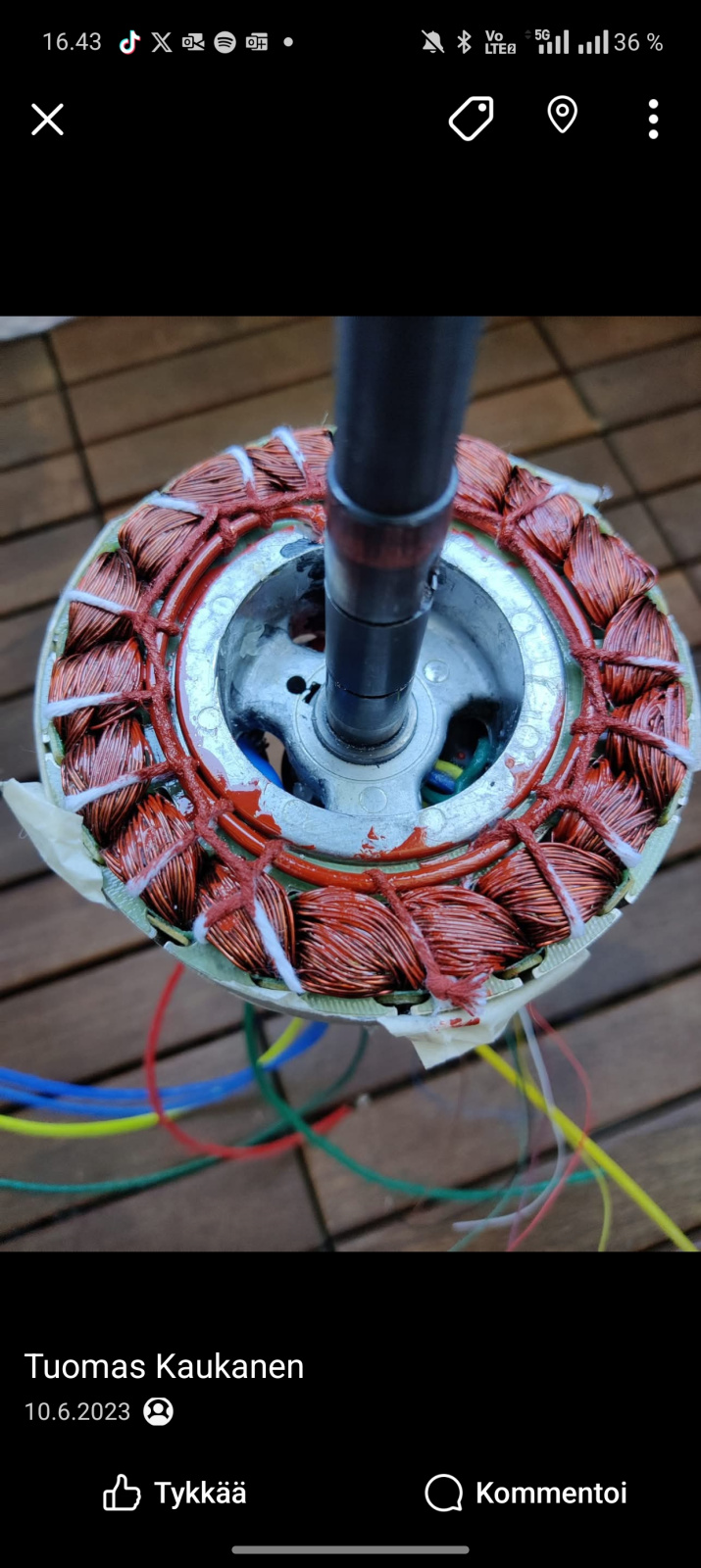

Stator body modified to have room for wiring and cooling — G062 motor stator body modified

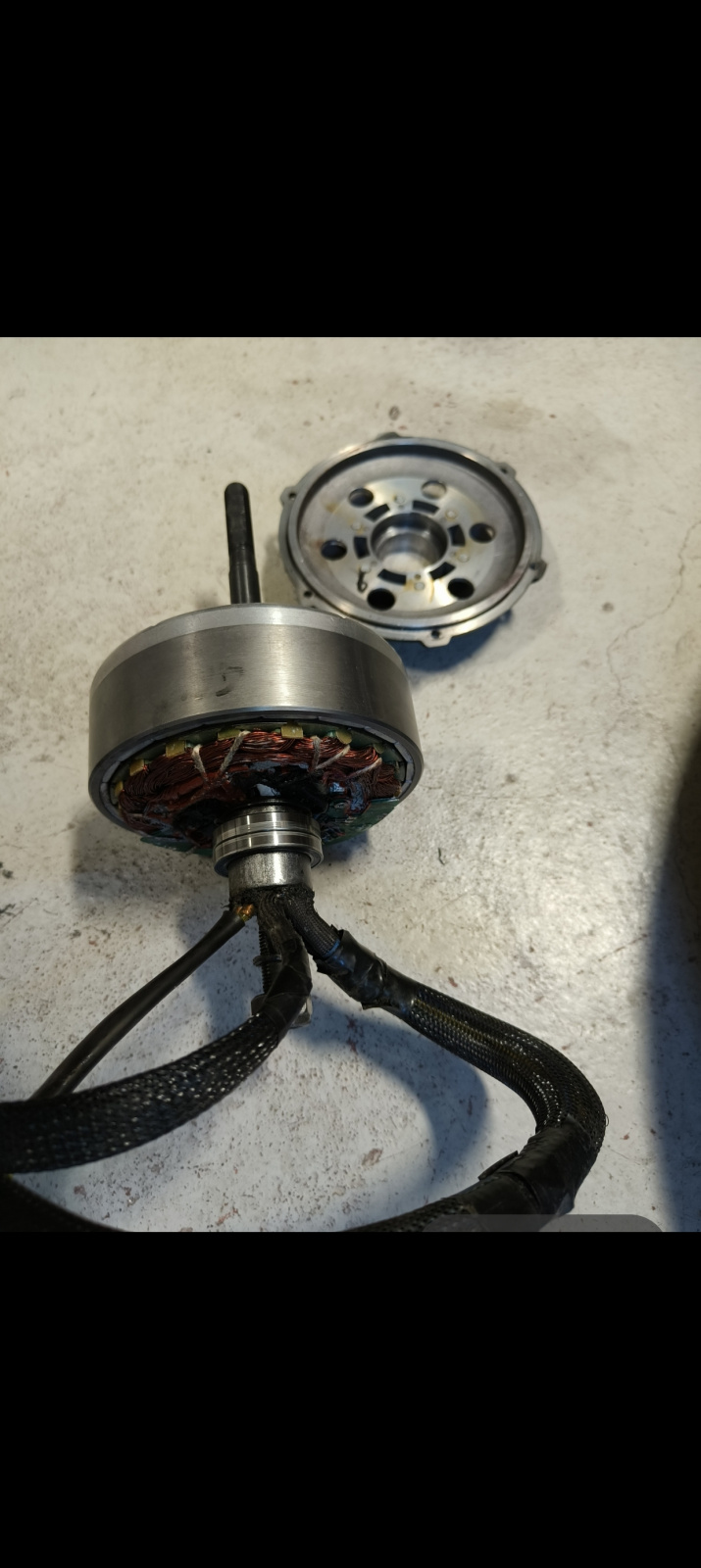

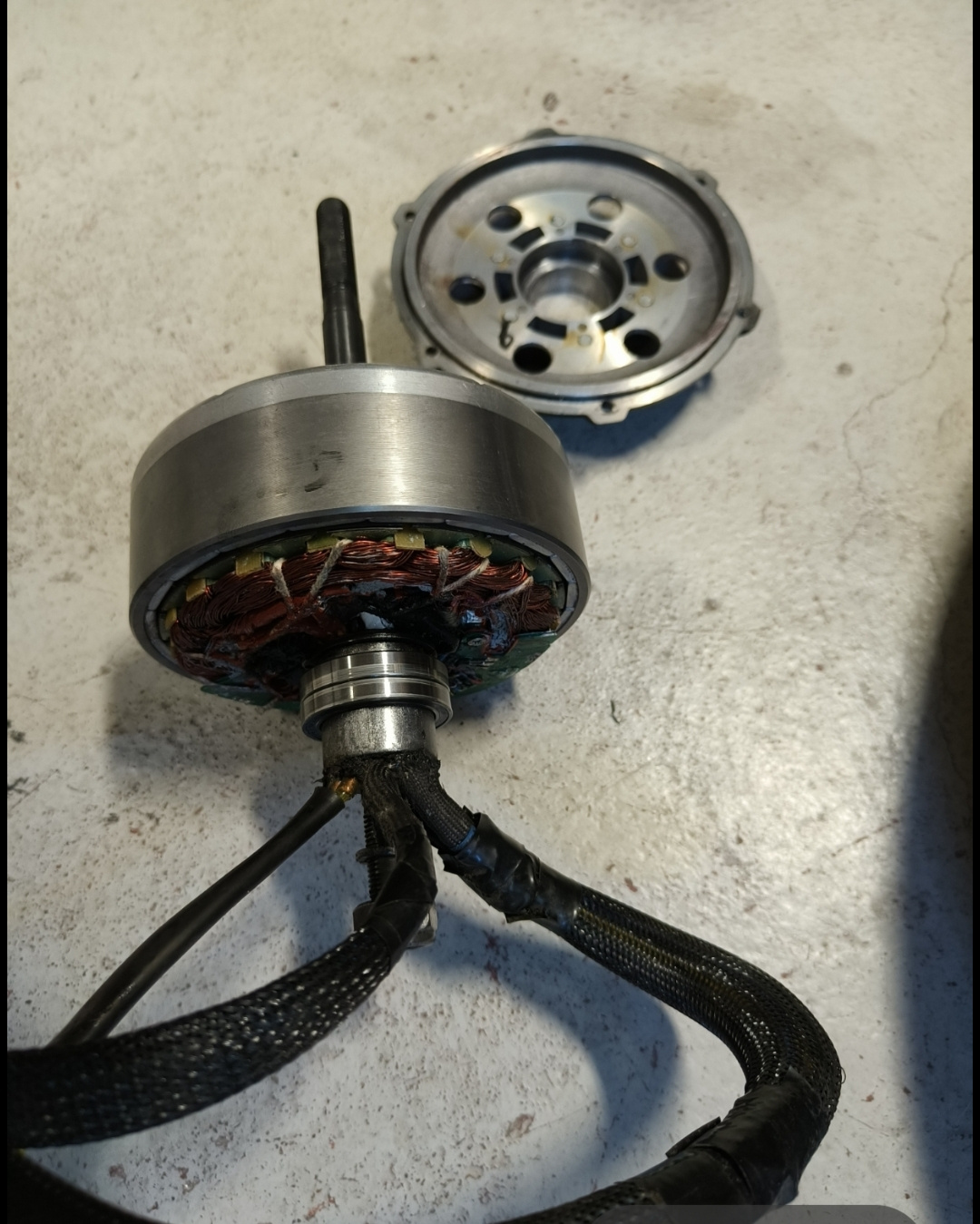

Liquid cooled and vented fully modified G062.1000.DC motor with real time BT temp logging system, 8 awg phase wiring and reglued magnets. Welded clutch.

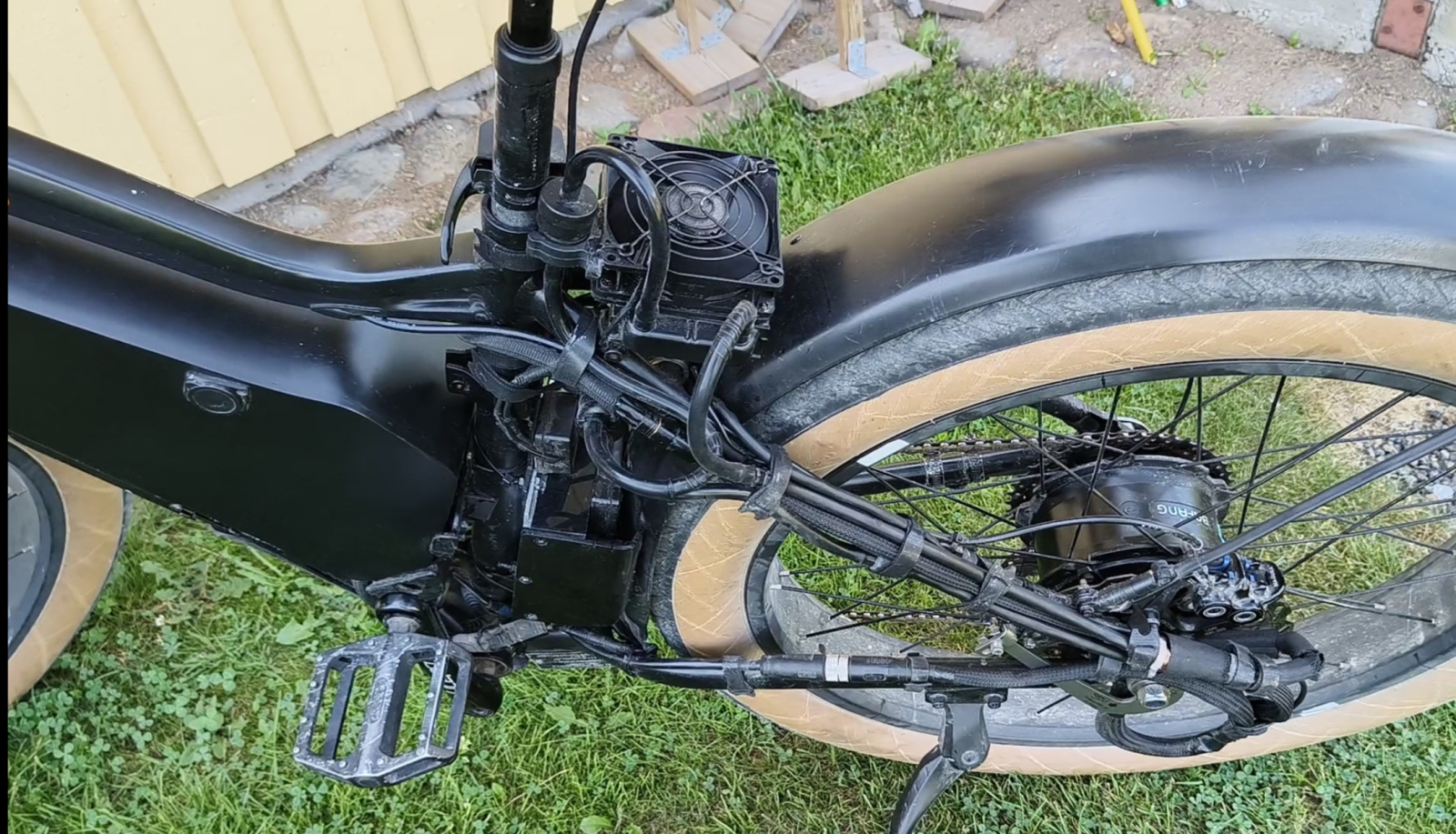

- 90*90mm motor coolant radiator, circulating pump, reservoir and 92mm cooling fan. — Modified motor rebuilt

Dynorun

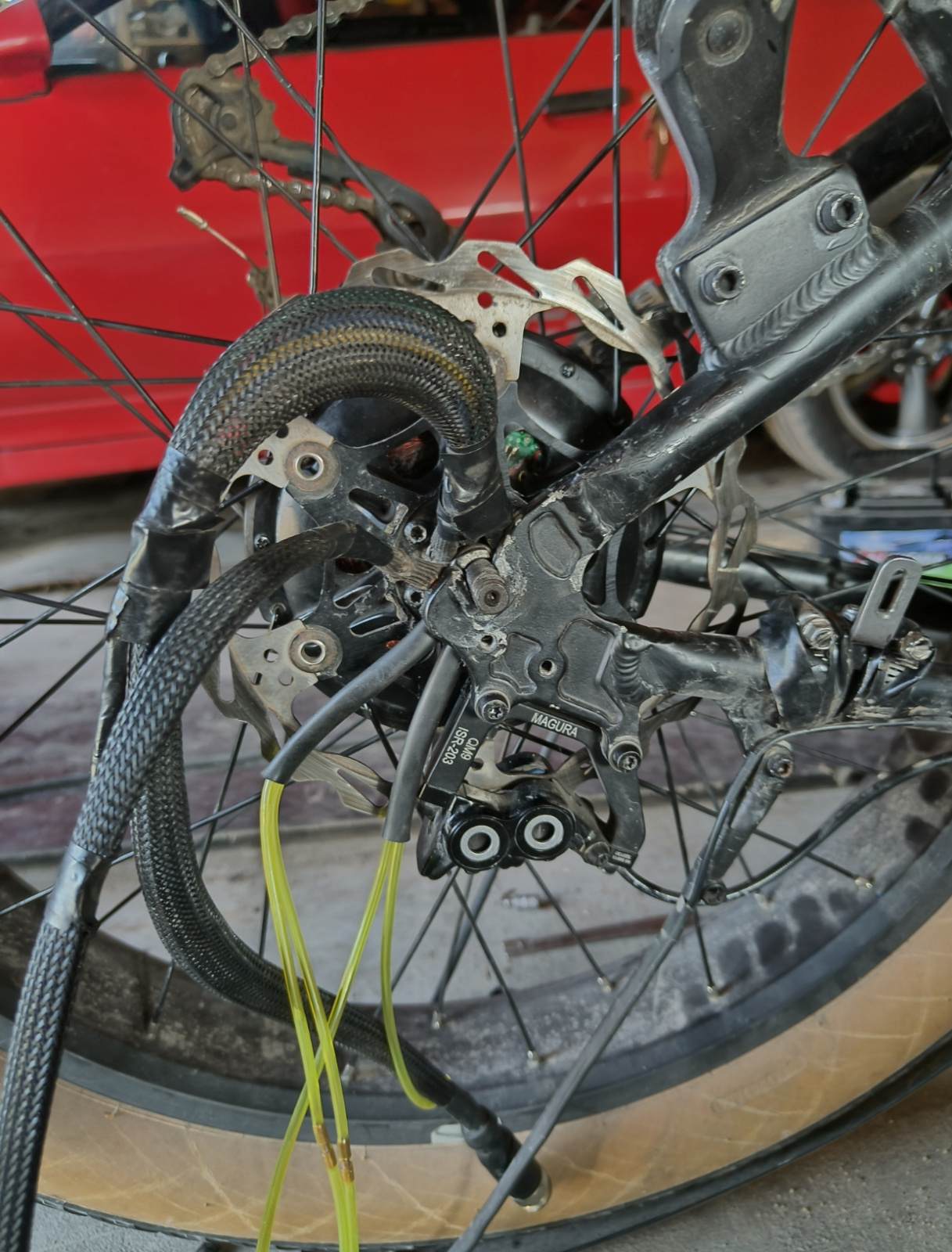

For current support dual phase wiring in use. Additionally Higo mini B for temp sensor + dual cooling lines. — Motor wiring with L10 + MT60

Custom 60v 24Ah battery

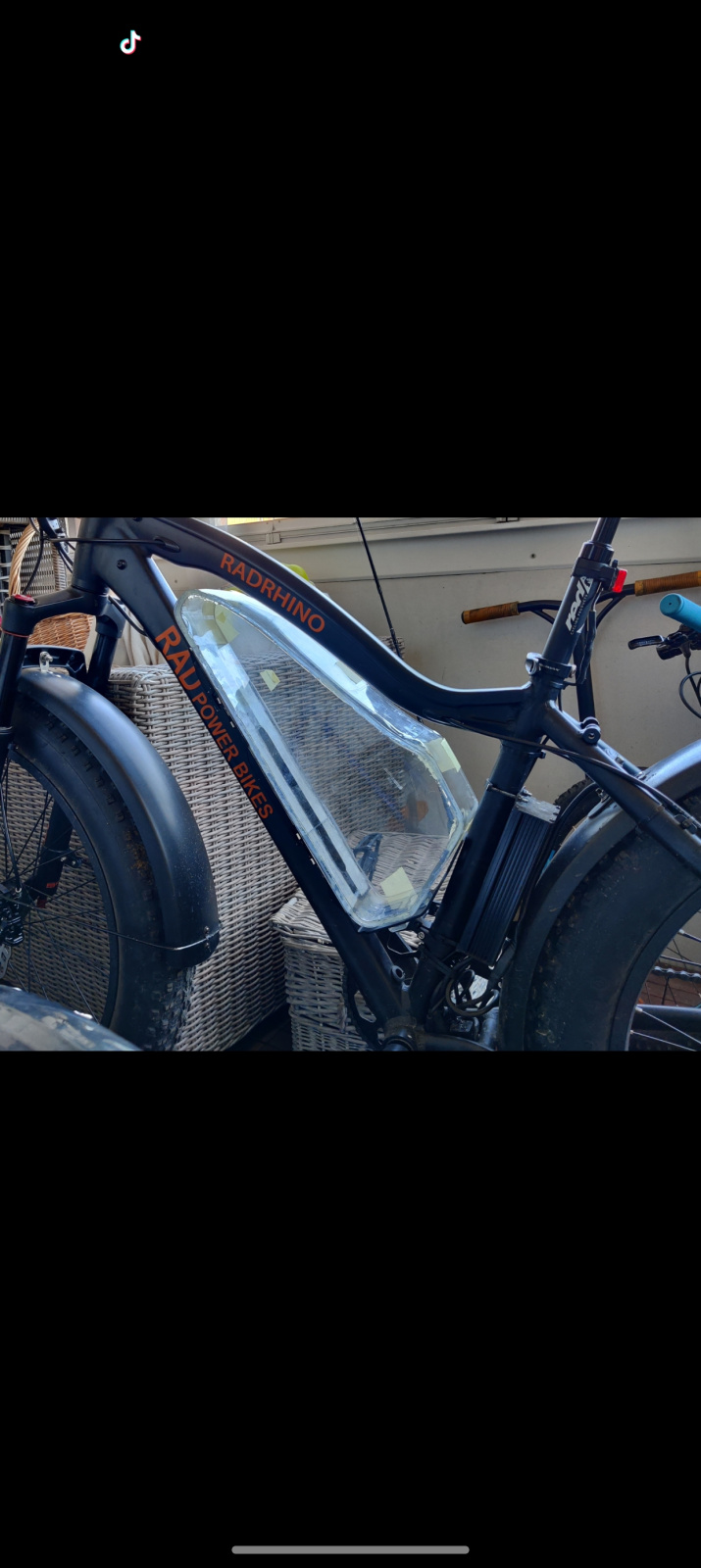

Custom lockable downtube battery made out of polycarbonate and aluminum.
