Mobility scooter

Pittsburgh, Kansas

127

Published: 2024-02-23

Mobility Aid

Other DD Hub

Powerful

Disability

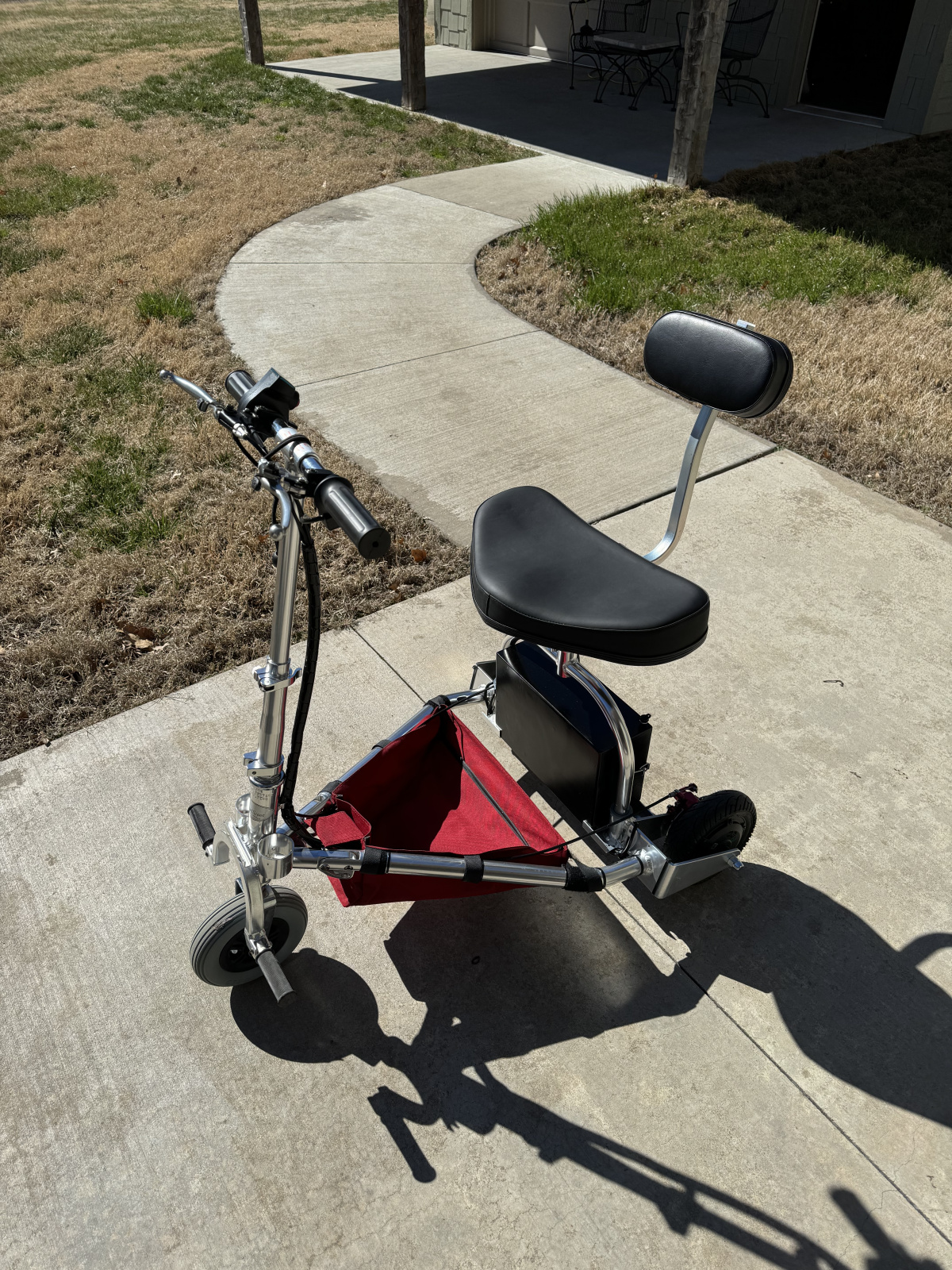

Travel scooter upgraded to 48 volt system with two bafang scooter drive wheels, disc brakes, 2 baserunner motor controller's and a Grin thumb throttle.. This original travel scooter was a 24 volt system driven by one wheel.. Originally not much power, now scooter has enough power for going up inclines and carrying 200 pounds plus..

Brake rotor before mounting the disk caliper

120 MM disc rotors and homemade caliber bracket mounting mirrored calipers.. — Adding the Disc brakes

Handlebar. reverse switch on the left-hand side and thumb throttle and on and off switch on the right side..

Battery box with motor controllers, mounted inside and wiring — Battery box

Battery box with the 48 V battery installed.. Charging plug is on the top corner — Battery box

This was the original travel scooter which was 24 Volts and one wheel drive.. — Original travel scooter
