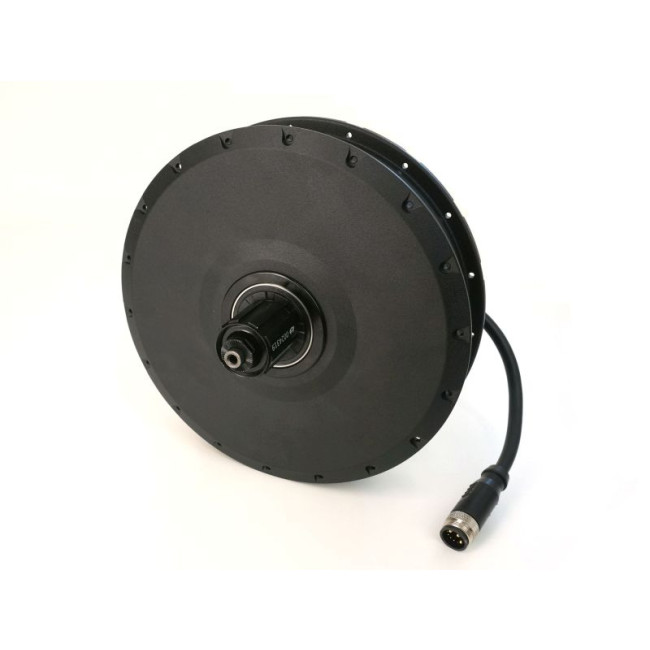

Torque Sensing Motor TSM-A5

TSM-A5 Rear Direct Drive Hub Motor, with Built-In Torque Sensor

Out of stock

SKU
BUNDLE-M-TSM-A5
Customize Torque Sensing Motor TSM-A5
Mounting Kit for TSM-A5 Motors

* Required Fields

Your Customization
Torque Sensing Motor TSM-A5
Summary

    The TSM-A5 direct drive hub motor has a built-in torque sensor from innotorque on the freehub body, allowing for the construction of a torque controlled ebike without a torque sensing bottom bracket or dropout.

    This device uses the same L1019 plug as Grin's other motors, but has a torque signal and temperature signal on the two extra wires, rather than a wheel speed and temperature signal. As a result, it is only compatible with specially modified versions of our Baserunner_L10 motor controller to take advantage of the internal torque sensor.

    Specifications
    Rim20_ZAC19
    Rim ERD
    389
    Rim Width (mm)
    24
    Actual Weight (kg)
    0.32
    Rim Brake Compatible
    Yes
    Nominal Rim Size
    20" (ISO 406)
    Valve Type
    Presta, Schrader
    Spoke Holes
    36 Hole
    Rim20_DM30
    Rim ERD
    394
    Rim Width (mm)
    30
    Actual Weight (kg)
    0.42
    Rim Brake Compatible
    Yes
    Nominal Rim Size
    20" (ISO 406)
    Valve Type
    Presta, Schrader
    Spoke Holes
    36 Hole
    Rim20J31
    Country of Manufacture
    China
    Rim ERD
    375
    Rim Width (mm)
    31
    Actual Weight (kg)
    0.56
    Rim Brake Compatible
    No
    Nominal Rim Size
    20" (ISO 406)
    Valve Type
    Schrader
    Spoke Holes
    36 Hole
    Rim20_Fat
    Country of Manufacture
    China
    Rim ERD
    384
    Rim Width (mm)
    65
    Actual Weight (kg)
    0.82
    Rim Brake Compatible
    No
    Nominal Rim Size
    20" (ISO 406)
    Valve Type
    Schrader
    Spoke Holes
    36 Hole
    Rim24_DM30
    Country of Manufacture
    China
    Rim ERD
    494
    Rim Width (mm)
    30
    Actual Weight (kg)
    0.56
    Rim Brake Compatible
    Yes
    Nominal Rim Size
    24" (ISO 507)
    Valve Type
    Schrader
    Spoke Holes
    36 Hole
    Rim24J31
    Country of Manufacture
    China
    Rim ERD
    477
    Rim Width (mm)
    31
    Actual Weight (kg)
    0.7000
    Rim Brake Compatible
    No
    Nominal Rim Size
    24" (ISO 507)
    Valve Type
    Schrader
    Spoke Holes
    36 Hole
    Rim24_Fat
    Country of Manufacture
    China
    Rim ERD
    485
    Rim Width (mm)
    65
    Actual Weight (kg)
    1.02
    Rim Brake Compatible
    No
    Nominal Rim Size
    24" (ISO 507)
    Valve Type
    Schrader
    Spoke Holes
    36 Hole
    Rim26_ZAC19
    Rim ERD
    540.33
    Rim Width (mm)
    23.6
    Actual Weight (kg)
    0.46
    Rim Brake Compatible
    Yes
    Nominal Rim Size
    26" (ISO 559)
    Valve Type
    Presta, Schrader
    Spoke Holes
    36 Hole
    Rim26_DM18
    Country of Manufacture
    Taiwan
    Rim ERD
    543
    Rim Width (mm)
    24
    Actual Weight (kg)
    0.53
    Rim Brake Compatible
    Yes
    Nominal Rim Size
    26" (ISO 559)
    Valve Type
    Schrader
    Spoke Holes
    36 Hole
    Rim26_DM30
    Rim ERD
    545
    Rim Width (mm)
    30
    Actual Weight (kg)
    0.6
    Rim Brake Compatible
    Yes
    Nominal Rim Size
    26" (ISO 559)
    Valve Type
    Presta, Schrader
    Spoke Holes
    36 Hole
    Rim26J31
    Country of Manufacture
    China
    Rim ERD
    527
    Rim Width (mm)
    31
    Actual Weight (kg)
    0.7800
    Rim Brake Compatible
    No
    Nominal Rim Size
    26" (ISO 559)
    Valve Type
    Schrader
    Spoke Holes
    36 Hole
    Rim26_Fat
    Country of Manufacture
    China
    Rim ERD
    537
    Rim Width (mm)
    65
    Actual Weight (kg)
    1.06
    Rim Brake Compatible
    No
    Nominal Rim Size
    26" (ISO 559)
    Valve Type
    Schrader
    Spoke Holes
    36 Hole
    Rim275_DM30
    Country of Manufacture
    China
    Rim ERD
    571
    Rim Width (mm)
    30
    Actual Weight (kg)
    0.76
    Rim Brake Compatible
    Yes
    Nominal Rim Size
    650B (ISO 584)
    Valve Type
    Schrader
    Spoke Holes
    36 Hole
    Rim700_ZAC19
    Country of Manufacture
    Taiwan
    Rim ERD
    603.86
    Rim Width (mm)
    23.6
    Actual Weight (kg)
    0.5
    Rim Brake Compatible
    Yes
    Nominal Rim Size
    700C (ISO 622)
    Valve Type
    Presta, Schrader
    Spoke Holes
    36 Hole
    Rim700_Alex
    Country of Manufacture
    Taiwan
    Rim ERD
    606
    Rim Width (mm)
    32
    Actual Weight (kg)
    0.80
    Rim Brake Compatible
    Yes
    Nominal Rim Size
    700C (ISO 622)
    Valve Type
    Schrader
    Spoke Holes
    36 Hole
    Rim700_DM18
    Country of Manufacture
    Taiwan
    Rim ERD
    607
    Rim Width (mm)
    24
    Actual Weight (kg)
    0.6
    Rim Brake Compatible
    Yes
    Nominal Rim Size
    700C (ISO 622)
    Valve Type
    Schrader
    Spoke Holes
    36 Hole
    7 Speed Cassette, 11-32 Tooth
    Country of Manufacture
    Taiwan
    Actual Weight (kg)
    0.226
    Cluster Type
    Freehub Cluster
    8 Speed Cassette, 11-32 Tooth
    Country of Manufacture
    Taiwan
    Actual Weight (kg)
    0.286
    Cluster Type
    Freehub Cluster
    9 Speed Cassette, 11-32 Tooth
    Country of Manufacture
    Taiwan
    Actual Weight (kg)
    0.364
    Cluster Type
    Freehub Cluster
    10 Speed Cassette, 11-32 Tooth
    Country of Manufacture
    Taiwan
    Actual Weight (kg)
    0.364
    Cluster Type
    Freehub Cluster
    More Information
    Product Attachments
    TSM-A5 Installation Guide (2.64 MB)
    TDCM HCA5 Motor Dimensional Drawing (70.99 kB)
