TDCM IGH Kit, Advanced PAS

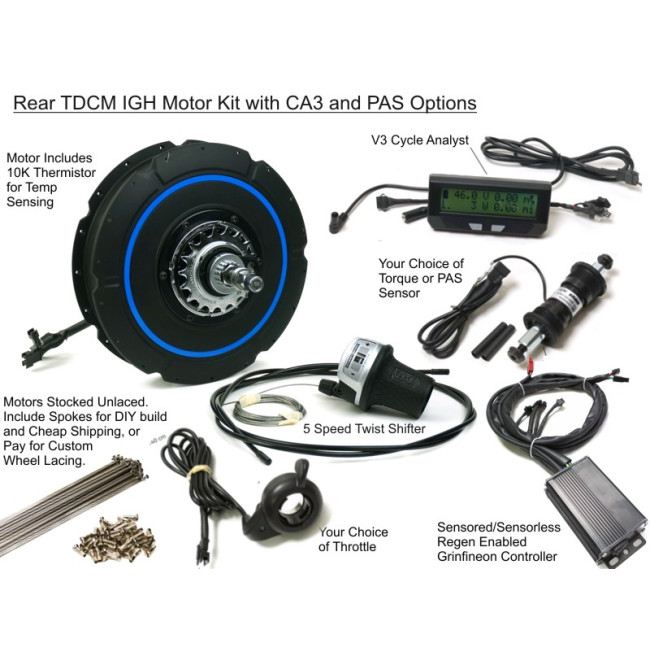

Rear TDCM Internal Gear Hub Motor Kit with V3 Cycle Analyst and PAS/Torque Sensor Options

Out of stock

SKU
K-TDCM_IGH_Adv
Customize TDCM IGH Kit, Advanced PAS

* Required Fields

Your Customization
TDCM 5Spd Internal Gear Hub, Advanced PAS Conversion Kit
Summary
    Rear TDCM direct drive hub motor kit with internal 5 speed Sturmey Archer hub and Grin Statorade compatible for effective motor cooling. Motors are all stocked unlaced, which results in the fastest lead time and cheapest shipping. For a hand built wheel, please select the rim, spokes, and wheel lacing labour items as well, and expect a 3-4 day additional wheel building delay. You have options of 20-40A regen capable infineon controller, wiring accessories, and PAS or Torque Sensor Options for the V3 Cycle Analyst. Requires 1/8" Chain and is best with slotted horizontal dropouts. Does not use work with conventional torque arms and supplied anti-rotation plate can be difficult to engage in shallow vertical dropouts.

    For details on the PAS/Torque sensor selection, see the Advanced PAS Kit Info Page

    Rim20_Alex
    Actual Weight (kg)
    0.48
    Rim Width (mm)
    32
    Spoke Holes
    36 Hole
    Nominal Rim Size
    20" (ISO 406)
    Rim ERD
    390
    Rim Brake Compatible
    Yes
    Valve Type
    Schrader
    Rim24J31
    Actual Weight (kg)
    0.7000
    Rim Width (mm)
    31
    Spoke Holes
    36 Hole
    Nominal Rim Size
    24" (ISO 507)
    Rim ERD
    477
    Rim Brake Compatible
    No
    Valve Type
    Schrader
    Rim26_DM18
    Actual Weight (kg)
    0.53
    Rim Width (mm)
    24
    Spoke Holes
    36 Hole
    Nominal Rim Size
    26" (ISO 559)
    Rim ERD
    543
    Rim Brake Compatible
    Yes
    Valve Type
    Schrader
    Rim700_Alex
    Actual Weight (kg)
    0.80
    Rim Width (mm)
    32
    Spoke Holes
    36 Hole
    Nominal Rim Size
    700C (ISO 622)
    Rim ERD
    606
    Rim Brake Compatible
    Yes
    Valve Type
    Schrader
    Rim700_DM18
    Actual Weight (kg)
    0.6
    Rim Width (mm)
    24
    Spoke Holes
    36 Hole
    Nominal Rim Size
    700C (ISO 622)
    Rim ERD
    607
    Rim Brake Compatible
    Yes
    Valve Type
    Schrader
    Phaserunner_MT
    Dimensions (L x W x H, mm)
    99 x 40 x 34
    Actual Weight (kg)
    0.26
    Max Regen Voltage (V)
    90
    Max Battery Amps (A)
    40
    Max Phase Amps (A)
    96
    Battery Range (V)
    30-90
    Connector(s)
    Anderson, JST-SM, MT60, TRRS, XT60
    Phaserunner_MT_Bk
    Dimensions (L x W x H, mm)
    99 x 40 x 34
    Actual Weight (kg)
    0.26
    Max Battery Amps (A)
    40
    Max Phase Amps (A)
    96
    Battery Range (V)
    30-90
    Connector(s)
    Anderson, JST-SM, MT60, TRRS, XT60
    24 Pole PAS (Short 90cm Cable)
    Actual Weight (kg)
    .06
    Connector(s)
    JST-SM
    PAS Poles
    24
    PAS Encoder Type
    2 Wire (Quadrature)
