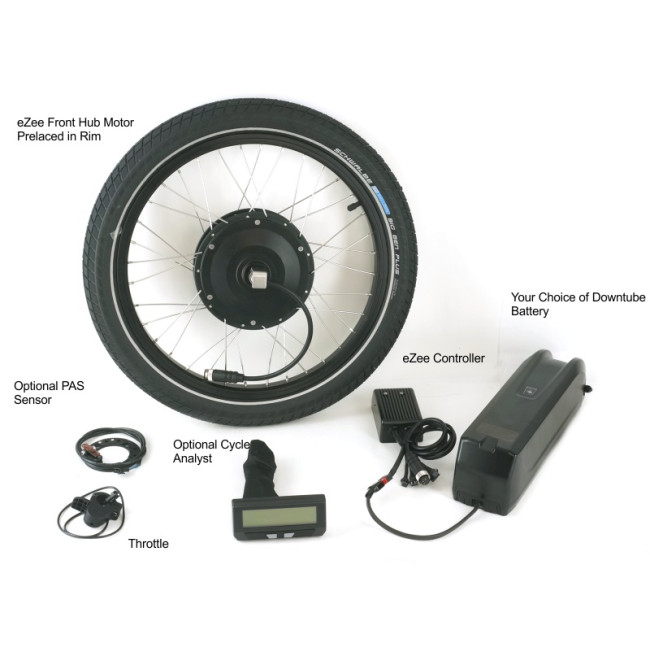

main product photo
Loading...

eZee Front Basic Kit

Discontinued

The New eZee Basic Geared Front Motor Kit, with Downtube Battery, eZee Controller, Cycle Analyst and PAS/Torque Sensor Options.

In stock

SKU
KIT-eZee-basic
Customize eZee Front Basic Kit
L10_Extension-short

* Required Fields

Your Customization
eZee Front Basic Kit
Summary

    The new L10 eZee basic kit with downtube battery and eZee 25A controller. The motor features 0.35mm laminations and uses the L10 connector standard with internal thermistor and 6 pole speed sensor. Available prelaced in 20", 24", 26" and 700c (29") wheels with tube and tire included, or as a bare unlaced hub motor for custom wheelbuild projects.

    Kit includes various PAS or Torque Sensor Options. For a full explanation of the various drop-down choices and a comparison of this package versus other motor options, see our Grin Kits Info Page

    For details on the PAS/Torque sensor selection, see the PAS Sensor Info Page

    Specifications
    eZee Front Standard Wind Pre-laced 24"
    Actual Weight (kg)
    6.6000
    Country of Manufacture
    China
    Motor Nominal Wheel Size
    24" (ISO 507)
    Motor Power Range (Watts)
    250-500
    Motor KV (RPM / V)
    8.1
    Phase Resistance (Ohm)
    0.075
    Disk Brake Compatible
    Yes
    Connector(s)
    L1019
    Thermistor Style
    10K NTC, B~3900
    Axle Length (O.L.D.)
    100
    Axle Threads
    M12 x 1.25mm
    Rim Brake Compatible
    Yes
    Rim Width (mm)
    23
    Spoke Holes
    36 Hole
    Motor Type
    Geared
    Flange Spoke Diameter (mm)
    173
    Magnetic Pole Pairs (Phaserunner)
    80
    Speedo Poles (for CA)
    6
    Hysteresis Losses (N-m)
    0.58
    Eddie Losses (N-m / rad/sec)
    0.039
    Motor Inductance (H)
    0.00015
    eZee Front Standard Wind Pre-laced 26"
    Actual Weight (kg)
    7
    Country of Manufacture
    China
    Motor Nominal Wheel Size
    26" (ISO 559)
    Motor Power Range (Watts)
    500-1000
    Motor KV (RPM / V)
    8.1
    Phase Resistance (Ohm)
    0.075
    Disk Brake Compatible
    Yes
    Connector(s)
    L1019
    Thermistor Style
    10K NTC, B~3900
    Axle Length (O.L.D.)
    100
    Axle Threads
    M12 x 1.25mm
    Rim Brake Compatible
    Yes
    Rim Width (mm)
    23
    Spoke Holes
    36 Hole
    Motor Type
    Geared
    Flange Spoke Diameter (mm)
    173
    Magnetic Pole Pairs (Phaserunner)
    80
    Speedo Poles (for CA)
    6
    Hysteresis Losses (N-m)
    0.58
    Eddie Losses (N-m / rad/sec)
    0.039
    Motor Inductance (H)
    0.00015
    12 Pole PAS with Standard Crank-mounted Magdisc
    Country of Manufacture
    China
    Manufacturer
    King Meter
    Actual Weight (kg)
    0.12
    PAS Poles
    12
    PAS Encoder Type
    2 Wire (Quadrature)
    Sensor Supply Voltage
    5-12V
    12 Pole PAS with Chainring Mounted Magdisc
    Country of Manufacture
    China
    PAS Poles
    12
    PAS Encoder Type
    2 Wire (Quadrature)
    Sensor Supply Voltage
    5-12V
    24 Pole PAS (Short 90cm Cable)
    Country of Manufacture
    China
    Actual Weight (kg)
    .06
    Connector(s)
    JST-SM
    PAS Poles
    24
    PAS Encoder Type
    2 Wire (Quadrature)
    Sensor Supply Voltage
    5-12V
    24 Pole PAS (Long 120cm Cable)
    Actual Weight (kg)
    .06
    Connector(s)
    JST-SM
    PAS Poles
    24
    PAS Encoder Type
    2 Wire (Quadrature)
    Sensor Supply Voltage
    5-12V
    Fischer AG Torque Sensing BB, 127mm
    Country of Manufacture
    Germany
    Actual Weight (kg)
    0.3300
    Connector(s)
    JST-SM, Higo MiniB
    PAS Poles
    18
    PAS Encoder Type
    2 Wire (Quadrature)
    Sensor Supply Voltage
    10-16V
    Torque Scale
    50 Nm/V
    Torque Sensor Offset Voltage
    0.6
    ERider68-T17 BB with 4 Arm Spider
    Country of Manufacture
    China
    Actual Weight (kg)
    1.06
    Connector(s)
    Higo Signal C, JST-SM
    PAS Poles
    18
    PAS Encoder Type
    2 Wire (Quadrature)
    Sensor Supply Voltage
    5-15V
    Torque Scale
    70 Nm/V
    Torque Sensor Offset Voltage
    1.5V
    ERider68-T17 BB with 5 Arm Spider
    Country of Manufacture
    China
    Actual Weight (kg)
    1.06
    Connector(s)
    Higo Signal C, JST-SM
    PAS Poles
    18
    PAS Encoder Type
    2 Wire (Quadrature)
    Sensor Supply Voltage
    5-15V
    Torque Scale
    70 Nm/V
    Torque Sensor Offset Voltage
    1.5V
    ERider73-T17 BB with 4 Arm Spider/Claw
    Country of Manufacture
    China
    Actual Weight (kg)
    1.06
    Connector(s)
    Higo Signal C, JST-SM
    PAS Poles
    18
    PAS Encoder Type
    2 Wire (Quadrature)
    Sensor Supply Voltage
    5-15V
    Torque Scale
    70 Nm/V
    Torque Sensor Offset Voltage
    1.5V
    ERider73-T17 BB with 5 Arm Spider
    Country of Manufacture
    China
    Actual Weight (kg)
    1.06
    Connector(s)
    Higo Signal C, JST-SM
    PAS Poles
    18
    PAS Encoder Type
    2 Wire (Quadrature)
    Sensor Supply Voltage
    5-15V
    Torque Scale
    70 Nm/V
    Torque Sensor Offset Voltage
    1.5V
    36V 10Ah Bottle Battery
    Actual Weight (kg)
    2.2
    Dimensions (L x W x H, mm)
    295x78x78
    Country of Manufacture
    China
    Battery Mount Location
    Frame Mount
    Nominal Voltage
    36 Volt (10s)
    Full Charge Voltage
    42.0
    Capacity (Amp-Hours)
    9.8
    Watt-hours at 1C Discharge
    345
    Cell Type
    Panasonic GA 10S x 4P
    Internal Resistance (Ohms)
    0.19
    Connector(s)
    Anderson, ST3
    36V 14.5Ah DT, 21700A,40A BMS
    Actual Weight (kg)
    3.15
    Dimensions (L x W x H, mm)
    365x100x105
    Country of Manufacture
    China
    Battery Mount Location
    Frame Mount
    Nominal Voltage
    36 Volt (10s)
    Full Charge Voltage
    42.0
    Capacity (Amp-Hours)
    14.5
    Cell Type
    Samsung INR21700-50G 10S x 3P
    Connector(s)
    Anderson, DT_4pinSpade, ST3
    36V 19Ah Downtube Battery
    Actual Weight (kg)
    4.02
    Dimensions (L x W x H, mm)
    365x95x100
    Country of Manufacture
    China
    Battery Mount Location
    Frame Mount
    Nominal Voltage
    36 Volt (10s)
    Full Charge Voltage
    42.0
    Capacity (Amp-Hours)
    19.25
    Cell Type
    Samsung INR21700-50G 10S x 4P
    Connector(s)
    Anderson, DT_4pinSpade, ST3
    36V 22Ah eZee Flat Pack
    Manufacturer
    eZee
    Actual Weight (kg)
    4.4
    Dimensions (L x W x H, mm)
    348x141x59
    Country of Manufacture
    China
    Battery Mount Location
    Rear Rack
    Nominal Voltage
    36 Volt (10s)
    Full Charge Voltage
    42
    Capacity (Amp-Hours)
    21.5
    Cell Type
    LG 18650 MH1, 10S x 7P
    Internal Resistance (Ohms)
    0
    Connector(s)
    Anderson, XLR
    36V 24Ah Downtube Battery
    Actual Weight (kg)
    4.8
    Dimensions (L x W x H, mm)
    365x95x124
    Country of Manufacture
    China
    Battery Mount Location
    Frame Mount, Rear Rack
    Nominal Voltage
    36 Volt (10s)
    Full Charge Voltage
    42
    Capacity (Amp-Hours)
    24
    Cell Type
    Samsung INR21700-50G 10S x 5P
    Internal Resistance (Ohms)
    0.80
    Connector(s)
    Anderson, ST3
    48V 10Ah Bottle Battery
    Actual Weight (kg)
    2.7
    Dimensions (L x W x H, mm)
    363x78x78
    Country of Manufacture
    China
    Battery Mount Location
    Frame Mount
    Nominal Voltage
    48 Volt (13s)
    Full Charge Voltage
    42.0
    Capacity (Amp-Hours)
    9.9
    Watt-hours at 1C Discharge
    450
    Cell Type
    Panasonic GA 13S x 3P
    Internal Resistance (Ohms)
    0.170
    Connector(s)
    Anderson, ST3
    48V 14.5Ah Downtube Battery
    Actual Weight (kg)
    4.0
    Dimensions (L x W x H, mm)
    365x100x105
    Country of Manufacture
    China
    Battery Mount Location
    Frame Mount
    Nominal Voltage
    48 Volt (13s)
    Full Charge Voltage
    54.5
    Cell Type
    Samsung INR21700-50G 13S x 3P
    Connector(s)
    Anderson, DT_4pinSpade
    48V 19Ah Downtube Battery
    Actual Weight (kg)
    4.9
    Dimensions (L x W x H, mm)
    365x100x124
    Country of Manufacture
    China
    Battery Mount Location
    Frame Mount
    Nominal Voltage
    48 Volt (13s)
    Full Charge Voltage
    54.6
    Capacity (Amp-Hours)
    19
    Cell Type
    Samsung INR21700-50G 13S x 4P
    Internal Resistance (Ohms)
    0.12
    Connector(s)
    Anderson, ST3
    52V 20Ah Downtube Battery
    Actual Weight (kg)
    5.38
    Dimensions (L x W x H, mm)
    370x89x137
    Country of Manufacture
    China
    Battery Mount Location
    Frame Mount
    Nominal Voltage
    52 Volt (14s)
    Full Charge Voltage
    58.8
    Capacity (Amp-Hours)
    19.8
    Cell Type
    Panasonic GA 14S x 6P
    Internal Resistance (Ohms)
    0.12
    Connector(s)
    Anderson, ST3
    52V 29Ah Fuel tank Battery
    Actual Weight (kg)
    7.45
    Dimensions (L x W x H, mm)
    383x184x173
    Country of Manufacture
    China
    Battery Mount Location
    Frame Mount
    Nominal Voltage
    52 Volt (14s)
    Full Charge Voltage
    58.8
    Capacity (Amp-Hours)
    29
    Cell Type
    Samsung INR21700-50G 14S x 6P
    Internal Resistance (Ohms)
    100
    Connector(s)
    Anderson, ST3
    36V 2A ST3 Charger
    Country of Manufacture
    China
    Actual Weight (kg)
    0.36
    Charger Current (A)
    2.0
    Connector(s)
    ST3
    Charge Port Connector
    ST3
    Charger Voltage
    36V (42.0V max)
    36V 4A ST3 Charger
    Country of Manufacture
    China
    Actual Weight (kg)
    0.58
    Charger Current (A)
    4.0
    Connector(s)
    ST3
    Charge Port Connector
    ST3
    Charger Voltage
    36V (42.0V max)
    36V 4A XLR Charger
    Country of Manufacture
    China
    Actual Weight (kg)
    0.98
    Charger Current (A)
    4
    Connector(s)
    XLR
    Charge Port Connector
    3 Pin XLR
    Charger Voltage
    36V (42.0V max)
    48V 4A ST3 Charger
    Country of Manufacture
    China
    Actual Weight (kg)
    0.98
    Dimensions (L x W x H, mm)
    197x82x46
    Charger Current (A)
    4
    Connector(s)
    ST3
    Charge Port Connector
    ST3
    Charger Voltage
    48V (54.6V max)
    48V 2A ST3 Charger
    Country of Manufacture
    China
    Actual Weight (kg)
    0.56
    Dimensions (L x W x H, mm)
    169x71x40
    Charger Current (A)
    2
    Connector(s)
    ST3
    Charge Port Connector
    ST3
    Charger Voltage
    48V (54.6V max)
    48V 2A XLR Charger
    Country of Manufacture
    China
    Actual Weight (kg)
    0.5
    Charger Current (A)
    2.0
    Connector(s)
    XLR
    Charge Port Connector
    3 Pin XLR
    Charger Voltage
    48V (54.6V max)
    52V 2A ST3 Charger
    Country of Manufacture
    China
    Actual Weight (kg)
    .58
    Dimensions (L x W x H, mm)
    170x72x34
    Charger Current (A)
    2.0
    Pack Discharge with AC Unplugged (mA)
    14
    Connector(s)
    ST3
    Charge Port Connector
    ST3
    Charger Voltage
    52V (58.8V max)
    52V 2A XLR Charger
    Country of Manufacture
    China
    Actual Weight (kg)
    0.5
    Dimensions (L x W x H, mm)
    170x72x34
    Charger Current (A)
    2.0
    Pack Discharge with AC Unplugged (mA)
    14
    Connector(s)
    XLR
    Charge Port Connector
    3 Pin XLR
    Charger Voltage
    52V (58.8V max)
    52V 4A XLR Charger
    Actual Weight (kg)
    0.88
    Dimensions (L x W x H, mm)
    170x72x34
    Connector(s)
    XLR
    Charge Port Connector
    3 Pin XLR
    Charger Voltage
    52V (58.8V max)
    52V 4A ST-3 Charger
    Country of Manufacture
    China
    Actual Weight (kg)
    0.84
    Charger Current (A)
    4.0
    Pack Discharge with AC Unplugged (mA)
    14
    Connector(s)
    ST3
    Satiator Upgrade with ST3 Adapter
    Actual Weight (kg)
    1.06
    Charger Current (A)
    8
    V6 Baserunner_L10
    Manufacturer
    Grin
    Country of Manufacture
    Canada
    Dimensions (L x W x H, mm)
    90 x 55 x 15
    Actual Weight (kg)
    0.18
    Max Regen Voltage (V)
    60
    Max Battery Amps (A)
    35
    Max Phase Amps (A)
    80
    Battery Range (V)
    20-60
    Low Voltage Cutoff (V)
    Programmable
    Connector(s)
    Higo 0812(WP8), Higo Signal C, Mains D1109
    V6 Phaserunner L10 - Silver
    Manufacturer
    Grin
    Country of Manufacture
    Canada
    Dimensions (L x W x H, mm)
    99 x 40 x 34
    Actual Weight (kg)
    0.26
    Max Battery Amps (A)
    40
    Max Phase Amps (A)
    90
    Battery Range (V)
    30-90
    Low Voltage Cutoff (V)
    Programmable
    Connector(s)
    Anderson, Higo 0812(WP8), L1019, TRRS, XT60, Higo MiniB, Mains D1109
    V6 Phaserunner L10 - Black
    Manufacturer
    Grin
    Country of Manufacture
    Canada
    Dimensions (L x W x H, mm)
    99 x 40 x 34
    Actual Weight (kg)
    0.26
    Max Battery Amps (A)
    40
    Max Phase Amps (A)
    90
    Battery Range (V)
    30-90
    Low Voltage Cutoff (V)
    Programmable
    Connector(s)
    Anderson, Higo 0812(WP8), L1019, TRRS, XT60, Higo MiniB, Mains D1109
    CA3-DPS
    Manufacturer
    Grin
    Actual Weight (kg)
    0.31
    12 Pole PAS with Standard Crank-mounted Magdisc
    Country of Manufacture
    China
    Manufacturer
    King Meter
    Actual Weight (kg)
    0.12
    PAS Poles
    12
    PAS Encoder Type
    2 Wire (Quadrature)
    Sensor Supply Voltage
    5-12V
    12 Pole PAS with Chainring Mounted Magdisc
    Country of Manufacture
    China
    PAS Poles
    12
    PAS Encoder Type
    2 Wire (Quadrature)
    Sensor Supply Voltage
    5-12V
    24 Pole PAS (Short 90cm Cable)
    Country of Manufacture
    China
    Actual Weight (kg)
    .06
    Connector(s)
    JST-SM
    PAS Poles
    24
    PAS Encoder Type
    2 Wire (Quadrature)
    Sensor Supply Voltage
    5-12V
    24 Pole PAS (Long 120cm Cable)
    Actual Weight (kg)
    .06
    Connector(s)
    JST-SM
    PAS Poles
    24
    PAS Encoder Type
    2 Wire (Quadrature)
    Sensor Supply Voltage
    5-12V
    Fischer AG Torque Sensing BB, 127mm
    Country of Manufacture
    Germany
    Actual Weight (kg)
    0.3300
    Connector(s)
    JST-SM, Higo MiniB
    PAS Poles
    18
    PAS Encoder Type
    2 Wire (Quadrature)
    Sensor Supply Voltage
    10-16V
    Torque Scale
    50 Nm/V
    Torque Sensor Offset Voltage
    0.6
    ERider68-T17 BB with 4 Arm Spider
    Country of Manufacture
    China
    Actual Weight (kg)
    1.06
    Connector(s)
    Higo Signal C, JST-SM
    PAS Poles
    18
    PAS Encoder Type
    2 Wire (Quadrature)
    Sensor Supply Voltage
    5-15V
    Torque Scale
    70 Nm/V
    Torque Sensor Offset Voltage
    1.5V
    ERider68-T17 BB with 5 Arm Spider
    Country of Manufacture
    China
    Actual Weight (kg)
    1.06
    Connector(s)
    Higo Signal C, JST-SM
    PAS Poles
    18
    PAS Encoder Type
    2 Wire (Quadrature)
    Sensor Supply Voltage
    5-15V
    Torque Scale
    70 Nm/V
    Torque Sensor Offset Voltage
    1.5V
    ERider73-T17 BB with 4 Arm Spider/Claw
    Country of Manufacture
    China
    Actual Weight (kg)
    1.06
    Connector(s)
    Higo Signal C, JST-SM
    PAS Poles
    18
    PAS Encoder Type
    2 Wire (Quadrature)
    Sensor Supply Voltage
    5-15V
    Torque Scale
    70 Nm/V
    Torque Sensor Offset Voltage
    1.5V
    ERider73-T17 BB with 5 Arm Spider
    Country of Manufacture
    China
    Actual Weight (kg)
    1.06
    Connector(s)
    Higo Signal C, JST-SM
    PAS Poles
    18
    PAS Encoder Type
    2 Wire (Quadrature)
    Sensor Supply Voltage
    5-15V
    Torque Scale
    70 Nm/V
    Torque Sensor Offset Voltage
    1.5V
    More Information
    Product Attachments
    eZee Front Motor Dimensional Diagram (87.28 kB)
    eZee Front Motor Dimensional Diagram (87.28 kB)
    12 Pole PAS Specifications and Installation Guide (462.79 kB)
    12 Pole PAS Specifications and Installation Guide (462.79 kB)
    24 Pole PAS Specifications and Installation Guide (468.83 kB)
    24 Pole PAS Specifications and Installation Guide (468.83 kB)
    FAGTorqueSensingBBManual-Grin (281.79 kB)
    ERider T17 Installation Manual (896.13 kB)
    ERider T17 Installation Manual (896.13 kB)
    ERider T17 Installation Manual (896.13 kB)
    ERider T17 Installation Manual (896.13 kB)
    Grin Downtube Battery User Manual (1.02 MB)
    36V 10Ah Bottle Battery Discharge Curves (52.27 kB)
    Battery Care Guide - Japanese(translated by a happy customer in Japan) (117.72 kB)
    Grin Downtube Battery User Manual (1.02 MB)
    Samsung 50G Cell Detailed Datasheet (2.21 MB)
    36V 14.5Ah Downtube Discharge Curves (44.17 kB)
    Grin Downtube Battery User Manual (1.02 MB)
    Samsung 50G Cell Detailed Datasheet (2.21 MB)
    36V 19Ah Downtube Discharge Curves (46.05 kB)
    eZee 36V 15Ah Lithium Battery Manual (395.21 kB)
    eZee 36V 14Ah Lithium Battery Manual (195.08 kB)
    36V 22Ah eZee Discharge Curves (45.69 kB)
    Grin Downtube Battery User Manual (1.02 MB)
    Samsung 50G Cell Detailed Datasheet (2.21 MB)
    36V 24Ah Downtube Discharge Curves (47.46 kB)
    Grin Downtube Battery User Manual (1.02 MB)
    48V 10Ah Bottle Battery Discharge Curves (52.11 kB)
    Grin Downtube Battery User Manual (1.02 MB)
    Samsung 50G Cell Detailed Datasheet (2.21 MB)
    48V 14.5Ah Downtube Discharge Curves (45.29 kB)
    Grin Downtube Battery User Manual (1.02 MB)
    Samsung 50G Cell Detailed Datasheet (2.21 MB)
    48V 19Ah Downtube Discharge Curves (45.00 kB)
    Grin Downtube Battery User Manual (1.02 MB)
    52V 20Ah Downtube Discharge Curves (46.89 kB)
    Grin Downtube Battery User Manual (1.02 MB)
    Samsung 50G Cell Detailed Datasheet (2.21 MB)
    52V 29Ah Downtube Discharge Curves (46.80 kB)
    Satiator User Manual for 1.0X Firmware (1.20 MB)
    Satiator CAD Model [IGS] (9.64 MB)
    Satiator Brochure (1.55 MB)
    Satiator Charger User Manual [PDF] (4.28 MB)
    V6 Baserunner User Manual (2.50 MB)
    Phaserunner Dimensional Diagram (111.82 kB)
    Phaserunner User Manual V2 (1.45 MB)
    Phaserunner V3 Updates (538.75 kB)
    Phaserunner V6 Manual (2.36 MB)
    Phaserunner V6 Manual (2.36 MB)
    Phaserunner Dimensional Diagram (111.82 kB)
    Cycle Analyst Version 3.1 User Manual, Rev1.2 (2.46 MB)
    Torque Arm V2 Installation and Specifications (65.42 kB)
    Torque Arm V3 Installation and Specifications (74.75 kB)
    V5, V6, and V7 Full Scale Reference Drawings (58.36 kB)
    TA_V5_Manual_rev0 (894.44 kB)
    V5, V6, and V7 Full Scale Reference Drawings (58.36 kB)
    V6 Torque Arm, Current Installation Manual (2.02 MB)
