Longtail Cargo Ebike, All-Axle Motor and Superharness

Summary:

This is a limited-run production of modern high performance cargo ebike based around the original 2014 Edgerunner frameset but with several upgrades like welded in 'V' racks and an integrated centerstand. This package includes everything for the most flushed out cargo bike platform, using the Vancouver made all-axle rear hub motor, baserunner controller, and a nearly 1kWhr battery pack that can easily push 100 km on a charge.

The 20" rear wheel on this platform has two great advantages, it lowers the height of the rear rack for cargo and passengers for more stability, and it improves the hauling performance of hub motors from the smaller radius. With the direct drive All Axle motor this machine can easily navigate the hills around Vancouver with cargo in tow.

The regenerative braking can be modulated through a bidirectional throttle and also the brake levers and means maintenance free stopping in all weather without the constant brake adjustments needed, while the powerful hydraulic brakes are always on the ready for emergency stops.

Features include:

• Stable center-stand allows safe loading
• Poweful Regenerative Braking
• Silent, Direct Drive, Zero Maintenance Hub Motor
• Torque-controlled assist (with throttle as well)
• Included footrests for adult passengers

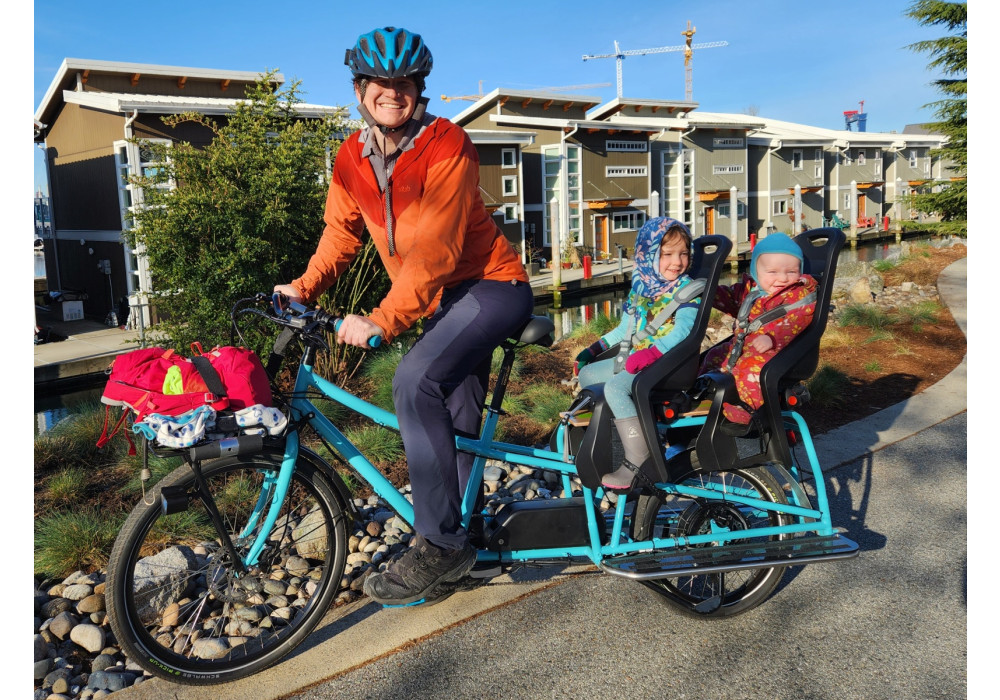

• Options for one or two child seats on the rear
• Non-proprietary hardware allows all kinds of future upgrades and component swaps

Component Specs:

• Tektro hydaulic disk brakes
• Magura rotors 180mm Front and rear
• Schwalbe Pickup E50 Rated tires 2.0 inch
• Sram GX 10 speed drivetrain
• Battery: 48V, 19Ah  (48V 14.5Ah and 52V 20Ah also available)
• Controller: V6 Baserunner_L10, 80A max phase current
