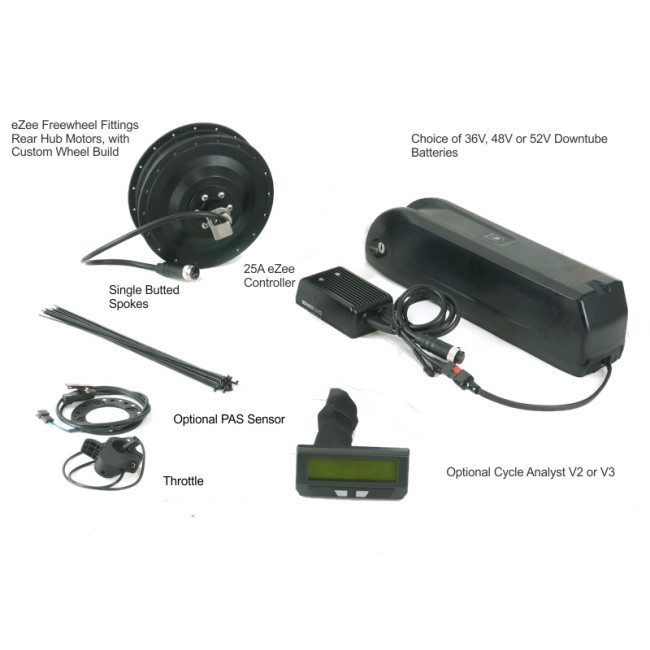

main product photo
Loading...

eZee Rear Basic Kit

Discontinued

The New eZee Basic Geared Rear Motor Kit, with Downtube Battery, eZee Controller, Cycle Analyst and PAS/Torque Sensor Options.

In stock

SKU
KIT-eZeeR-basic
Customize eZee Rear Basic Kit
Yes, Include WheelBuild
L10_Extension-short

* Required Fields

Your Customization
eZee Rear Basic Kit
Summary

    The new L10 eZee rear basic kit includes high torque geared eZee hub motor optionally laced in a quality rim, 6-9 speed freewheel, 25A eZee controller, wiring accessories, and your choice of PAS or torque sensor for pedelec modes. This is a popular kit for commuter cyclists.

    For a full explanation of the various drop-down choices and a comparison of this package versus other motor options, see our Grin Kits Info Page

    For details on the PAS/Torque sensor selection, see the Advanced PAS Kit Info Page

    Specifications
    eZee Rear Standard Wind
    Country of Manufacture
    China
    Motor KV (RPM / V)
    8.1
    Phase Resistance (Ohm)
    0.075
    Hysteresis Losses (N-m)
    0.58
    Eddy Losses (N-m / rad/sec)
    0.039
    Flange Spoke Diameter (mm)
    173
    Magnetic Pole Pairs (Phaserunner)
    80
    Actual Weight (kg)
    3.82
    Disc Brake Compatible
    Yes
    Nominal Rim Size
    Unlaced
    Motor Power Range (Watts)
    500-1000
    Axle Length (O.L.D.)
    135
    Spoke Holes
    36 Hole
    Motor Type
    Geared
    Speedo Poles (for CA)
    6
    Motor Nominal Wheel Size
    Unlaced
    Thermistor Style
    10K NTC, B~3900
    Axle Threads
    M14 x 1.5mm
    eZee Rear Fast Wind
    Country of Manufacture
    China
    Motor KV (RPM / V)
    11.1
    Phase Resistance (Ohm)
    0.038
    Hysteresis Losses (N-m)
    0.58
    Eddy Losses (N-m / rad/sec)
    0.039
    Flange Spoke Diameter (mm)
    173
    Magnetic Pole Pairs (Phaserunner)
    80
    Actual Weight (kg)
    3.86
    Disc Brake Compatible
    Yes
    Nominal Rim Size
    Unlaced
    Motor Power Range (Watts)
    500-1000
    Axle Length (O.L.D.)
    135
    Spoke Holes
    36 Hole
    Motor Type
    Geared
    Speedo Poles (for CA)
    6
    Motor Nominal Wheel Size
    Unlaced
    Thermistor Style
    10K NTC, B~3900
    Axle Threads
    M14 x 1.5mm
    7 Speed Freewheel, 11-32 Tooth
    Country of Manufacture
    China
    Actual Weight (kg)
    0.5
    Cluster Type
    Threaded Freewheel
    8 Speed Freewheel, 11-32 Tooth
    Country of Manufacture
    China
    Actual Weight (kg)
    0.62
    Cluster Type
    Threaded Freewheel
    9 Speed Freewheel, 11-32 Tooth
    Country of Manufacture
    China
    Actual Weight (kg)
    0.56
    Cluster Type
    Threaded Freewheel
    Rim16Y303
    Country of Manufacture
    Taiwan
    Rim ERD
    292
    Rim Width (mm)
    24
    Actual Weight (kg)
    0.24
    Rim Brake Compatible
    Yes
    Nominal Rim Size
    16" (ISO 305)
    Valve Type
    Schrader
    Spoke Holes
    36 Hole
    Rim16_ZAC19
    Rim ERD
    332
    Rim Width (mm)
    25
    Actual Weight (kg)
    0.6
    Rim Brake Compatible
    Yes
    Nominal Rim Size
    16" (ISO 349)
    Valve Type
    Presta, Schrader
    Spoke Holes
    36 Hole
    Rim20_ZAC19
    Rim ERD
    389
    Rim Width (mm)
    24
    Actual Weight (kg)
    0.32
    Rim Brake Compatible
    Yes
    Nominal Rim Size
    20" (ISO 406)
    Valve Type
    Presta, Schrader
    Spoke Holes
    36 Hole
    Rim20_DM30
    Rim ERD
    394
    Rim Width (mm)
    30
    Actual Weight (kg)
    0.42
    Rim Brake Compatible
    Yes
    Nominal Rim Size
    20" (ISO 406)
    Valve Type
    Presta, Schrader
    Spoke Holes
    36 Hole
    Rim20_Alex
    Country of Manufacture
    China
    Rim ERD
    390
    Rim Width (mm)
    32
    Actual Weight (kg)
    0.48
    Rim Brake Compatible
    Yes
    Nominal Rim Size
    20" (ISO 406)
    Valve Type
    Schrader
    Spoke Holes
    36 Hole
    Rim20J31
    Country of Manufacture
    China
    Rim ERD
    375
    Rim Width (mm)
    31
    Actual Weight (kg)
    0.56
    Rim Brake Compatible
    No
    Nominal Rim Size
    20" (ISO 406)
    Valve Type
    Schrader
    Spoke Holes
    36 Hole
    Rim20_Fat
    Country of Manufacture
    China
    Rim ERD
    384
    Rim Width (mm)
    65
    Actual Weight (kg)
    0.82
    Rim Brake Compatible
    No
    Nominal Rim Size
    20" (ISO 406)
    Valve Type
    Schrader
    Spoke Holes
    36 Hole
    Rim24_DM30
    Country of Manufacture
    China
    Rim ERD
    494
    Rim Width (mm)
    30
    Actual Weight (kg)
    0.56
    Rim Brake Compatible
    Yes
    Nominal Rim Size
    24" (ISO 507)
    Valve Type
    Schrader
    Spoke Holes
    36 Hole
    Rim24J31
    Country of Manufacture
    China
    Rim ERD
    477
    Rim Width (mm)
    31
    Actual Weight (kg)
    0.7000
    Rim Brake Compatible
    No
    Nominal Rim Size
    24" (ISO 507)
    Valve Type
    Schrader
    Spoke Holes
    36 Hole
    Rim24_Fat
    Country of Manufacture
    China
    Rim ERD
    485
    Rim Width (mm)
    65
    Actual Weight (kg)
    1.02
    Rim Brake Compatible
    No
    Nominal Rim Size
    24" (ISO 507)
    Valve Type
    Schrader
    Spoke Holes
    36 Hole
    Rim26_DM18
    Country of Manufacture
    Taiwan
    Rim ERD
    543
    Rim Width (mm)
    24
    Actual Weight (kg)
    0.53
    Rim Brake Compatible
    Yes
    Nominal Rim Size
    26" (ISO 559)
    Valve Type
    Schrader
    Spoke Holes
    36 Hole
    Rim26_ZAC19
    Rim ERD
    540.33
    Rim Width (mm)
    23.6
    Actual Weight (kg)
    0.46
    Rim Brake Compatible
    Yes
    Nominal Rim Size
    26" (ISO 559)
    Valve Type
    Presta, Schrader
    Spoke Holes
    36 Hole
    Rim26_DM30
    Rim ERD
    545
    Rim Width (mm)
    30
    Actual Weight (kg)
    0.6
    Rim Brake Compatible
    Yes
    Nominal Rim Size
    26" (ISO 559)
    Valve Type
    Presta, Schrader
    Spoke Holes
    36 Hole
    Rim26J31
    Country of Manufacture
    China
    Rim ERD
    527
    Rim Width (mm)
    31
    Actual Weight (kg)
    0.7800
    Rim Brake Compatible
    No
    Nominal Rim Size
    26" (ISO 559)
    Valve Type
    Schrader
    Spoke Holes
    36 Hole
    Rim26_Fat
    Country of Manufacture
    China
    Rim ERD
    537
    Rim Width (mm)
    65
    Actual Weight (kg)
    1.06
    Rim Brake Compatible
    No
    Nominal Rim Size
    26" (ISO 559)
    Valve Type
    Schrader
    Spoke Holes
    36 Hole
    Rim26_Fat80
    Rim ERD
    542
    Rim Width (mm)
    80
    Actual Weight (kg)
    .830
    Rim Brake Compatible
    No
    Nominal Rim Size
    26" (ISO 559)
    Spoke Holes
    36 Hole
    Rim275_DM30
    Country of Manufacture
    China
    Rim ERD
    571
    Rim Width (mm)
    30
    Actual Weight (kg)
    0.76
    Rim Brake Compatible
    Yes
    Nominal Rim Size
    650B (ISO 584)
    Valve Type
    Schrader
    Spoke Holes
    36 Hole
    Rim700_DM18
    Country of Manufacture
    Taiwan
    Rim ERD
    607
    Rim Width (mm)
    24
    Actual Weight (kg)
    0.6
    Rim Brake Compatible
    Yes
    Nominal Rim Size
    700C (ISO 622)
    Valve Type
    Schrader
    Spoke Holes
    36 Hole
    Rim700_ZAC19
    Country of Manufacture
    Taiwan
    Rim ERD
    603.86
    Rim Width (mm)
    23.6
    Actual Weight (kg)
    0.5
    Rim Brake Compatible
    Yes
    Nominal Rim Size
    700C (ISO 622)
    Valve Type
    Presta, Schrader
    Spoke Holes
    36 Hole
    Rim700_Alex
    Country of Manufacture
    Taiwan
    Rim ERD
    606
    Rim Width (mm)
    32
    Actual Weight (kg)
    0.80
    Rim Brake Compatible
    Yes
    Nominal Rim Size
    700C (ISO 622)
    Valve Type
    Schrader
    Spoke Holes
    36 Hole
    36V 10Ah Bottle Battery
    Country of Manufacture
    China
    Full Charge Voltage
    42.0
    Capacity (Amp-Hours)
    9.8
    Internal Resistance (Ohms)
    0.19
    Cell Type
    Panasonic GA 10S x 4P
    Watt-hours at 1C Discharge
    345
    Dimensions (L x W x H, mm)
    295x78x78
    Actual Weight (kg)
    2.2
    Nominal Voltage
    36 Volt (10s)
    Battery Mount Location
    Frame Mount
    Connector(s)
    Anderson, ST3
    Battery Cable Length (cm)
    30
    36V 14.5Ah Downtube Battery
    Country of Manufacture
    China
    Full Charge Voltage
    42.0
    Capacity (Amp-Hours)
    14.5
    Cell Type
    Samsung INR21700-50G 10S x 3P
    Dimensions (L x W x H, mm)
    365x100x105
    Actual Weight (kg)
    3.15
    Nominal Voltage
    36 Volt (10s)
    Battery Mount Location
    Frame Mount
    Connector(s)
    Anderson, DT_4pinSpade, ST3
    Battery Cable Length (cm)
    30
    36V 19Ah Downtube Battery
    Country of Manufacture
    China
    Full Charge Voltage
    42.0
    Capacity (Amp-Hours)
    19.25
    Cell Type
    Samsung INR21700-50G 10S x 4P
    Dimensions (L x W x H, mm)
    365x95x100
    Actual Weight (kg)
    4.02
    Nominal Voltage
    36 Volt (10s)
    Battery Mount Location
    Frame Mount
    Connector(s)
    Anderson, DT_4pinSpade, ST3
    Battery Cable Length (cm)
    30
    36V 22Ah eZee Flat Pack
    Manufacturer
    eZee
    Country of Manufacture
    China
    Full Charge Voltage
    42
    Capacity (Amp-Hours)
    21.5
    Internal Resistance (Ohms)
    0
    Cell Type
    LG 18650 MH1, 10S x 7P
    Dimensions (L x W x H, mm)
    348x141x59
    Actual Weight (kg)
    4.4
    Nominal Voltage
    36 Volt (10s)
    Battery Mount Location
    Rear Rack
    Connector(s)
    Anderson, XLR
    36V 24Ah Downtube Battery
    Country of Manufacture
    China
    Full Charge Voltage
    42
    Capacity (Amp-Hours)
    24
    Internal Resistance (Ohms)
    0.80
    Cell Type
    Samsung INR21700-50G 10S x 5P
    Dimensions (L x W x H, mm)
    365x95x124
    Actual Weight (kg)
    4.8
    Nominal Voltage
    36 Volt (10s)
    Battery Mount Location
    Frame Mount, Rear Rack
    Connector(s)
    Anderson, ST3
    Battery Cable Length (cm)
    30
    48V 10Ah Bottle Battery
    Country of Manufacture
    China
    Full Charge Voltage
    42.0
    Capacity (Amp-Hours)
    9.9
    Internal Resistance (Ohms)
    0.170
    Cell Type
    Panasonic GA 13S x 3P
    Watt-hours at 1C Discharge
    450
    Dimensions (L x W x H, mm)
    363x78x78
    Actual Weight (kg)
    2.7
    Nominal Voltage
    48 Volt (13s)
    Battery Mount Location
    Frame Mount
    Connector(s)
    Anderson, ST3
    Battery Cable Length (cm)
    30
    52V 20Ah Downtube Battery
    Country of Manufacture
    China
    Full Charge Voltage
    58.8
    Capacity (Amp-Hours)
    19.8
    Internal Resistance (Ohms)
    0.12
    Cell Type
    Panasonic GA 14S x 6P
    Dimensions (L x W x H, mm)
    370x89x137
    Actual Weight (kg)
    5.38
    Nominal Voltage
    52 Volt (14s)
    Battery Mount Location
    Frame Mount
    Connector(s)
    Anderson, ST3
    Battery Cable Length (cm)
    30
    52V 29Ah Fuel tank Battery
    Country of Manufacture
    China
    Full Charge Voltage
    58.8
    Capacity (Amp-Hours)
    29
    Internal Resistance (Ohms)
    100
    Cell Type
    Samsung INR21700-50G 14S x 6P
    Dimensions (L x W x H, mm)
    383x184x173
    Actual Weight (kg)
    7.45
    Nominal Voltage
    52 Volt (14s)
    Battery Mount Location
    Frame Mount
    Connector(s)
    Anderson, ST3
    Battery Cable Length (cm)
    30
    36V 2A ST3 Charger
    Country of Manufacture
    China
    Actual Weight (kg)
    0.36
    Connector(s)
    ST3
    Charger Voltage
    36V (42.0V max)
    Charge Port Connector
    ST3
    36V 4A ST3 Charger
    Country of Manufacture
    China
    Actual Weight (kg)
    0.58
    Connector(s)
    ST3
    Charger Voltage
    36V (42.0V max)
    Charge Port Connector
    ST3
    36V 4A XLR Charger
    Country of Manufacture
    China
    Actual Weight (kg)
    0.98
    Connector(s)
    XLR
    Charger Voltage
    36V (42.0V max)
    Charge Port Connector
    3 Pin XLR
    48V 4A ST3 Charger
    Country of Manufacture
    China
    Dimensions (L x W x H, mm)
    197x82x46
    Actual Weight (kg)
    0.98
    Connector(s)
    ST3
    Charger Voltage
    48V (54.6V max)
    Charge Port Connector
    ST3
    48V 2A ST3 Charger
    Country of Manufacture
    China
    Dimensions (L x W x H, mm)
    169x71x40
    Actual Weight (kg)
    0.56
    Connector(s)
    ST3
    Charger Voltage
    48V (54.6V max)
    Charge Port Connector
    ST3
    52V 2A ST3 Charger
    Country of Manufacture
    China
    Dimensions (L x W x H, mm)
    170x72x34
    Actual Weight (kg)
    .58
    Connector(s)
    ST3
    Charger Voltage
    52V (58.8V max)
    Charge Port Connector
    ST3
    52V 2A XLR Charger
    Country of Manufacture
    China
    Dimensions (L x W x H, mm)
    170x72x34
    Actual Weight (kg)
    0.5
    Connector(s)
    XLR
    Charger Voltage
    52V (58.8V max)
    Charge Port Connector
    3 Pin XLR
    52V 4A XLR Charger
    Dimensions (L x W x H, mm)
    170x72x34
    Actual Weight (kg)
    0.88
    Connector(s)
    XLR
    Charger Voltage
    52V (58.8V max)
    Charge Port Connector
    3 Pin XLR
    52V 4A ST-3 Charger
    Country of Manufacture
    China
    Actual Weight (kg)
    0.84
    Connector(s)
    ST3
    Satiator 12-63V, 0-8A with ST3 Adapter
    Actual Weight (kg)
    1.06
    V6 Baserunner_L10
    Manufacturer
    Grin
    Country of Manufacture
    Canada
    Max Phase Amps (A)
    80
    Max Battery Amps (A)
    35
    Max Regen Voltage (V)
    60
    Battery Range (V)
    20-60
    Dimensions (L x W x H, mm)
    90 x 55 x 15
    Actual Weight (kg)
    0.18
    L1019 Motor Cable Length (cm)
    38
    6 Pin HiGo Cable Length (cm)
    16.5
    WP 8 Pin Cable Length (cm)
    15.5
    Main 9 Pin Cable Length (cm)
    16
    Phaserunner V6 L10 - Stainless Silver Shell
    Manufacturer
    Grin
    Country of Manufacture
    Canada
    Max Phase Amps (A)
    90
    Max Battery Amps (A)
    40
    Battery Range (V)
    30-90
    Dimensions (L x W x H, mm)
    99 x 40 x 34
    Actual Weight (kg)
    0.26
    Phaserunner V6 L10 - Black Metal Shell
    Manufacturer
    Grin
    Country of Manufacture
    Canada
    Max Phase Amps (A)
    90
    Max Battery Amps (A)
    40
    Battery Range (V)
    30-90
    Dimensions (L x W x H, mm)
    99 x 40 x 34
    Actual Weight (kg)
    0.26
    CA3-DPS
    Manufacturer
    Grin
    Actual Weight (kg)
    0.31
    Thumb Throttle with Clamp (50cm Cable)
    Country of Manufacture
    Taiwan
    Actual Weight (kg)
    0.04
    3 Pin JST Cable Length (cm)
    50
    Right Half Twist Throttle (50cm Cable)
    Country of Manufacture
    China
    Actual Weight (kg)
    .180
    3 Pin JST Cable Length (cm)
    50
    Left Half Twist Throttle (50cm Cable)
    Country of Manufacture
    China
    Actual Weight (kg)
    .180
    3 Pin JST Cable Length (cm)
    50
    Right Full Twist Throttle (50cm Cable)
    Country of Manufacture
    Taiwan
    Actual Weight (kg)
    0.20
    3 Pin JST Cable Length (cm)
    50
    Left Full Twist Throttle (50cm Cable)
    Actual Weight (kg)
    0.22
    3 Pin JST Cable Length (cm)
    50
    12 Pole PAS with Standard Crank-mounted Magdisc
    Manufacturer
    King Meter
    Country of Manufacture
    China
    Actual Weight (kg)
    0.12
    PAS Poles
    12
    PAS Encoder Type
    2 Wire (Quadrature)
    12 Pole PAS with Chainring Mounted Magdisc
    Country of Manufacture
    China
    PAS Poles
    12
    PAS Encoder Type
    2 Wire (Quadrature)
    24 Pole PAS (Short 90cm Cable)
    Country of Manufacture
    China
    Actual Weight (kg)
    .06
    Connector(s)
    JST-SM
    PAS Poles
    24
    PAS Encoder Type
    2 Wire (Quadrature)
    24 Pole PAS (Long 120cm Cable)
    Actual Weight (kg)
    .06
    Connector(s)
    JST-SM
    PAS Poles
    24
    PAS Encoder Type
    2 Wire (Quadrature)
    Fischer AG Torque Sensing BB, 127mm
    Country of Manufacture
    Germany
    Actual Weight (kg)
    0.3300
    Connector(s)
    JST-SM, Higo MiniB
    PAS Poles
    18
    Torque Sensor Offset Voltage
    0.6
    PAS Encoder Type
    2 Wire (Quadrature)
    ERider68-T17 BB with 4 Arm Spider
    Country of Manufacture
    China
    Actual Weight (kg)
    1.06
    Connector(s)
    Higo Signal C, JST-SM
    PAS Poles
    18
    Torque Sensor Offset Voltage
    1.5V
    PAS Encoder Type
    2 Wire (Quadrature)
    ERider68-T17 BB with 5 Arm Spider
    Country of Manufacture
    China
    Actual Weight (kg)
    1.06
    Connector(s)
    Higo Signal C, JST-SM
    PAS Poles
    18
    Torque Sensor Offset Voltage
    1.5V
    PAS Encoder Type
    2 Wire (Quadrature)
    ERider68-T17 BB with 52T Chainring
    Actual Weight (kg)
    1.3
    Connector(s)
    Higo Signal C, JST-SM
    PAS Poles
    18
    Torque Sensor Offset Voltage
    1.5V
    PAS Encoder Type
    2 Wire (Quadrature)
    ERider73-T17 BB with 4 Arm Spider/Claw
    Country of Manufacture
    China
    Actual Weight (kg)
    1.06
    Connector(s)
    Higo Signal C, JST-SM
    PAS Poles
    18
    Torque Sensor Offset Voltage
    1.5V
    PAS Encoder Type
    2 Wire (Quadrature)
    ERider73-T17 BB with 5 Arm Spider
    Country of Manufacture
    China
    Actual Weight (kg)
    1.06
    Connector(s)
    Higo Signal C, JST-SM
    PAS Poles
    18
    Torque Sensor Offset Voltage
    1.5V
    PAS Encoder Type
    2 Wire (Quadrature)
    ERider73-T17 BB with 52T Chainring
    Actual Weight (kg)
    1.3
    Connector(s)
    Higo Signal C, JST-SM
    PAS Poles
    18
    Torque Sensor Offset Voltage
    1.5V
    PAS Encoder Type
    2 Wire (Quadrature)
    Dual Ebrake Levers (50cm Cable)
    Country of Manufacture
    China
    Actual Weight (kg)
    0.30
    3 Pin JST Cable Length (cm)
    47
    More Information
    Product Attachments
    eZee Gen2 Motor Dimensional Diagram (55.85 kB)
    eZee_17Years_Story (16.55 MB)
    eZee Gen2 Motor Dimensional Diagram (55.85 kB)
    eZee_17Years_Story (16.55 MB)
    Grin Downtube Battery User Manual (1.02 MB)
    36V 10Ah Bottle Battery Discharge Curves (52.27 kB)
    Battery Care Guide - Japanese(translated by a happy customer in Japan) (117.72 kB)
    Grin Downtube Battery User Manual (1.02 MB)
    Samsung 50G Cell Detailed Datasheet (2.21 MB)
    36V 14.5Ah Downtube Discharge Curves (44.17 kB)
    eZee 36V 14Ah Lithium Battery Manual (195.08 kB)
    Grin Downtube Battery User Manual (1.02 MB)
    Samsung 50G Cell Detailed Datasheet (2.21 MB)
    36V 19Ah Downtube Discharge Curves (46.05 kB)
    eZee 36V 15Ah Lithium Battery Manual (395.21 kB)
    eZee 36V 14Ah Lithium Battery Manual (195.08 kB)
    36V 22Ah eZee Discharge Curves (45.69 kB)
    Grin Downtube Battery User Manual (1.02 MB)
    Samsung 50G Cell Detailed Datasheet (2.21 MB)
    36V 24Ah Downtube Discharge Curves (47.46 kB)
    Grin Downtube Battery User Manual (1.02 MB)
    48V 10Ah Bottle Battery Discharge Curves (52.11 kB)
    Grin Downtube Battery User Manual (1.02 MB)
    Samsung 50G Cell Detailed Datasheet (2.21 MB)
    48V 14.5Ah Downtube Discharge Curves (45.29 kB)
    eZee 48V 10Ah Lithium Battery Manual (196.63 kB)
    48V 15.5Ah eZee Discharge Curves (44.61 kB)
    eZee 48V 10Ah Lithium Battery with Sony Konion Cells Manual (400.56 kB)
    eZee 48V 10Ah Lithium Battery Manual (196.63 kB)
    Grin Downtube Battery User Manual (1.02 MB)
    Samsung 50G Cell Detailed Datasheet (2.21 MB)
    48V 19Ah Downtube Discharge Curves (45.00 kB)
    Grin Downtube Battery User Manual (1.02 MB)
    52V 14.5Ah Downtube Discharge Curves (45.28 kB)
    Grin Downtube Battery User Manual (1.02 MB)
    52V 20Ah Downtube Discharge Curves (46.89 kB)
    Battery Care Guide - Japanese(translated by a happy customer in Japan) (117.72 kB)
    Grin Downtube Battery User Manual (1.02 MB)
    52V 23Ah Triangle Discharge Curves (43.74 kB)
    Grin Downtube Battery User Manual (1.02 MB)
    Samsung 50G Cell Detailed Datasheet (2.21 MB)
    52V 29Ah Downtube Discharge Curves (46.80 kB)
    Battery Care Guide - Japanese(translated by a happy customer in Japan) (117.72 kB)
    Satiator User Manual for 1.0X Firmware (1.20 MB)
    Satiator CAD Model [IGS] (9.64 MB)
    Satiator Brochure (1.55 MB)
    Satiator Charger User Manual [PDF] (4.28 MB)
    Phaserunner User Manual V2 (1.45 MB)
    V4_Baserunner_Manual_Draft (1.87 MB)
    V4 Baserunner Manual (2.14 MB)
    V6 Baserunner_L10 Dimensional Diagram (51.97 kB)
    V5 Baserunner_L10 3D IGS File (497.93 kB)
    V6 Baserunner User Manual (2.50 MB)
    Phaserunner Dimensional Diagram (111.82 kB)
    Phaserunner User Manual V2 (1.45 MB)
    Phaserunner V3 Updates (538.75 kB)
    Phaserunner V6 Manual (2.36 MB)
    Phaserunner V6 Manual (2.36 MB)
    Phaserunner Dimensional Diagram (111.82 kB)
    Cycle Analyst User Manual Version 2.1 (782.99 kB)
    Cycle Analyst User Manual Version 2.2 (747.29 kB)
    Cycle Analyst Version 3.1 User Manual, Rev1.2 (2.46 MB)
    12 Pole PAS Specifications and Installation Guide (462.79 kB)
    12 Pole PAS Specifications and Installation Guide (462.79 kB)
    24 Pole PAS Specifications and Installation Guide (468.83 kB)
    24 Pole PAS Specifications and Installation Guide (468.83 kB)
    FAGTorqueSensingBBManual-Grin (281.79 kB)
    ERider T17 Installation Manual (896.13 kB)
    ERider T17 Installation Manual (896.13 kB)
    ERider T17 Installation Manual (896.13 kB)
    ERider T17 Installation Manual (896.13 kB)
    ERider T17 Installation Manual (896.13 kB)
    ERider T17 Installation Manual (896.13 kB)
    V5, V6, and V7 Full Scale Reference Drawings (58.36 kB)
    TA_V5_Manual_rev0 (894.44 kB)
    V5, V6, and V7 Full Scale Reference Drawings (58.36 kB)
    V6 Torque Arm, Current Installation Manual (2.02 MB)
    TripWire Push Short Specifications (425.65 kB)
    TripWire Pull Specifications (426.56 kB)
