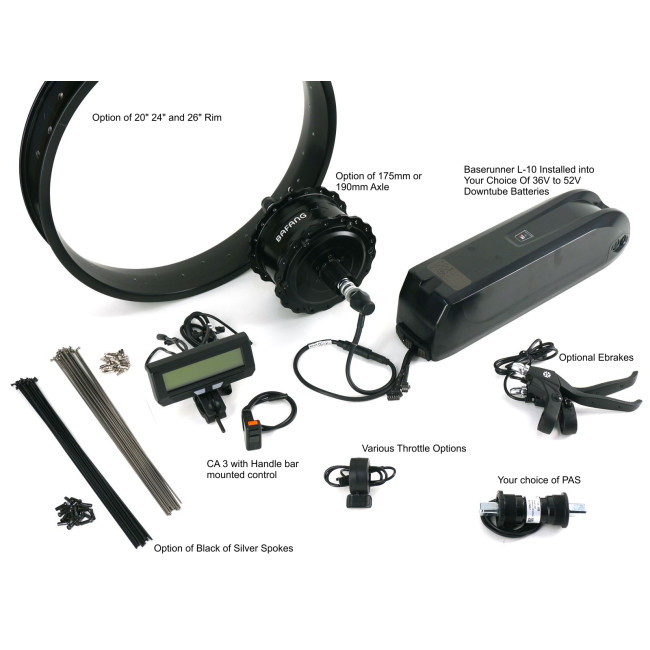

main product photo
Loading...

G60 Rear Fatbike Regen Mod CA3 Kit

Fatbike G60 CA3 Kit with a welded clutch for regen, with V3 Cycle Analyst, Downtube battery, PAS/Torque sensor options.

DISCONTINUED - Now that we have Fatbike All-Axle motors this modded G62 option is no longer needed

Out of stock

SKU
KIT-Fat_RG_RTR
Customize G60 Rear Fatbike Regen Mod CA3 Kit
V7 Regen Torque Arm 12mm
Lock Clutch Mod
CA3-WPx
CA3_MFSwitch for CA3-WPx

* Required Fields

Your Customization
Ready to Roll Kit based on Rear G310 Motor, Downtube Battery with Baserunner Controller, CA3 with PAS Options etc.
Summary

    Complete conversion kit based around the Bafang G60 rear motor for fatbikes but modified to enabled regenerative braking.

    • Baserunner motor controller tucked neatly in a downtube battery, the CA3 with accessories and pedal assist systems.
    • This setup includes everything configured out of the box for a fatbike conversion with 170-180mm rear droputs.

    For a full explanation of the various drop-down choices and a comparison of this package versus other motor options, see our Grin Kits Info Page

    For details on the PAS/Torque sensor selection, see thePAS Options Info Page

    *For installation of the G60 motors with welded clutch mod, we highly recommend that you install the v7 regen torque arm on the non-cable exit side of the axle. If there are fitment problems that prevent you from doing this and you need to install the torque arm on the cable exit side of the axle, we recommend reducing your max torque to 40nm in the controller to prevent axle breakage.*

    Specifications
    7 Speed Cassette, 11-32 Tooth
    Actual Weight (kg)
    0.226
    Cluster Type
    Freehub Cluster
    8 Speed Cassette, 11-32 Tooth
    Actual Weight (kg)
    0.286
    Cluster Type
    Freehub Cluster
    9 Speed Cassette, 11-32 Tooth
    Actual Weight (kg)
    0.364
    Cluster Type
    Freehub Cluster
    10 Speed Cassette, 11-32 Tooth
    Actual Weight (kg)
    0.364
    Cluster Type
    Freehub Cluster
    Rim20_Fat
    Actual Weight (kg)
    0.82
    Rim Width (mm)
    65
    Spoke Holes
    36 Hole
    Nominal Rim Size
    20" (ISO 406)
    Rim ERD
    384
    Rim Brake Compatible
    No
    Valve Type
    Schrader
    Rim24_Fat
    Actual Weight (kg)
    1.02
    Rim Width (mm)
    65
    Spoke Holes
    36 Hole
    Nominal Rim Size
    24" (ISO 507)
    Rim ERD
    485
    Rim Brake Compatible
    No
    Valve Type
    Schrader
    Rim26_Fat
    Actual Weight (kg)
    1.06
    Rim Width (mm)
    65
    Spoke Holes
    36 Hole
    Nominal Rim Size
    26" (ISO 559)
    Rim ERD
    537
    Rim Brake Compatible
    No
    Valve Type
    Schrader
    Rim26_Fat80
    Actual Weight (kg)
    .830
    Rim Width (mm)
    80
    Spoke Holes
    36 Hole
    Nominal Rim Size
    26" (ISO 559)
    Rim ERD
    542
    Rim Brake Compatible
    No
    CA3-WPx
    Actual Weight (kg)
    0.3
    36V 10Ah Bottle Battery
    Actual Weight (kg)
    2.2
    Dimensions (L x W x H, mm)
    295x78x78
    Battery Mount Location
    Frame Mount
    Nominal Voltage
    36 Volt (10s)
    Full Charge Voltage
    42.0
    Capacity (Amp-Hours)
    9.8
    Watt-hours at 1C Discharge
    345
    Cell Type
    Panasonic GA 10S x 4P
    Internal Resistance (Ohms)
    0.19
    Connector(s)
    Anderson, ST3
    36V 14.5Ah Downtube Battery
    Actual Weight (kg)
    3.15
    Dimensions (L x W x H, mm)
    365x100x105
    Battery Mount Location
    Frame Mount
    Nominal Voltage
    36 Volt (10s)
    Full Charge Voltage
    42.0
    Capacity (Amp-Hours)
    14.5
    Cell Type
    Samsung INR21700-50G 10S x 3P
    Connector(s)
    Anderson, DT_4pinSpade, ST3
    36V 15.5Ah eZee Flat Pack
    Manufacturer
    eZee
    Actual Weight (kg)
    3.5
    Dimensions (L x W x H, mm)
    348x141x59
    Battery Mount Location
    Rear Rack
    Nominal Voltage
    36 Volt (10s)
    Full Charge Voltage
    42
    Capacity (Amp-Hours)
    15.5
    Cell Type
    LG 18650 MH1, 10S x 5P
    Internal Resistance (Ohms)
    0
    Connector(s)
    Anderson, XLR
    36V 20Ah Downtube Battery
    Actual Weight (kg)
    4.02
    Dimensions (L x W x H, mm)
    365x95x100
    Battery Mount Location
    Frame Mount
    Nominal Voltage
    36 Volt (10s)
    Full Charge Voltage
    42.0
    Capacity (Amp-Hours)
    19.25
    Cell Type
    Samsung INR21700-50G 10S x 4P
    Connector(s)
    Anderson, DT_4pinSpade, ST3
    36V 22Ah eZee Flat Pack
    Manufacturer
    eZee
    Actual Weight (kg)
    4.4
    Dimensions (L x W x H, mm)
    348x141x59
    Battery Mount Location
    Rear Rack
    Nominal Voltage
    36 Volt (10s)
    Full Charge Voltage
    42
    Capacity (Amp-Hours)
    21.5
    Cell Type
    LG 18650 MH1, 10S x 7P
    Internal Resistance (Ohms)
    0
    Connector(s)
    Anderson, XLR
    36V 24Ah Downtube Battery
    Actual Weight (kg)
    4.8
    Dimensions (L x W x H, mm)
    365x95x124
    Battery Mount Location
    Frame Mount, Rear Rack
    Nominal Voltage
    36 Volt (10s)
    Full Charge Voltage
    42
    Capacity (Amp-Hours)
    24
    Cell Type
    Samsung INR21700-50G 10S x 5P
    Internal Resistance (Ohms)
    0.80
    Connector(s)
    Anderson, ST3
    48V 14.5Ah Downtube Battery
    Actual Weight (kg)
    4.0
    Dimensions (L x W x H, mm)
    365x100x105
    Battery Mount Location
    Frame Mount
    Nominal Voltage
    48 Volt (13s)
    Full Charge Voltage
    54.5
    Cell Type
    Samsung INR21700-50G 13S x 3P
    Connector(s)
    Anderson, DT_4pinSpade
    48V 15.5Ah eZee Flat Pack
    Manufacturer
    eZee
    Actual Weight (kg)
    4.1
    Dimensions (L x W x H, mm)
    348x141x59
    Battery Mount Location
    Rear Rack
    Nominal Voltage
    48 Volt (13s)
    Full Charge Voltage
    54.5
    Capacity (Amp-Hours)
    15.5
    Cell Type
    LG 18650 MH1, 13S x 5P
    Internal Resistance (Ohms)
    0.156
    Connector(s)
    Anderson, XLR
    48V 17Ah eZee Flat Pack
    Manufacturer
    eZee
    Actual Weight (kg)
    4.3
    Dimensions (L x W x H, mm)
    348x141x59
    Battery Mount Location
    Rear Rack
    Nominal Voltage
    48 Volt (13s)
    Full Charge Voltage
    54.5
    Capacity (Amp-Hours)
    16.5
    Cell Type
    Samsung 35E 13S x 5P
    Internal Resistance (Ohms)
    0.120
    Connector(s)
    Anderson, XLR
    48V 19Ah Downtube Battery
    Actual Weight (kg)
    4.9
    Dimensions (L x W x H, mm)
    365x100x124
    Battery Mount Location
    Frame Mount
    Nominal Voltage
    48 Volt (13s)
    Full Charge Voltage
    54.6
    Capacity (Amp-Hours)
    19
    Cell Type
    Samsung INR21700-50G 13S x 4P
    Internal Resistance (Ohms)
    0.12
    Connector(s)
    Anderson, ST3
    52V 15Ah Downtube Battery
    Actual Weight (kg)
    4.3
    Dimensions (L x W x H, mm)
    380x95x100
    Battery Mount Location
    Frame Mount
    Nominal Voltage
    52 Volt (14s)
    Full Charge Voltage
    58.8
    Capacity (Amp-Hours)
    14.5
    Cell Type
    NCR21700A 14S x 3P
    Connector(s)
    Anderson, ST3
    52V 20Ah Downtube Battery
    Actual Weight (kg)
    5.38
    Dimensions (L x W x H, mm)
    370x89x137
    Battery Mount Location
    Frame Mount
    Nominal Voltage
    52 Volt (14s)
    Full Charge Voltage
    58.8
    Capacity (Amp-Hours)
    19.8
    Cell Type
    Panasonic GA 14S x 6P
    Internal Resistance (Ohms)
    0.12
    Connector(s)
    Anderson, ST3
    52V 23Ah Triangle Battery
    Actual Weight (kg)
    6.08
    Dimensions (L x W x H, mm)
    350x400x230
    Battery Mount Location
    Frame Mount
    Nominal Voltage
    52 Volt (14s)
    Full Charge Voltage
    58.8
    Capacity (Amp-Hours)
    23.5
    Cell Type
    Panasonic GA 14S x 7P
    Connector(s)
    Anderson, ST3, XT-90S
    52V 29Ah Fuel tank Battery
    Actual Weight (kg)
    7.45
    Dimensions (L x W x H, mm)
    383x184x173
    Battery Mount Location
    Frame Mount
    Nominal Voltage
    52 Volt (14s)
    Full Charge Voltage
    58.8
    Capacity (Amp-Hours)
    29
    Cell Type
    Samsung INR21700-50G 14S x 6P
    Internal Resistance (Ohms)
    100
    Connector(s)
    Anderson, ST3
    36V 2A ST3 Charger
    Actual Weight (kg)
    0.36
    Connector(s)
    ST3
    Charge Port Connector
    ST3
    Charger Voltage
    36V (42.0V max)
    36V 4A ST3 Charger
    Actual Weight (kg)
    0.58
    Connector(s)
    ST3
    36V 2A XLR Charger
    Actual Weight (kg)
    0.5
    Connector(s)
    XLR
    Charge Port Connector
    3 Pin XLR
    Charger Voltage
    36V (42.0V max)
    36V 4A XLR Charger
    Actual Weight (kg)
    0.98
    Connector(s)
    XLR
    Charge Port Connector
    3 Pin XLR
    Charger Voltage
    36V (42.0V max)
    48V 4A ST3 Charger
    Actual Weight (kg)
    0.98
    Dimensions (L x W x H, mm)
    197x82x46
    Connector(s)
    ST3
    Charge Port Connector
    ST3
    Charger Voltage
    48V (54.6V max)
    48V 2A ST3 Charger
    Actual Weight (kg)
    0.56
    Dimensions (L x W x H, mm)
    169x71x40
    Connector(s)
    ST3
    Charge Port Connector
    ST3
    Charger Voltage
    48V (54.6V max)
    48V 2A XLR Charger
    Actual Weight (kg)
    0.5
    Connector(s)
    XLR
    Charge Port Connector
    3 Pin XLR
    Charger Voltage
    48V (54.6V max)
    52V 2A ST3 Charger
    Actual Weight (kg)
    .36
    Dimensions (L x W x H, mm)
    170x72x34
    Connector(s)
    ST3
    Charge Port Connector
    ST3
    Charger Voltage
    52V (58.8V max)
    52V 2A XLR Charger
    Actual Weight (kg)
    0.5
    Dimensions (L x W x H, mm)
    170x72x34
    Connector(s)
    XLR
    Charge Port Connector
    3 Pin XLR
    Charger Voltage
    52V (58.8V max)
    52V 4A XLR Charger
    Actual Weight (kg)
    0.88
    Dimensions (L x W x H, mm)
    170x72x34
    Connector(s)
    XLR
    Charge Port Connector
    3 Pin XLR
    Charger Voltage
    52V (58.8V max)
    52V 4A ST-3 Charger
    Actual Weight (kg)
    0.84
    Connector(s)
    ST3
    Satiator Upgrade with ST3 Adapter
    Actual Weight (kg)
    1.06
    12 Pole PAS with Chainring Mounted Magdisc
    PAS Poles
    12
    PAS Encoder Type
    2 Wire (Quadrature)
    12 Pole PAS with Spindle Mounted Magdisc
    Manufacturer
    King Meter
    Actual Weight (kg)
    0.12
    PAS Poles
    12
    PAS Encoder Type
    2 Wire (Quadrature)
    24 Pole PAS (Short 90cm Cable)
    Actual Weight (kg)
    .06
    Connector(s)
    JST-SM
    PAS Poles
    24
    PAS Encoder Type
    2 Wire (Quadrature)
    PAS_24P_Long
    Actual Weight (kg)
    .06
    Connector(s)
    JST-SM
    PAS Poles
    24
    PAS Encoder Type
    2 Wire (Quadrature)
    ERider83-T17 BB with 4 Arm Spider
    Actual Weight (kg)
    1.06
    Connector(s)
    Higo Signal C, JST-SM
    PAS Poles
    18
    PAS Encoder Type
    2 Wire (Quadrature)
    Torque Sensor Offset Voltage
    1.5V
    ERider83-T17 BB with 5 Arm Spider
    Actual Weight (kg)
    1.06
    Connector(s)
    Higo Signal C, JST-SM
    PAS Poles
    18
    PAS Encoder Type
    2 Wire (Quadrature)
    Torque Sensor Offset Voltage
    1.5V
    ERider83-T17 BB with 52T Chainring
    Actual Weight (kg)
    1.3
    Connector(s)
    Higo Signal C, JST-SM
    PAS Poles
    18
    PAS Encoder Type
    2 Wire (Quadrature)
    Torque Sensor Offset Voltage
    1.5V
    ERider100-T17 BB with 4 Arm Spider
    Actual Weight (kg)
    1.06
    Connector(s)
    Higo Signal C, JST-SM
    PAS Poles
    18
    PAS Encoder Type
    2 Wire (Quadrature)
    Torque Sensor Offset Voltage
    1.5V
    ERider100-T17 BB with 5 Arm Spider
    Actual Weight (kg)
    1.06
    Connector(s)
    Higo Signal C, JST-SM
    PAS Poles
    18
    PAS Encoder Type
    2 Wire (Quadrature)
    Torque Sensor Offset Voltage
    1.5V
    ERider100-T17 BB with 52T Chainring
    Actual Weight (kg)
    1.3
    Connector(s)
    Higo Signal C, JST-SM
    PAS Poles
    18
    PAS Encoder Type
    2 Wire (Quadrature)
    Torque Sensor Offset Voltage
    1.5V
    Handlebar Phone Mount and Charger
    Actual Weight (kg)
    0.165
    Minimum Input Voltage (V)
    12
    Max Input Voltage (V)
    95
    Connector / Jack
    5.5 x 2.1mm DC Jack
    Output Voltage
    5V
    Output Current (A)
    2
    C7 Plus, 3W 80 Lux Ebike Light
    Actual Weight (kg)
    .088
    Light Source
    OSRAM
    Minimum Input Voltage (V)
    6
    Max Input Voltage (V)
    58
    Peak Input Power (Watts)
    3
    Connector / Jack
    DC5.5x2.1
    SPL-01 1900 Lumen Ebike Light
    Actual Weight (kg)
    0.12
    Light Source
    Multiple LEDs
    Lumens Output
    1900
    Turn-On Voltage (reduced power)
    8
    Minimum Input Voltage (V)
    12
    Max Input Voltage (V)
    60
    Peak Input Power (Watts)
    20
    Connector / Jack
    DC 5.5x2.1mm
    Roxim Rear R1 ELight
    Actual Weight (kg)
    0.0690
    Light Source
    Red Cree XBD
    Lumens Output
    20
    Minimum Input Voltage (V)
    6
    Max Input Voltage (V)
    90
    Peak Input Power (Watts)
    5.5
    Connector / Jack
    DC 5.5x2.1mm
    Schwalbe Big Apple 26" Tire
    Actual Weight (kg)
    1.17
    Tire Width
    2.15
    Nominal Rim Size
    26" (ISO 559)
    More Information
    Product Attachments
    V5-7_Full_Scale_Drawing (58.36 kB)
    TA_V7_Manual_Rev1 (1.12 MB)
    Baserunner_Tube_Mount (39.22 kB)
    Cycle Analyst Version 3.1 User Manual, Rev1.2 (2.46 MB)
    Grin Downtube Battery User Manual (1.02 MB)
    36V 10Ah Bottle Battery Discharge Curves (52.27 kB)
    Battery Care Guide - Japanese(translated by a happy customer in Japan) (117.72 kB)
    Grin Downtube Battery User Manual (1.02 MB)
    Samsung 50G Cell Detailed Datasheet (2.21 MB)
    36V 14.5Ah Downtube Discharge Curves (44.17 kB)
    eZee 36V 14Ah Lithium Battery Manual (195.08 kB)
    Grin Downtube Battery User Manual (1.02 MB)
    Battery Care Guide - Japanese(translated by a happy customer in Japan) (117.72 kB)
    Grin Downtube Battery User Manual (1.02 MB)
    Samsung 50G Cell Detailed Datasheet (2.21 MB)
    36V 19Ah Downtube Discharge Curves (46.05 kB)
    eZee 36V 15Ah Lithium Battery Manual (395.21 kB)
    eZee 36V 14Ah Lithium Battery Manual (195.08 kB)
    36V 22Ah eZee Discharge Curves (45.69 kB)
    Grin Downtube Battery User Manual (1.02 MB)
    Samsung 50G Cell Detailed Datasheet (2.21 MB)
    36V 24Ah Downtube Discharge Curves (47.46 kB)
    Grin Downtube Battery User Manual (1.02 MB)
    Samsung 50G Cell Detailed Datasheet (2.21 MB)
    48V 14.5Ah Downtube Discharge Curves (45.29 kB)
    Battery Care Guide - Japanese(translated by a happy customer in Japan) (117.72 kB)
    eZee 48V 10Ah Lithium Battery Manual (196.63 kB)
    48V 15.5Ah eZee Discharge Curves (44.61 kB)
    Grin Downtube Battery User Manual (1.02 MB)
    Battery Care Guide - Japanese(translated by a happy customer in Japan) (117.72 kB)
    eZee 48V 10Ah Lithium Battery with Sony Konion Cells Manual (400.56 kB)
    eZee 48V 10Ah Lithium Battery Manual (196.63 kB)
    Grin Downtube Battery User Manual (1.02 MB)
    Samsung 50G Cell Detailed Datasheet (2.21 MB)
    48V 19Ah Downtube Discharge Curves (45.00 kB)
    Grin Downtube Battery User Manual (1.02 MB)
    52V 14.5Ah Downtube Discharge Curves (45.28 kB)
    Grin Downtube Battery User Manual (1.02 MB)
    52V 20Ah Downtube Discharge Curves (46.89 kB)
    Battery Care Guide - Japanese(translated by a happy customer in Japan) (117.72 kB)
    Grin Downtube Battery User Manual (1.02 MB)
    52V 23Ah Triangle Discharge Curves (43.74 kB)
    Grin Downtube Battery User Manual (1.02 MB)
    Samsung 50G Cell Detailed Datasheet (2.21 MB)
    52V 29Ah Downtube Discharge Curves (46.80 kB)
    Satiator User Manual for 1.0X Firmware (1.20 MB)
    Satiator Brochure (1.55 MB)
    Satiator Charger User Manual [PDF] (4.28 MB)
    TripWire Pull Specifications (426.56 kB)
    TripWire Push Short Specifications (425.65 kB)
    12 Pole PAS Specifications and Installation Guide (462.79 kB)
    12 Pole PAS Specifications and Installation Guide (462.79 kB)
    24 Pole PAS Specifications and Installation Guide (468.83 kB)
    24 Pole PAS Specifications and Installation Guide (468.83 kB)
    ERider T17 Installation Manual (896.13 kB)
    ERider T17 Installation Manual (896.13 kB)
    ERider T17 Installation Manual (896.13 kB)
    ERider T17 Installation Manual (896.13 kB)
    ERider T17 Installation Manual (896.13 kB)
    ERider T17 Installation Manual (896.13 kB)
    Roxim Rear Light Specifications (409.78 kB)
    USB->TTL Programming Cable Manual (1.33 MB)
