Rear All-Axle Dealer Kit

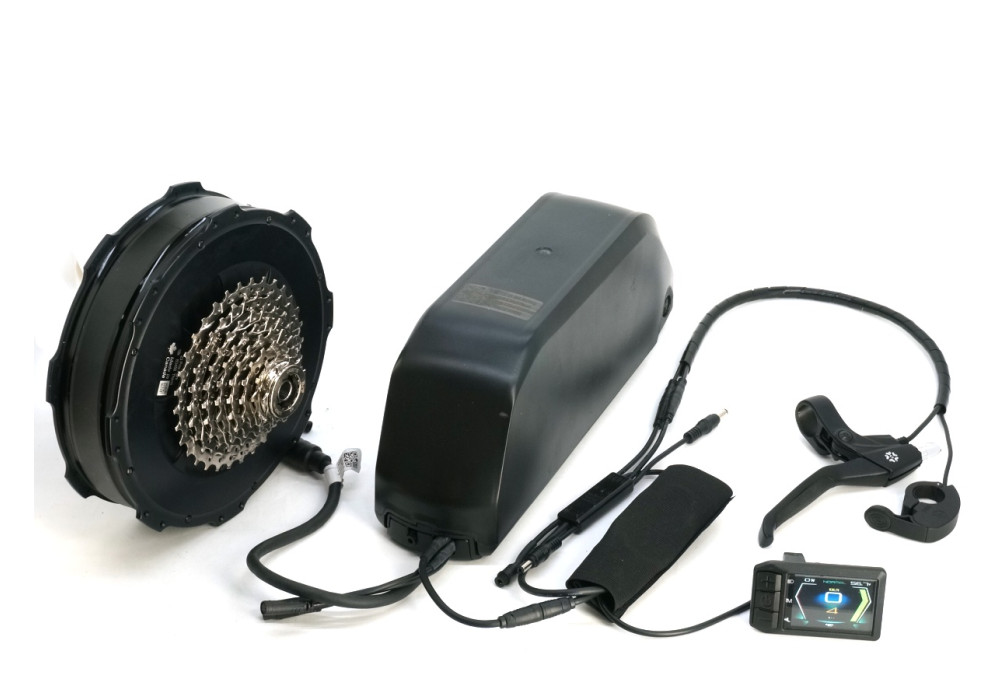

Grin's Rear All-Axle Conversion Kit with integrated torque sensor. Reduced option bundle package for ease of dealer purchase and sales.

Full Product Information Page



From USD$1,186.00

To USD$2,862.70

In stock

SKU
KIT-GrinR_Dealer
Add to Wish List Add to Compare
Customize Rear All-Axle Dealer Kit
V3 Rear Grin All-Axle Torque Arm Kit
V6 Baserunner_L10
6 Pin HiGo MiniB Extension Cable, 24cm
Main9 Superharness
Bidirectional Twist Throttle with HiGo 3 pin Connector Plug

* Required Fields

Your Customization
Motor Disk Side View
Rear All-Axle Dealer Kit

In stock

USD$1,186.00

Actual cruising speed/perfomance under any loading conditions is well modeled in our simulator.
Launch Motor Simulator with Rear All-Axle Dealer Kit

Summary

    Grin All-Axle rear hub motor is our fastest and easiest to install drive platform, with an integrated torque arm and adapters that accomodate every dropout standard. These systems come preconfigured so that no computer hookup is required; just unbox, install, and go.

    • Motor weighs just 4kg. Lightest direct drive motor in this class
    • Compatible with quick release and thru-axle dropouts
    • Installs with minimal fuss on almost any bike frame
    • Integrated torque sensor on cassette, for smooth proportional assist
    • Powerful regenerative braking from bidirectional twist throttle
    • Controller neatly hidden inside battery cradle for clean install
    Specifications
    V3 Rear All-Axle, Std HG
    Actual Weight (kg)
    4.3
    Manufacturer
    Grin
    Country of Manufacture
    Canada
    Motor Power Range (Watts)
    500-1000
    Motor KV (RPM / V)
    10.0
    Phase Resistance (Ohm)
    0.145
    Disk Brake Compatible
    Yes
    Connector(s)
    L1019
    Thermistor Style
    10K NTC, Beta ~3450
    Axle Length (O.L.D.)
    138
    Spoke Holes
    32 Hole
    Motor Type
    Direct Drive
    Flange Spoke Diameter (mm)
    214
    Magnetic Pole Pairs (Phaserunner)
    23
    Speedo Poles (for CA)
    23
    Hysteresis Losses (N-m)
    0.6
    Eddie Losses (N-m / rad/sec)
    0.005
    Motor Inductance (H)
    0.0006
    V3 Rear All-Axle, Slw HG
    Actual Weight (kg)
    4.3
    Manufacturer
    Grin
    Country of Manufacture
    Canada
    Motor Power Range (Watts)
    500-1000
    Motor KV (RPM / V)
    7.5
    Phase Resistance (Ohm)
    0.250
    Disk Brake Compatible
    Yes
    Connector(s)
    L1019
    Thermistor Style
    10K NTC, Beta ~3450
    Axle Length (O.L.D.)
    138
    Spoke Holes
    32 Hole
    Motor Type
    Direct Drive
    Flange Spoke Diameter (mm)
    214
    Magnetic Pole Pairs (Phaserunner)
    23
    Speedo Poles (for CA)
    23
    Hysteresis Losses (N-m)
    0.6
    Eddie Losses (N-m / rad/sec)
    0.005
    V3 Rear All-Axle, Slw XDR
    Actual Weight (kg)
    4.3
    Manufacturer
    Grin
    Country of Manufacture
    Canada
    Motor Power Range (Watts)
    500-1000
    Motor KV (RPM / V)
    7.5
    Phase Resistance (Ohm)
    0.250
    Disk Brake Compatible
    Yes
    Connector(s)
    L1019
    Thermistor Style
    10K NTC, Beta ~3450
    Axle Length (O.L.D.)
    138
    Spoke Holes
    32 Hole
    Motor Type
    Direct Drive
    Flange Spoke Diameter (mm)
    214
    Magnetic Pole Pairs (Phaserunner)
    23
    Speedo Poles (for CA)
    23
    Hysteresis Losses (N-m)
    0.6
    Eddie Losses (N-m / rad/sec)
    0.005
    V3 Rear All-Axle, Std XDR
    Actual Weight (kg)
    4.3
    Manufacturer
    Grin
    Country of Manufacture
    Canada
    Motor Power Range (Watts)
    500-1000
    Motor KV (RPM / V)
    10.0
    Phase Resistance (Ohm)
    0.145
    Disk Brake Compatible
    Yes
    Connector(s)
    L1019
    Thermistor Style
    10K NTC, Beta ~3450
    Axle Length (O.L.D.)
    138
    Spoke Holes
    32 Hole
    Motor Type
    Direct Drive
    Flange Spoke Diameter (mm)
    214
    Magnetic Pole Pairs (Phaserunner)
    23
    Speedo Poles (for CA)
    23
    Hysteresis Losses (N-m)
    0.6
    Eddie Losses (N-m / rad/sec)
    0.005
    Motor Inductance (H)
    0.0006
    7 Speed Cassette, 11-32 Tooth
    Country of Manufacture
    Taiwan
    Actual Weight (kg)
    0.226
    Cluster Type
    Freehub Cluster
    Number of Speeds
    7
    Gear Range
    11-32
    Stack Height (mm)
    34
    8 Speed Cassette, 11-32 Tooth
    Country of Manufacture
    Taiwan
    Actual Weight (kg)
    0.286
    Cluster Type
    Freehub Cluster
    Number of Speeds
    8
    Gear Range
    11-32
    Stack Height (mm)
    39
    9 Speed Cassette, 11-32 Tooth
    Country of Manufacture
    Taiwan
    Actual Weight (kg)
    0.364
    Cluster Type
    Freehub Cluster
    Number of Speeds
    9
    Gear Range
    11-32
    Stack Height (mm)
    41
    10 Speed Cassette, 11-32 Tooth
    Country of Manufacture
    Taiwan
    Actual Weight (kg)
    0.364
    Cluster Type
    Freehub Cluster
    Number of Speeds
    10
    Gear Range
    11-32
    Stack Height (mm)
    41
    Rim16_ZAC19_32H
    Actual Weight (kg)
    0.64
    Rim Width (mm)
    25
    Spoke Holes
    32 Hole
    Nominal Rim Size
    16" (ISO 349)
    Rim ERD
    332
    Rim Brake Compatible
    Yes
    Valve Type
    Presta, Schrader
    Rim20_ZAC19_32H
    Actual Weight (kg)
    0.42
    Rim Width (mm)
    24
    Spoke Holes
    32 Hole
    Nominal Rim Size
    20" (ISO 406)
    Rim ERD
    394
    Rim Brake Compatible
    Yes
    Valve Type
    Presta, Schrader
    Rim20_Alex_32H
    Country of Manufacture
    China
    Actual Weight (kg)
    0.48
    Rim Width (mm)
    32
    Spoke Holes
    32 Hole
    Nominal Rim Size
    20" (ISO 406)
    Rim ERD
    390
    Rim Brake Compatible
    Yes
    Valve Type
    Schrader
    Rim ID in Spoke Calculator
    20DM
    Rim20_Fat_32H
    Country of Manufacture
    China
    Actual Weight (kg)
    0.82
    Rim Width (mm)
    65
    Spoke Holes
    32 Hole
    Nominal Rim Size
    20" (ISO 406)
    Rim ERD
    384
    Rim Brake Compatible
    No
    Valve Type
    Schrader
    Rim ID in Spoke Calculator
    20FAT
    Rim20_Fat90_32H
    Country of Manufacture
    China
    Actual Weight (kg)
    0.642
    Rim Width (mm)
    90
    Spoke Holes
    32 Hole
    Nominal Rim Size
    20" (ISO 406)
    Rim ERD
    399
    Rim Brake Compatible
    No
    Valve Type
    Schrader
    Rim ID in Spoke Calculator
    20FAT90
    Rim24_Alex_32H
    Country of Manufacture
    China
    Actual Weight (kg)
    0.64
    Rim Width (mm)
    32
    Spoke Holes
    32 Hole
    Nominal Rim Size
    24" (ISO 507)
    Rim ERD
    494
    Rim Brake Compatible
    Yes
    Valve Type
    Schrader
    Rim ID in Spoke Calculator
    24DM
    Rim24_Fat_32H
    Country of Manufacture
    China
    Actual Weight (kg)
    1.02
    Rim Width (mm)
    65
    Spoke Holes
    32 Hole
    Nominal Rim Size
    24" (ISO 507)
    Rim ERD
    485
    Rim Brake Compatible
    No
    Valve Type
    Schrader
    Rim ID in Spoke Calculator
    24FAT
    Rim26_DM18_32H
    Country of Manufacture
    Taiwan
    Actual Weight (kg)
    0.53
    Rim Width (mm)
    24
    Spoke Holes
    32 Hole
    Nominal Rim Size
    26" (ISO 559)
    Rim ERD
    543
    Rim Brake Compatible
    Yes
    Valve Type
    Schrader
    Rim ID in Spoke Calculator
    26DM18
    Rim26_Alex_32H
    Country of Manufacture
    Taiwan
    Actual Weight (kg)
    0.76
    Rim Width (mm)
    32
    Spoke Holes
    32 Hole
    Nominal Rim Size
    26" (ISO 559)
    Rim ERD
    544
    Rim Brake Compatible
    Yes
    Valve Type
    Schrader
    Rim ID in Spoke Calculator
    26DM
    Rim26_Fat_32H
    Country of Manufacture
    China
    Actual Weight (kg)
    1.06
    Rim Width (mm)
    65
    Spoke Holes
    32 Hole
    Nominal Rim Size
    26" (ISO 559)
    Rim ERD
    537
    Rim Brake Compatible
    No
    Valve Type
    Schrader
    Rim ID in Spoke Calculator
    26FAT
    Rim26_Fat80_32H
    Actual Weight (kg)
    .830
    Rim Width (mm)
    80
    Spoke Holes
    32 Hole
    Nominal Rim Size
    26" (ISO 559)
    Rim ERD
    542
    Rim Brake Compatible
    No
    Rim ID in Spoke Calculator
    26FAT80
    Rim275_DM30_32H
    Country of Manufacture
    China
    Actual Weight (kg)
    0.76
    Rim Width (mm)
    30
    Spoke Holes
    32 Hole
    Nominal Rim Size
    650B (ISO 584)
    Rim ERD
    571
    Rim Brake Compatible
    Yes
    Valve Type
    Schrader
    Rim ID in Spoke Calculator
    650DM
    Rim700_DM18_32H
    Country of Manufacture
    China
    Actual Weight (kg)
    0.6
    Rim Width (mm)
    24
    Spoke Holes
    32 Hole
    Nominal Rim Size
    700C (ISO 622)
    Rim ERD
    607
    Rim Brake Compatible
    Yes
    Valve Type
    Schrader
    Rim ID in Spoke Calculator
    700DM18
    Rim700_Alex_32H
    Country of Manufacture
    China
    Actual Weight (kg)
    0.80
    Rim Width (mm)
    32
    Spoke Holes
    32 Hole
    Nominal Rim Size
    700C (ISO 622)
    Rim ERD
    606
    Rim Brake Compatible
    Yes
    Valve Type
    Schrader
    Rim ID in Spoke Calculator
    700DM
    V6 Baserunner_L10
    Manufacturer
    Grin
    Country of Manufacture
    Canada
    Dimensions (L x W x H, mm)
    90 x 55 x 15
    Actual Weight (kg)
    0.18
    Max Regen Voltage (V)
    60
    Max Battery Amps (A)
    35
    Max Phase Amps (A)
    80
    Battery Range (V)
    20-60
    Low Voltage Cutoff (V)
    Programmable
    Connector(s)
    Higo 0812(WP8), Higo Signal C, Mains D1109
    36V 14.5Ah DT, 21700A,40A BMS
    Actual Weight (kg)
    3.15
    Dimensions (L x W x H, mm)
    365x100x105
    Country of Manufacture
    China
    Battery Mount Location
    Frame Mount
    Nominal Voltage
    36 Volt (10s)
    Full Charge Voltage
    42.0
    Capacity (Amp-Hours)
    14.5
    Cell Type
    Samsung INR21700-50G 10S x 3P
    Connector(s)
    Anderson, DT_4pinSpade, ST3
    36V 19Ah Downtube Battery
    Actual Weight (kg)
    4.02
    Dimensions (L x W x H, mm)
    365x95x100
    Country of Manufacture
    China
    Battery Mount Location
    Frame Mount
    Nominal Voltage
    36 Volt (10s)
    Full Charge Voltage
    42.0
    Capacity (Amp-Hours)
    19.25
    Cell Type
    Samsung INR21700-50G 10S x 4P
    Connector(s)
    Anderson, DT_4pinSpade, ST3
    36V 24Ah Downtube Battery
    Actual Weight (kg)
    4.8
    Dimensions (L x W x H, mm)
    365x95x124
    Country of Manufacture
    China
    Battery Mount Location
    Frame Mount, Rear Rack
    Nominal Voltage
    36 Volt (10s)
    Full Charge Voltage
    42
    Capacity (Amp-Hours)
    24
    Cell Type
    Samsung INR21700-50G 10S x 5P
    Internal Resistance (Ohms)
    0.80
    Connector(s)
    Anderson, ST3
    48V 14.5Ah Downtube Battery
    Actual Weight (kg)
    4.0
    Dimensions (L x W x H, mm)
    365x100x105
    Country of Manufacture
    China
    Battery Mount Location
    Frame Mount
    Nominal Voltage
    48 Volt (13s)
    Full Charge Voltage
    54.5
    Cell Type
    Samsung INR21700-50G 13S x 3P
    Connector(s)
    Anderson, DT_4pinSpade
    48V-19Ah,DT,Reention,21700A
    Actual Weight (kg)
    4.9
    Dimensions (L x W x H, mm)
    365x100x124
    Country of Manufacture
    China
    Battery Mount Location
    Frame Mount
    Nominal Voltage
    48 Volt (13s)
    Full Charge Voltage
    54.6
    Capacity (Amp-Hours)
    19
    Cell Type
    Samsung INR21700-50G 13S x 4P
    Internal Resistance (Ohms)
    0.12
    Connector(s)
    Anderson, ST3
    36V 2A ST3 Charger
    Country of Manufacture
    China
    Actual Weight (kg)
    0.36
    Charger Current (A)
    2.0
    Connector(s)
    ST3
    Charge Port Connector
    ST3
    Charger Voltage
    36V (42.0V max)
    36V 4A ST3 Charger
    Country of Manufacture
    China
    Actual Weight (kg)
    0.58
    Charger Current (A)
    4.0
    Connector(s)
    ST3
    Charge Port Connector
    ST3
    Charger Voltage
    36V (42.0V max)
    48V 4A ST3 Charger
    Country of Manufacture
    China
    Actual Weight (kg)
    0.98
    Dimensions (L x W x H, mm)
    197x82x46
    Charger Current (A)
    4
    Connector(s)
    ST3
    Charge Port Connector
    ST3
    Charger Voltage
    48V (54.6V max)
    48V 2A ST3 Charger
    Country of Manufacture
    China
    Actual Weight (kg)
    0.56
    Dimensions (L x W x H, mm)
    169x71x40
    Charger Current (A)
    2
    Connector(s)
    ST3
    Charge Port Connector
    ST3
    Charger Voltage
    48V (54.6V max)
    Satiator Upgrade with ST3 Adapter
    Actual Weight (kg)
    1.06
    Charger Current (A)
    8
    C7 Plus, 3W 80 Lux Ebike Light
    Country of Manufacture
    China
    Actual Weight (kg)
    .088
    Light Source
    OSRAM
    Minimum Input Voltage (V)
    6
    Max Input Voltage (V)
    58
    Peak Input Power (Watts)
    3
    Connector / Jack
    DC5.5x2.1
    SPL-01 1900 Lumen Ebike Light
    Country of Manufacture
    China
    Actual Weight (kg)
    0.12
    Light Source
    Multiple LEDs
    Lumens Output
    1900
    Turn-On Voltage (reduced power)
    8
    Minimum Input Voltage (V)
    12
    Max Input Voltage (V)
    60
    Peak Input Power (Watts)
    20
    Connector / Jack
    DC 5.5x2.1mm
    Roxim Rear R1 ELight
    Country of Manufacture
    Taiwan
    Actual Weight (kg)
    0.0690
    Light Source
    Red Cree XBD
    Lumens Output
    20
    Minimum Input Voltage (V)
    6
    Max Input Voltage (V)
    90
    Peak Input Power (Watts)
    5.5
    Connector / Jack
    DC 5.5x2.1mm
    Handlebar Phone Mount and Charger
    Country of Manufacture
    China
    Actual Weight (kg)
    0.165
    Minimum Input Voltage (V)
    12
    Max Input Voltage (V)
    95
    Connector / Jack
    5.5 x 2.1mm DC Jack
    Output Voltage
    5V
    Output Current (A)
    2
    More Information
    Product Attachments
    V3 Rear All-Axle Motor, Dimensional Drawings [PDF] (633.39 kB)
    V3 Rear All-Axle Motor Owner Manual [PDF] (3.79 MB)
    V3 Rear All-Axle Motor, Dimensional Drawings [PDF] (633.39 kB)
    V3 Rear All-Axle Motor Owner Manual [PDF] (3.79 MB)
    V3 Rear All-Axle Motor, Dimensional Drawings [PDF] (633.39 kB)
    V3 Rear All-Axle Motor Owner Manual [PDF] (3.79 MB)
    V3 Rear All-Axle Motor, Dimensional Drawings [PDF] (633.39 kB)
    V3 Rear All-Axle Motor Owner Manual [PDF] (3.79 MB)
    V6 Baserunner User Manual (2.50 MB)
    Baserunner_Tube_Mount (39.22 kB)
    SW102C Display Details (reference from manufacturer, not a Grin manual and not everything applies) (1.93 MB)
    600C Display Details (reference from manufacturer, not a Grin manual and not everything applies) (3.65 MB)
    750C Display Details (reference from manufacturer, not a Grin manual and not everything applies) (3.58 MB)
    Superharness Manual [PDF] (1.92 MB)
    Grin Downtube Battery User Manual (1.02 MB)
    Samsung 50G Cell Detailed Datasheet (2.21 MB)
    36V 14.5Ah Downtube Discharge Curves (44.17 kB)
    Grin Downtube Battery User Manual (1.02 MB)
    Samsung 50G Cell Detailed Datasheet (2.21 MB)
    36V 19Ah Downtube Discharge Curves (46.05 kB)
    Grin Downtube Battery User Manual (1.02 MB)
    Samsung 50G Cell Detailed Datasheet (2.21 MB)
    36V 24Ah Downtube Discharge Curves (47.46 kB)
    Grin Downtube Battery User Manual (1.02 MB)
    Samsung 50G Cell Detailed Datasheet (2.21 MB)
    48V 14.5Ah Downtube Discharge Curves (45.29 kB)
    Grin Downtube Battery User Manual (1.02 MB)
    Samsung 50G Cell Detailed Datasheet (2.21 MB)
    48V 19Ah Downtube Discharge Curves (45.00 kB)
    Satiator User Manual for 1.0X Firmware (1.20 MB)
    Satiator CAD Model [IGS] (9.64 MB)
    Satiator Brochure (1.55 MB)
    Satiator Charger User Manual [PDF] (4.28 MB)
    Roxim Rear Light Specifications (409.78 kB)
    USB->TTL Programming Cable Manual (1.33 MB)
    Statorade Specifications (44.44 kB)
